Description

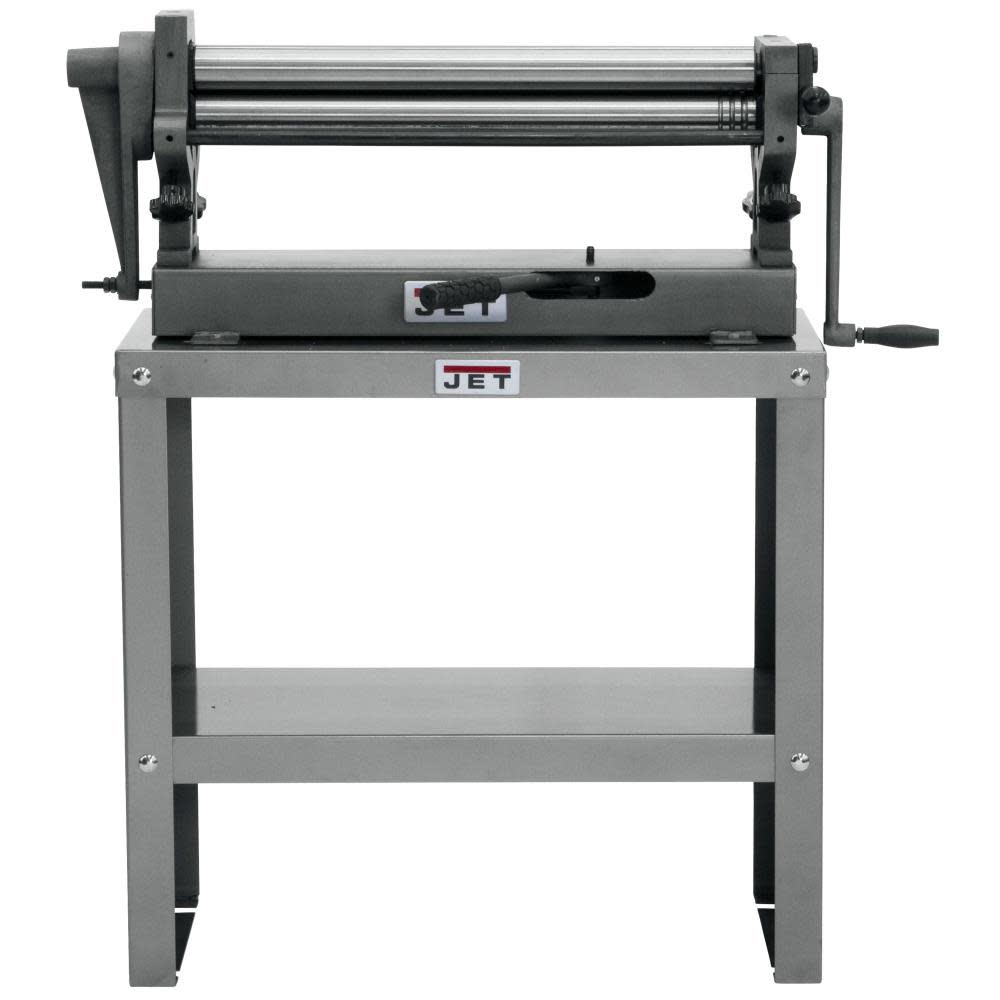

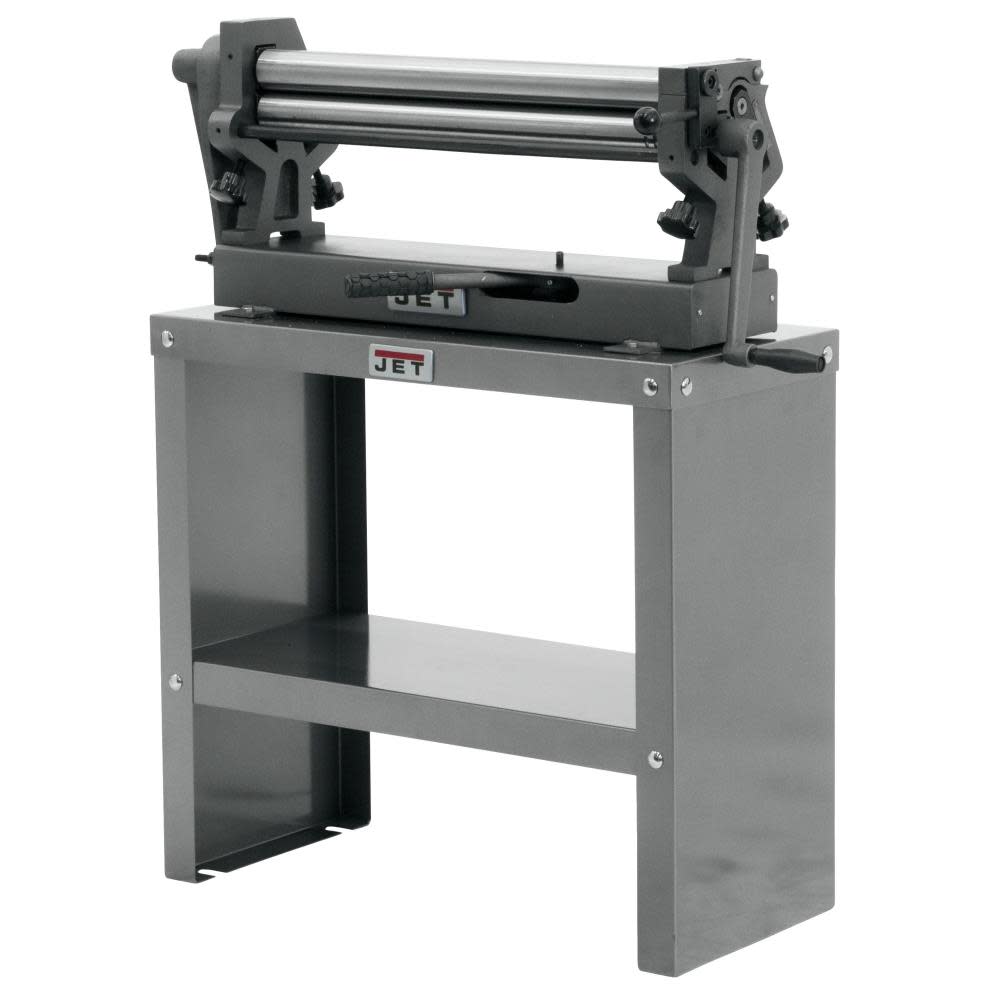

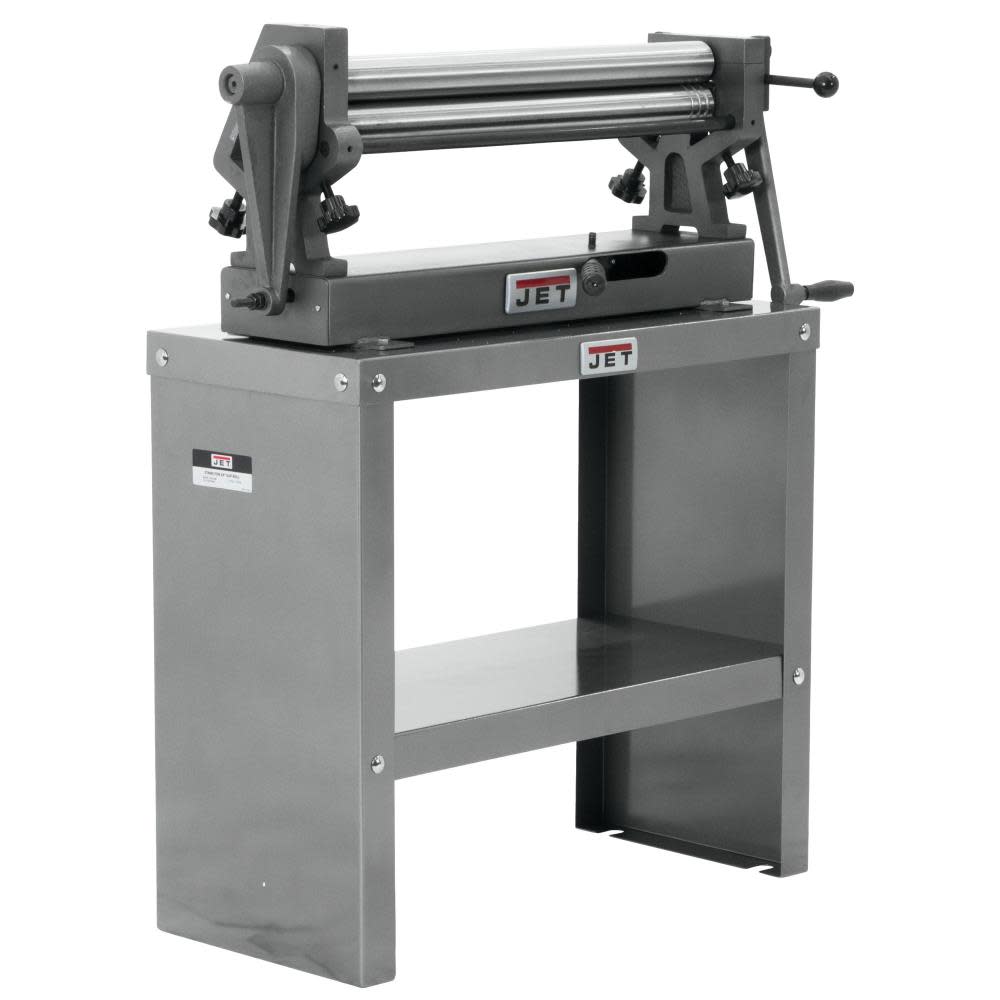

24″ X 20 Gauge Bench Model Slip Roll
Jet manual slip rolls have a forming width of 24”, 36” & 50” with a capacity of 20, 22 & 16 gauge mild steel. These machines have two driven rolls of precision turned, ground and polished carbon steel. They are the perfect sheet metal forming machines to have in any general fabrication, school, racing or HVAC shop. The highly rigid construction frame ensures precision roll bending for decades of production. This sheet metal roller comes standard with three wire or rod grooves.
Features
Perfect tool for sheet metal forming in HVAC and pro shops
Suitable for many industrial, educational and vocational shop uses
Precision turned carbon steel rolls that are ground and polished

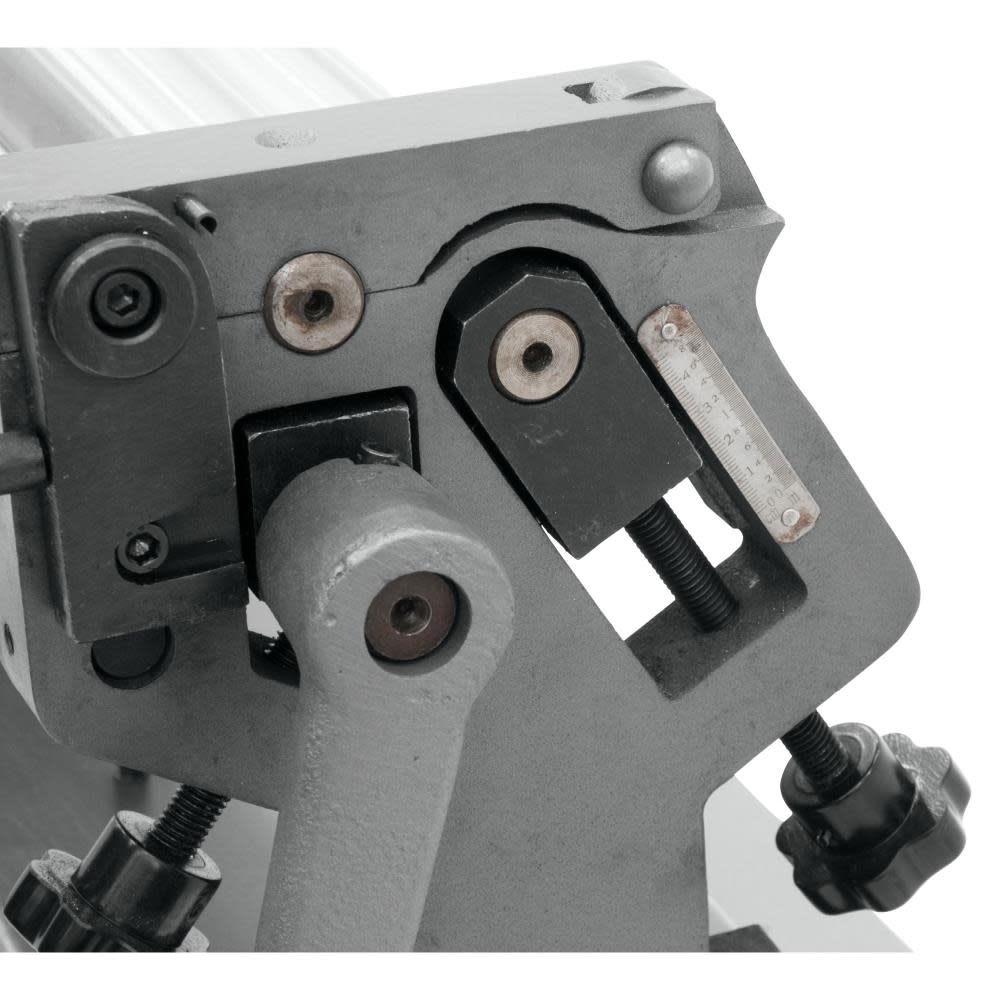

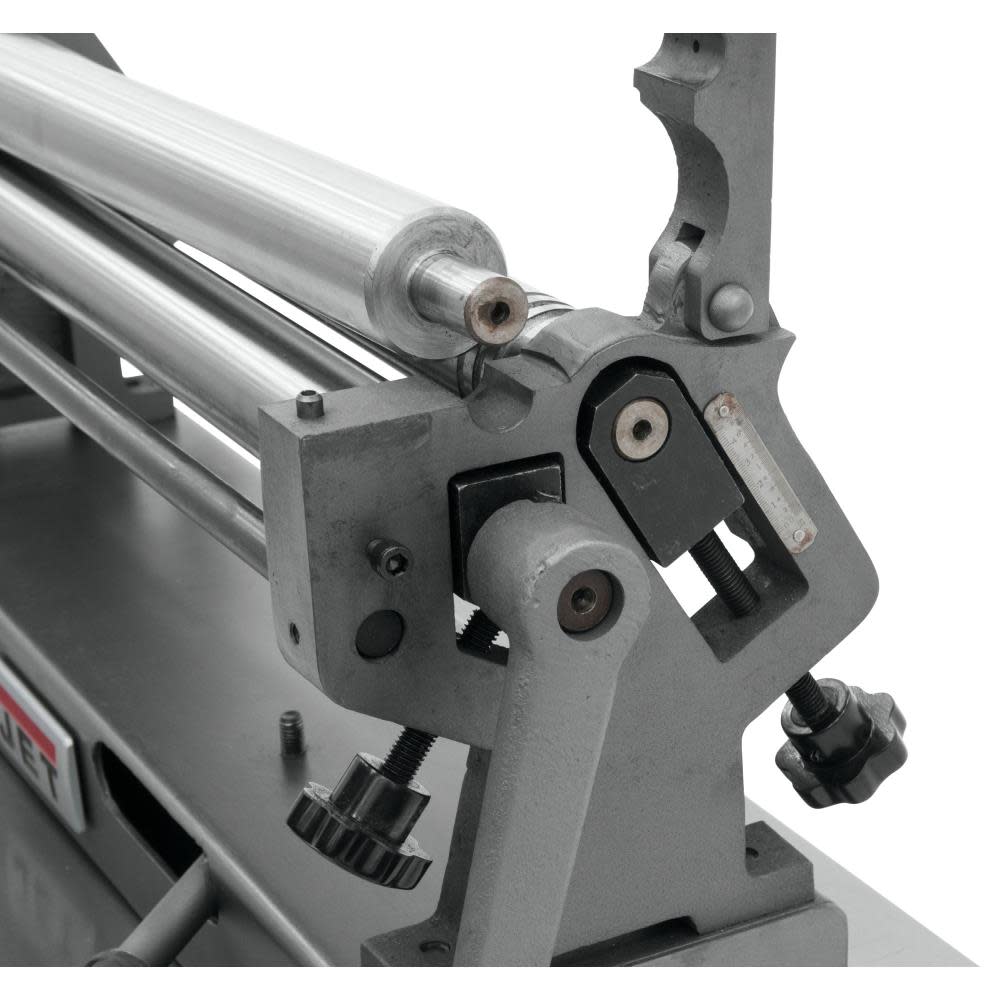

Large roll adjusting screws facilitate lifting upper roll for easy material removal
Wire grooves are standard on SR-2024N, SR-2236N and SR-1650N
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
756020
Assembled Weight (lbs)
216.0
California Proposition 65 Warning Required
Yes
Color / Finish
See image
Country of Origin
China
Gauge Capacity (ga)
20
Height (in)
14
Internet Product Code (IPC)
18D52D83D11
Length (in)
50
Manufacturer Warranty
2 year warranty
Material
steel
Maximum Width Capacity (in)
20
Number of Rollers
3
Package Contents
3 Rollers
Package Depth
36.5
Package Height
18.5
Package Weight
216
Package Weight (lbs)
216
Swivel Wheel
No
Weight (lbs)
126
Width (in)
14
Wire Grooves
Yes
