Description
20V MAX XR Cordless Cable Stripper Kit

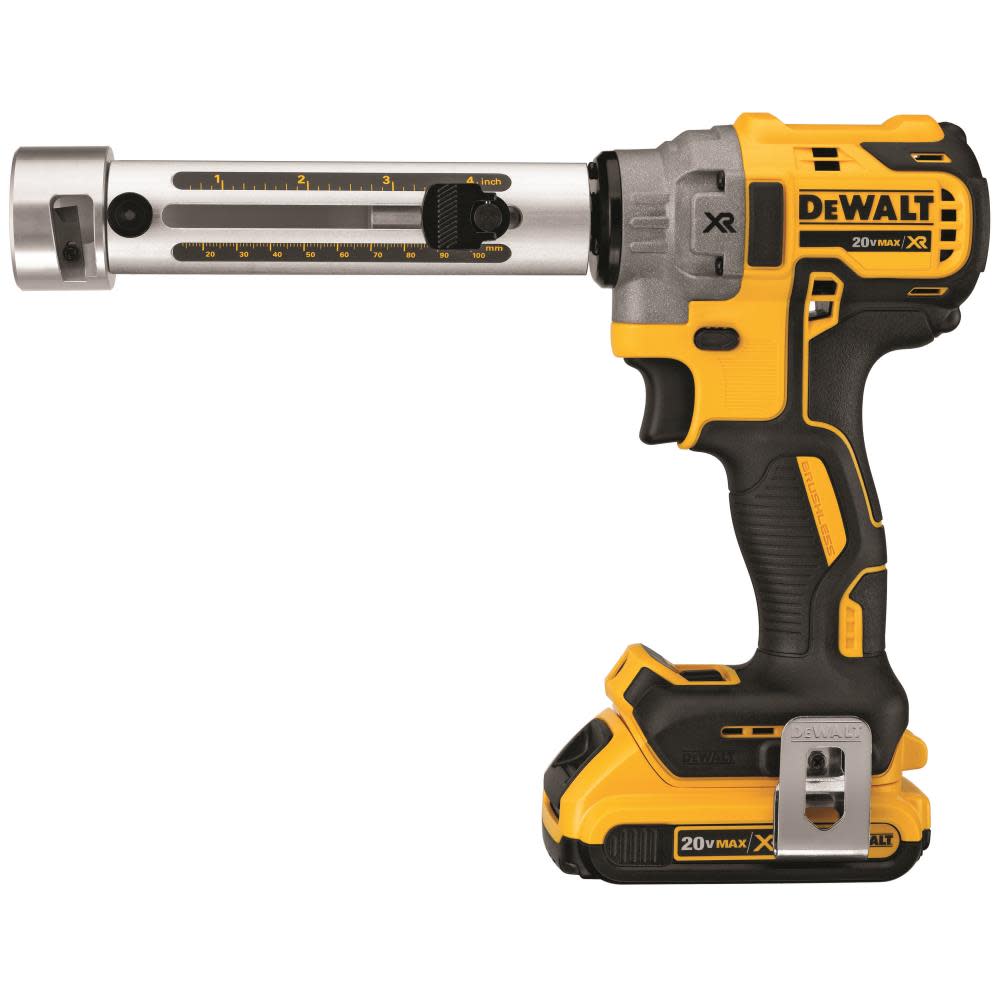

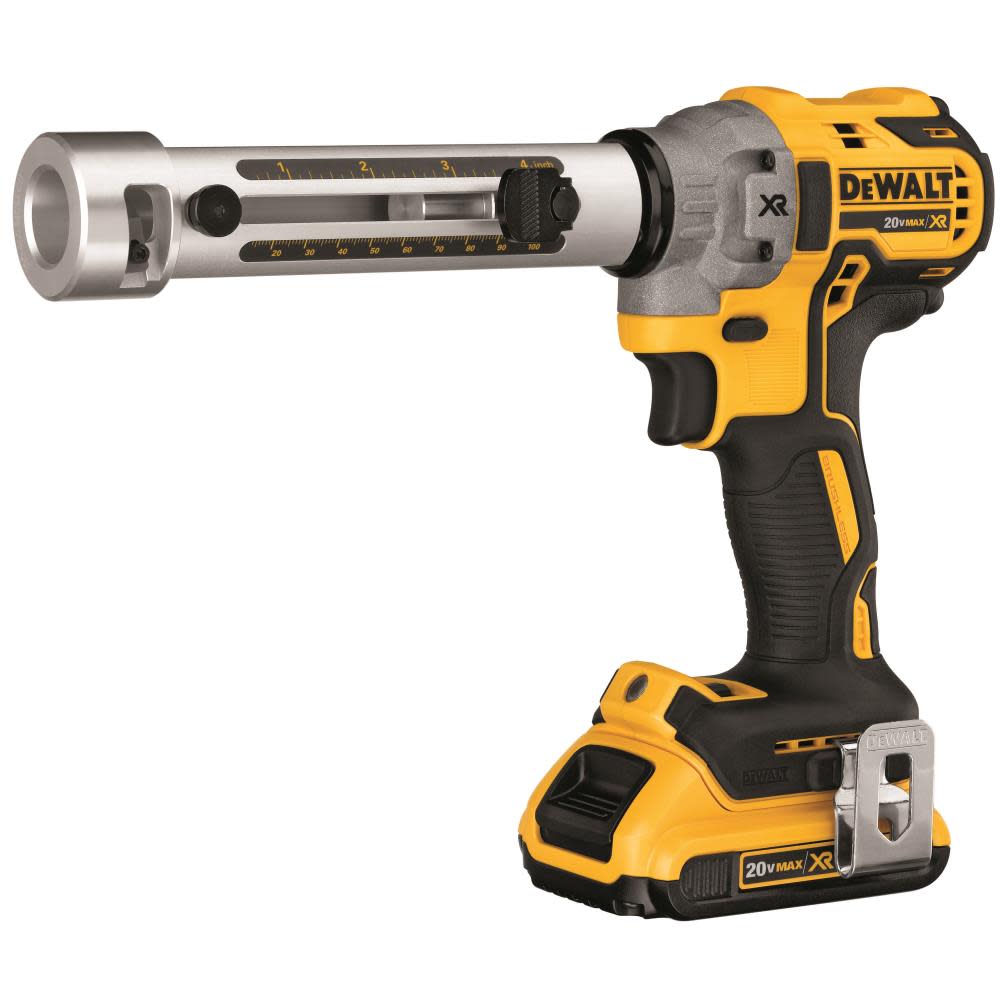

The DCE151TD1 20V MAX XR Cordless Cable Stripper is a dedicated, powered tool for consistently stripping THHN and XHHW cable up to 4-inch without the need of a knife. Using the appropriate bushing, the cordless Cable Stripper works on both copper and aluminum cable, covering a range in size from 6-AWG to 750MCM CU and 900MCM AL. To help determine which bushing is right for the job, DEWALT has a reference chart that is included in the manual as well as linked below. When selecting a bushing it is recommended that the bushing size above and below the recommended bushing also be selected as there can be variance in a specific brand of cable.
Features

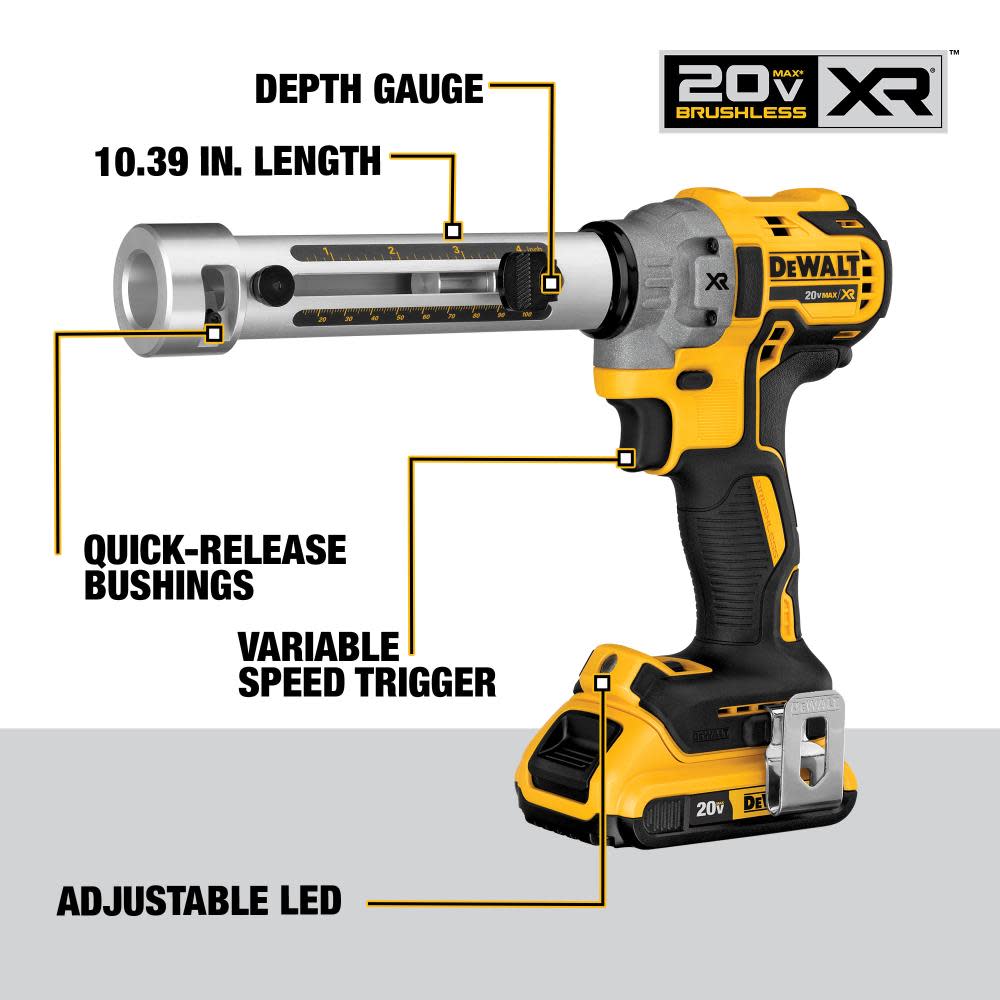

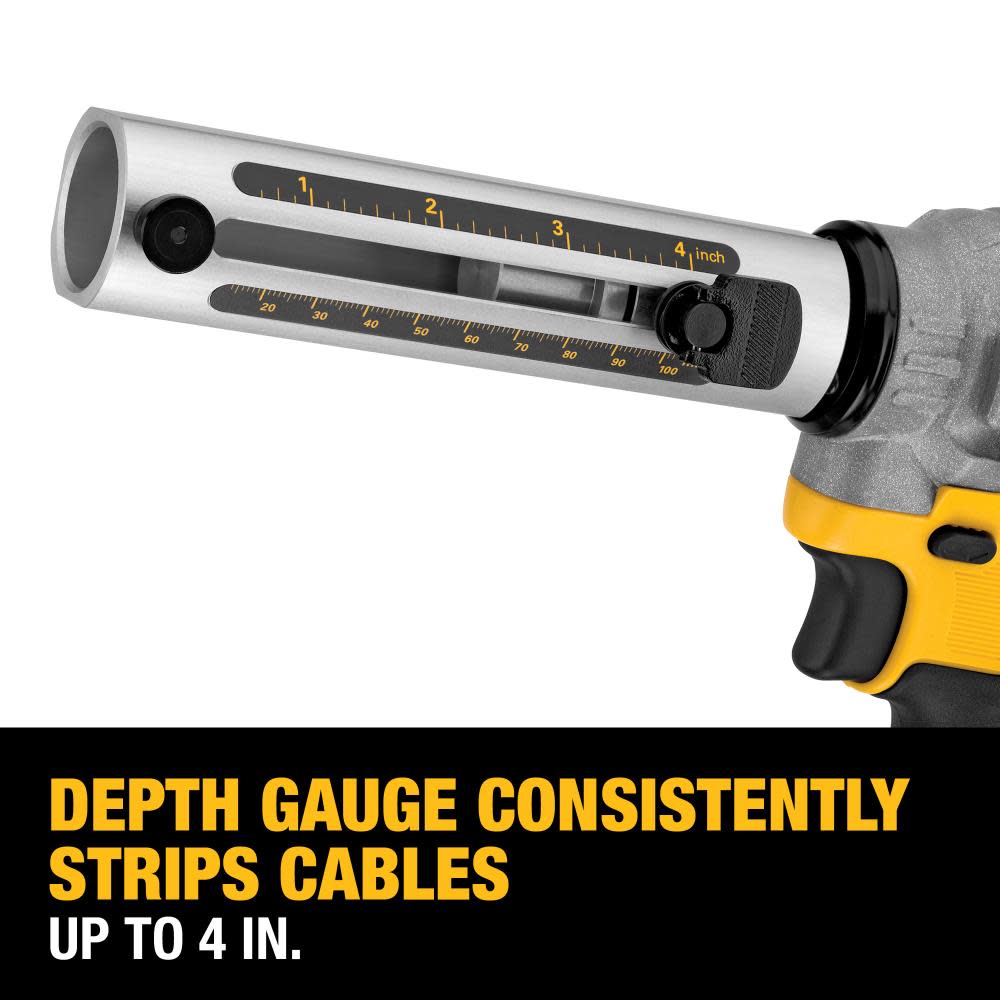

Depth gauge consistently strips cables up to 4-in
Strip #6 – 750-MCM Cu/Al Cable

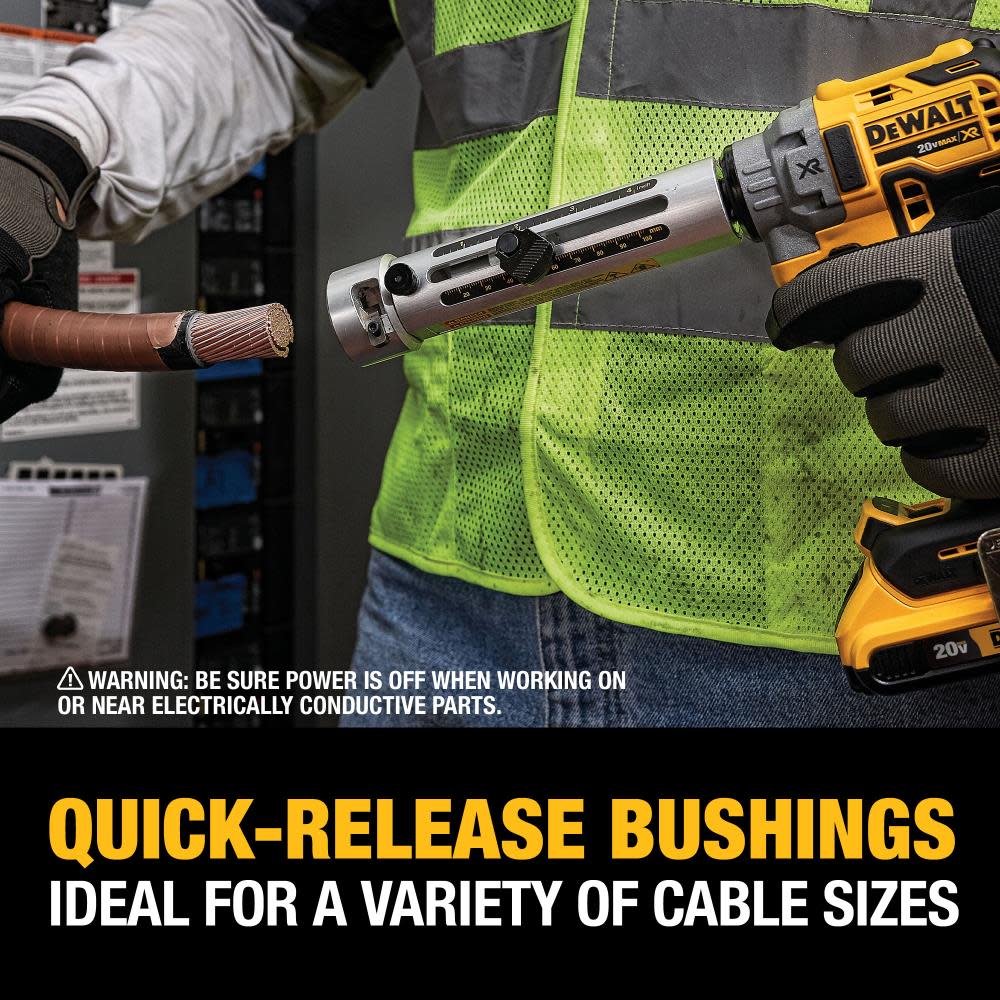

Included quick-release bushings allow you to quickly change bushings for each cable size

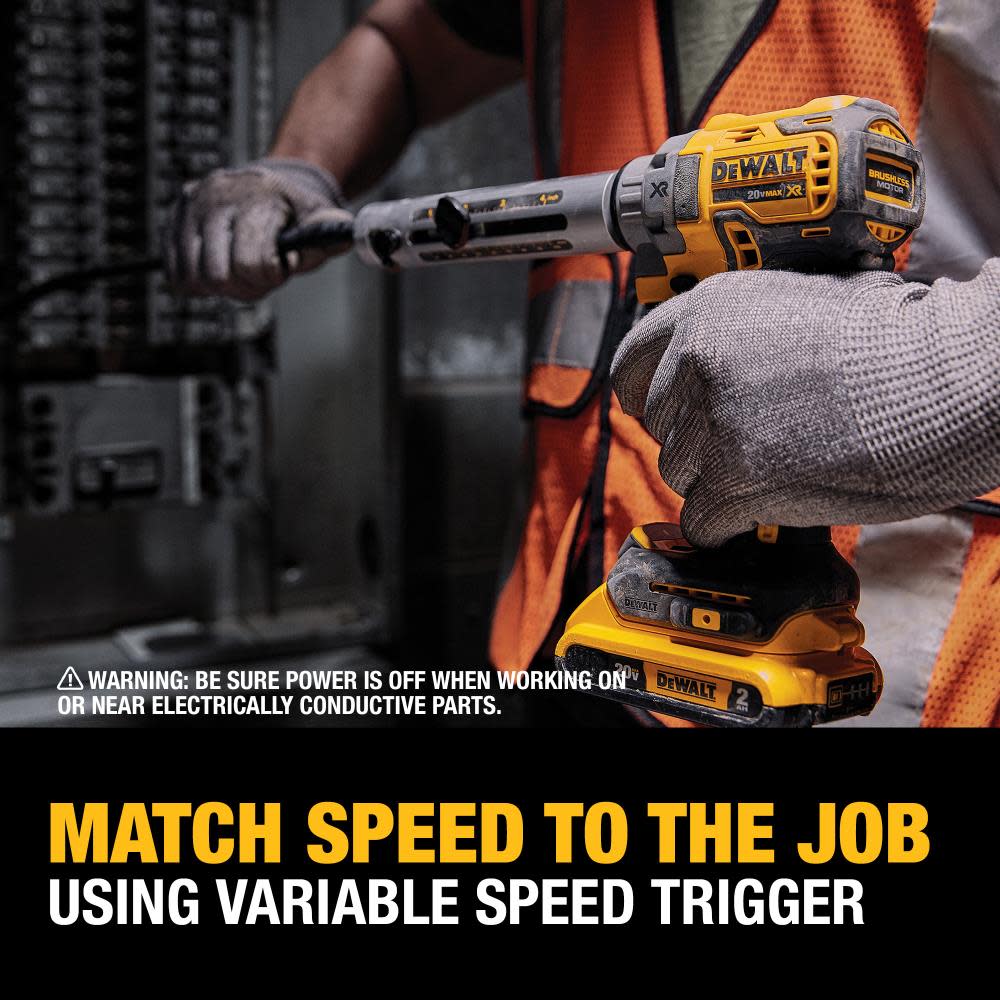

Variable speed trigger with reverse for speed control

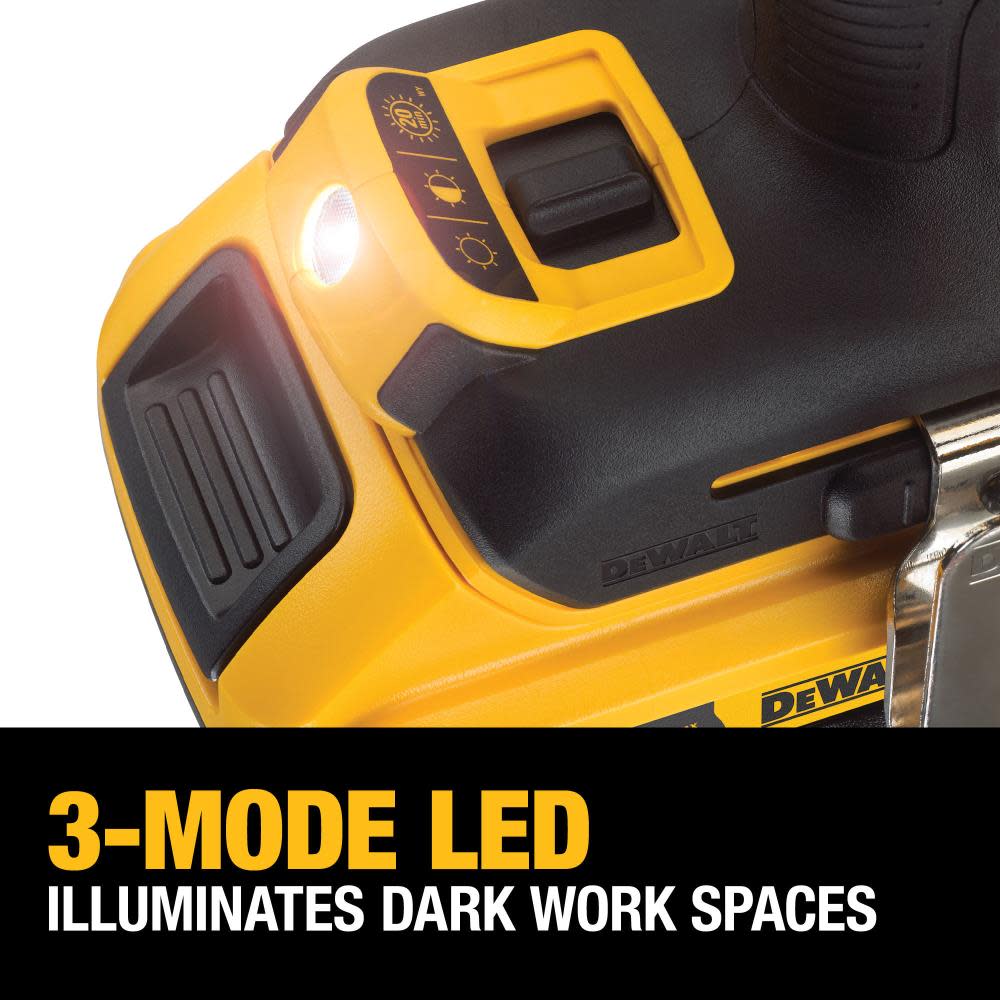

Adjustable onboard LED light helps to provide illumination in dark or low light situations

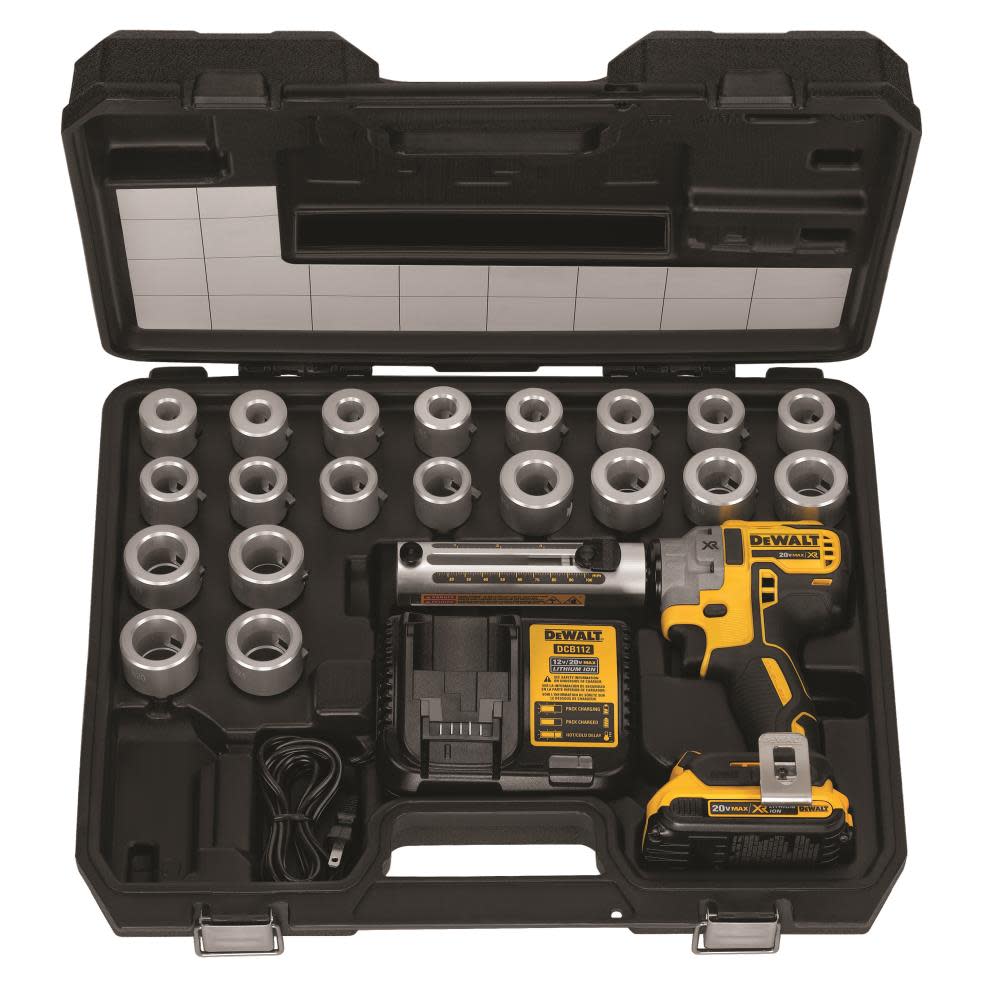

Kit box comes with convenient storage for tool, bushings, battery and charger

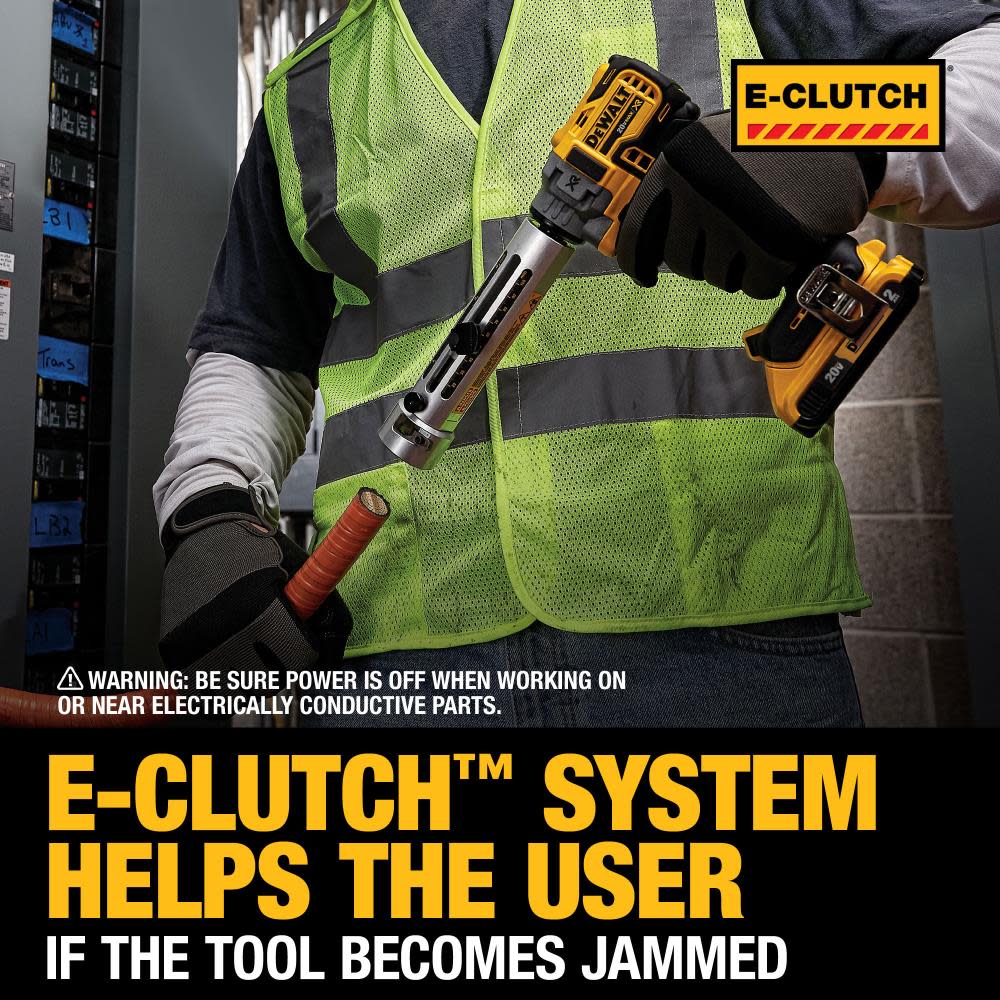

E-Clutch™ system helps the user maintain control of the tool if it becomes jammed
Using appropriate bushing, cable stripper works on both (THHN/XHHW) copper and aluminum cable, covering a range in size from 6-AWG to 750-MCM CU and 900-MCM AL
Kit box comes with convenient storage for tool, bushings, battery and charger
Specifications
Acme Tools Brand Name
DEWALT
Acme Tools Part Number
DCE151TD1
Assembled Weight (lbs)
2.4
Battery Composition
Lithium-Ion (Li-ion)
Battery Voltage (V)
20
California Proposition 65 Warning Required
Yes
Charger Included
Yes
Color / Finish
Yellow/Black
Cordless / Corded
Cordless
Country of Origin
China
Height (in)
6.95
Intended Cables/Rods To Be Cut
THHN CU/XHHW CU/THHN AL/XHHW AL
Internal Supplier Part #
DCE151TD1
Internet Product Code (IPC)
DFBBBB0674F
Length (in)
10.39
Manufacturer Warranty
3 year limited warranty/1 year free service contract/90 day money back guarantee
Material
Plastic
Number of Batteries Included
1
Number of Batteries Required
1
Package Contents

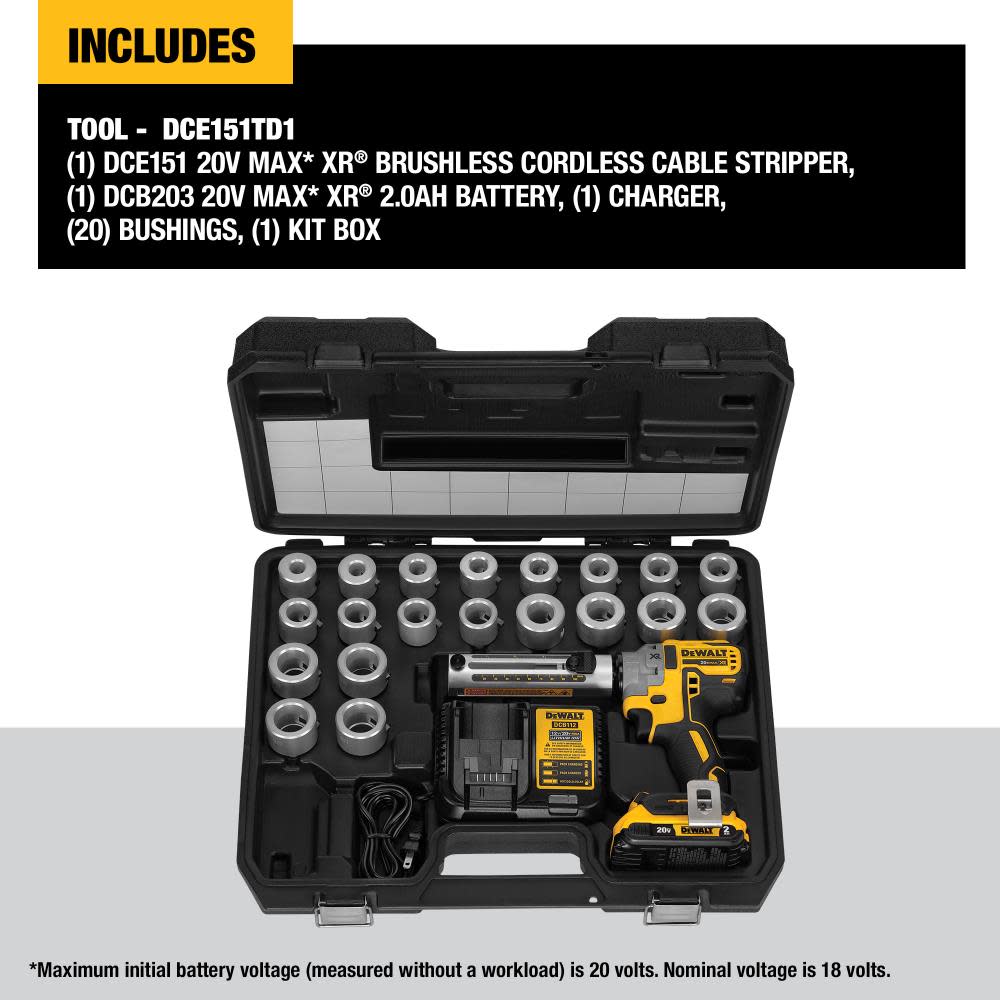

DCE151 Cable Stripper; (1) DCB203 2 Ah battery; Charger; Bushings DCE1511-DCE1527; Kit Box
Package Depth
18.500
Package Height
15.740
Package Weight
12.800
Package Weight (lbs)
12.8
Powered Tool Power Source
Electric – Cordless
Width (in)
2.5
