Description

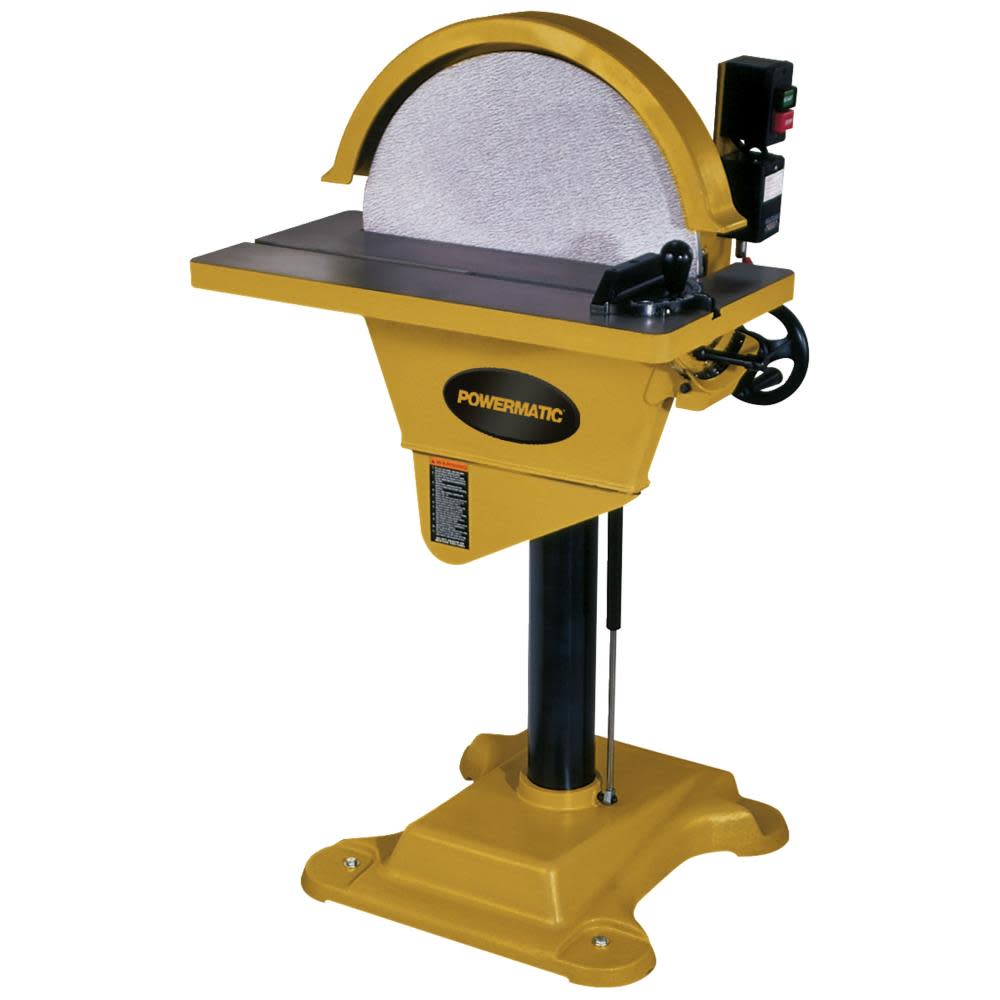

20″ Disc Sander, 2HP 1PH 230V
The DS20 20″ disc sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.
Features
Direct drive from motor to disc for maximum efficiency

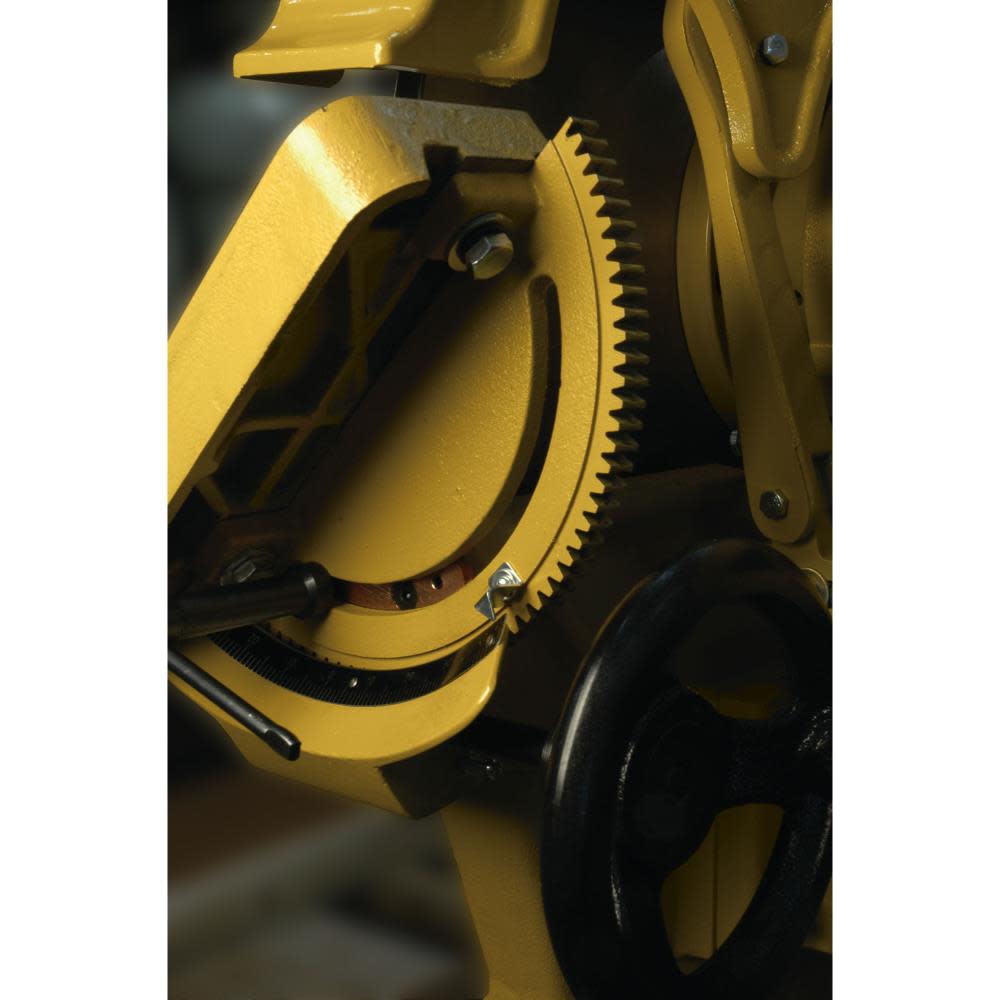

Tilting table allows bevel sanding

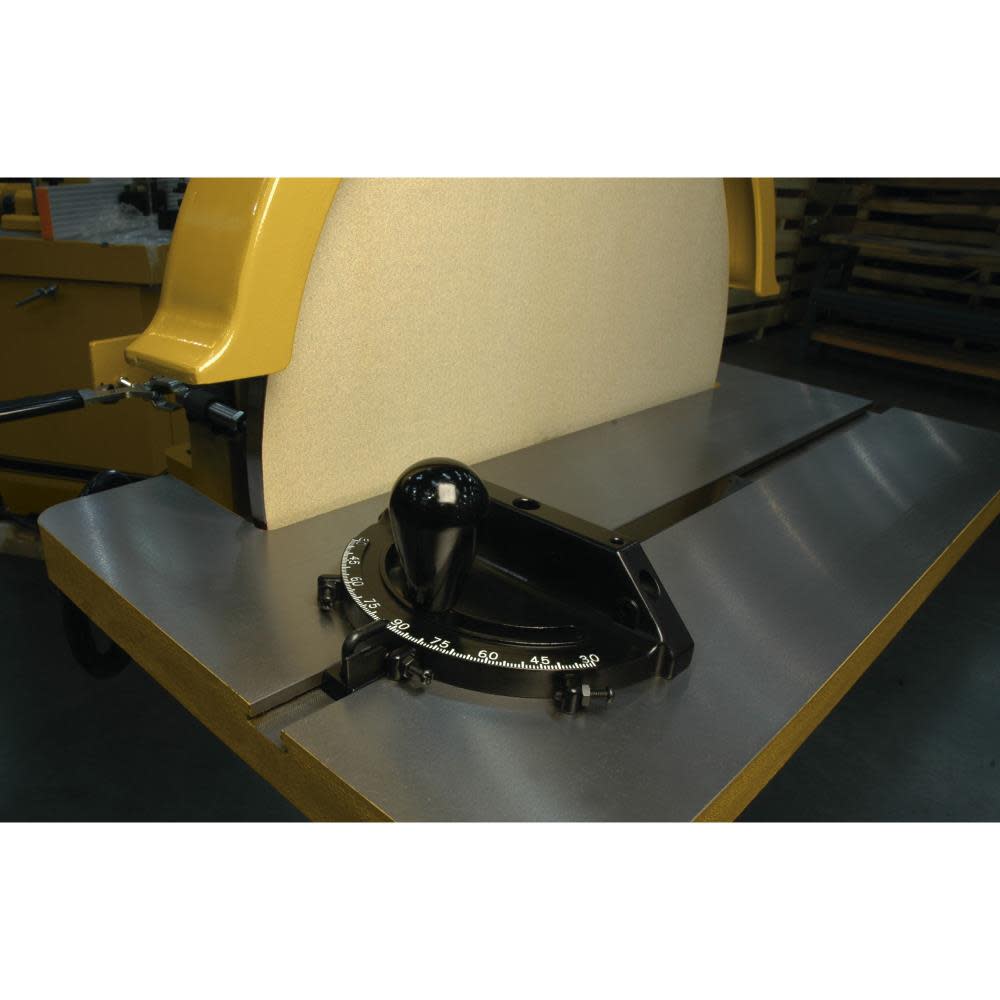

Miter gauge for angle sanding
20″ sanding disc for larger workpieces
4″ port for connection to any dust collection system
Cast iron base for rigidity
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791276
Amperage (A)
30
Assembled Weight (lbs)
426.0
Bench or Stationary
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
yellow
Cordless / Corded
Corded
Country of Origin
Taiwan
Disc Table Length (In)
10.5
Disc Table Width (In)
27.5
Dust Collection
Yes
ETL Listed
Yes
Horsepower (hp)
2
Internet Product Code (IPC)
D14E74164AC
Manufacturer Warranty
5 Year Warranty
Material
Cast Iron
Maximum Disc Speed (rpm)
1720
Net Tool Weight (lbs)
426.0
Package Weight
490.0
Package Weight (lbs)
490
Sander Style
Disc
Sanding Disc Diameter (in)
20
Table Height (in)
53.0
Table Material
Cast Iron
UL Listed
Yes
Voltage
230 Volts
