Description

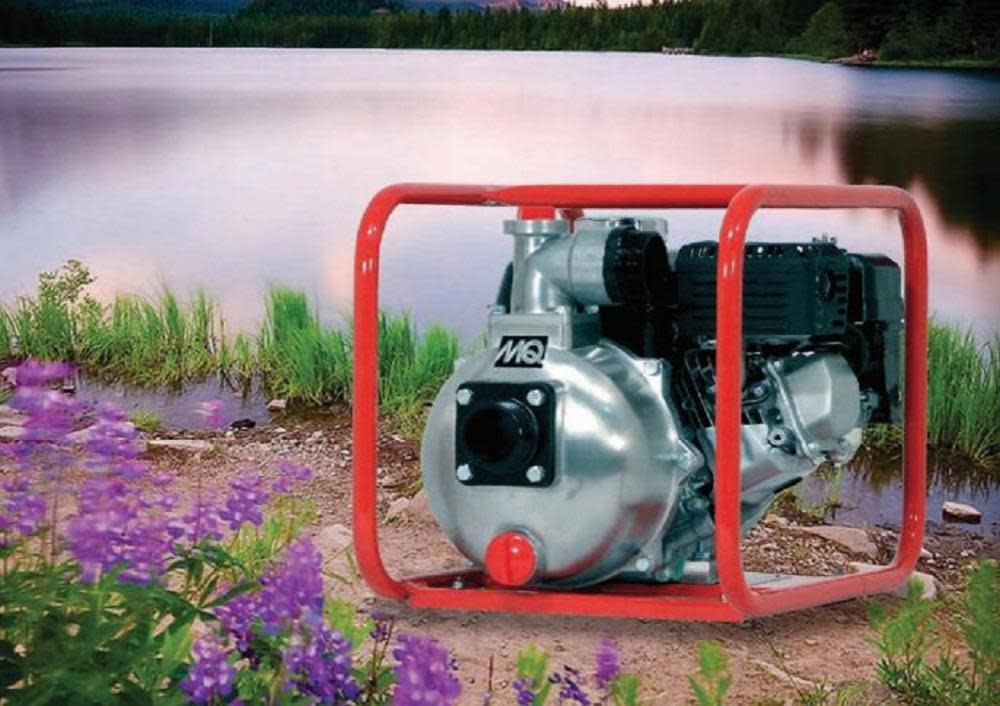

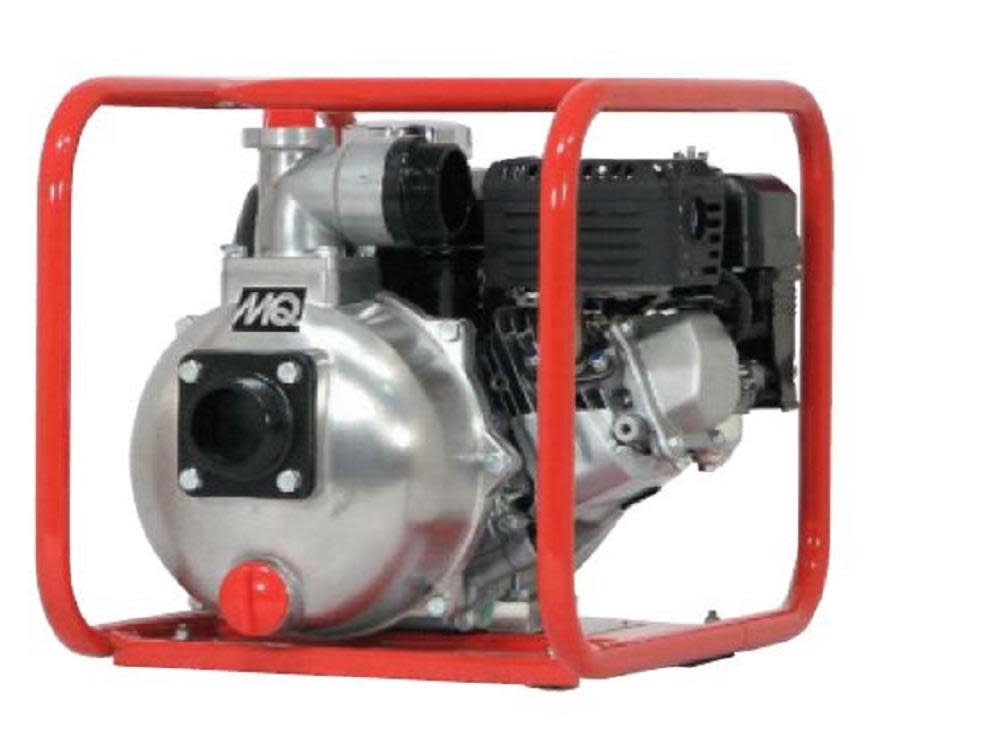

2 In. Water Pump with Honda GX120 Engine
This versatile centrifugal pump makes fast work of moving all types of clear water applications where there are limited solids (up to 10% of solids with a maximum solid size of 1/4 of the diameter of the pump ports.
Features
Perfect for construction, municipal and agricultural jobs
Maximum pumping capacity of 158 gallons (598 liters) per minute
Maximum lift of 25 feet (7.6 meters)
Powerful 3.5HP GX120 Honda gasoline engine
Discharge port easily rotates 180º for hose orientation
Engine oil-alert to protect the engine in the case of low engine oil
Aluminum body with cast-iron fittings
Tubular steel frame for transportation and pump protection
Cast iron impeller and volute for abrasion resistance/long life
Specifications
Acme Tools Brand Name
MULTIQUIP
Acme Tools Part Number
QP2H
Assembled Weight (lbs)
57
California Proposition 65 Warning Required
Yes
Country of Origin
Japan
Discharge Port (In)
2
Gallons Per Hour (gal)
8520
Internal Supplier Part #
QP2H
Internet Product Code (IPC)
5A0C8412B45
Manufacturer Warranty
2 Year Limited Manufacturer Warranty. See Owner’s Manual for Details.
Maximum PSI
49.8
Maximum Suction Lift (Ft)
25
Maximum Total Head (Ft)
115
Package Depth
19
Package Height
16
Package Weight
56
Package Weight (lbs)
65
Pump Body Material
Aluminum body with cast-iron fittings
Pump Motor Type
Honda GX120
Self Priming
Yes
Solid Handling (in)
0.25
Suction Port (in)
2
