Description

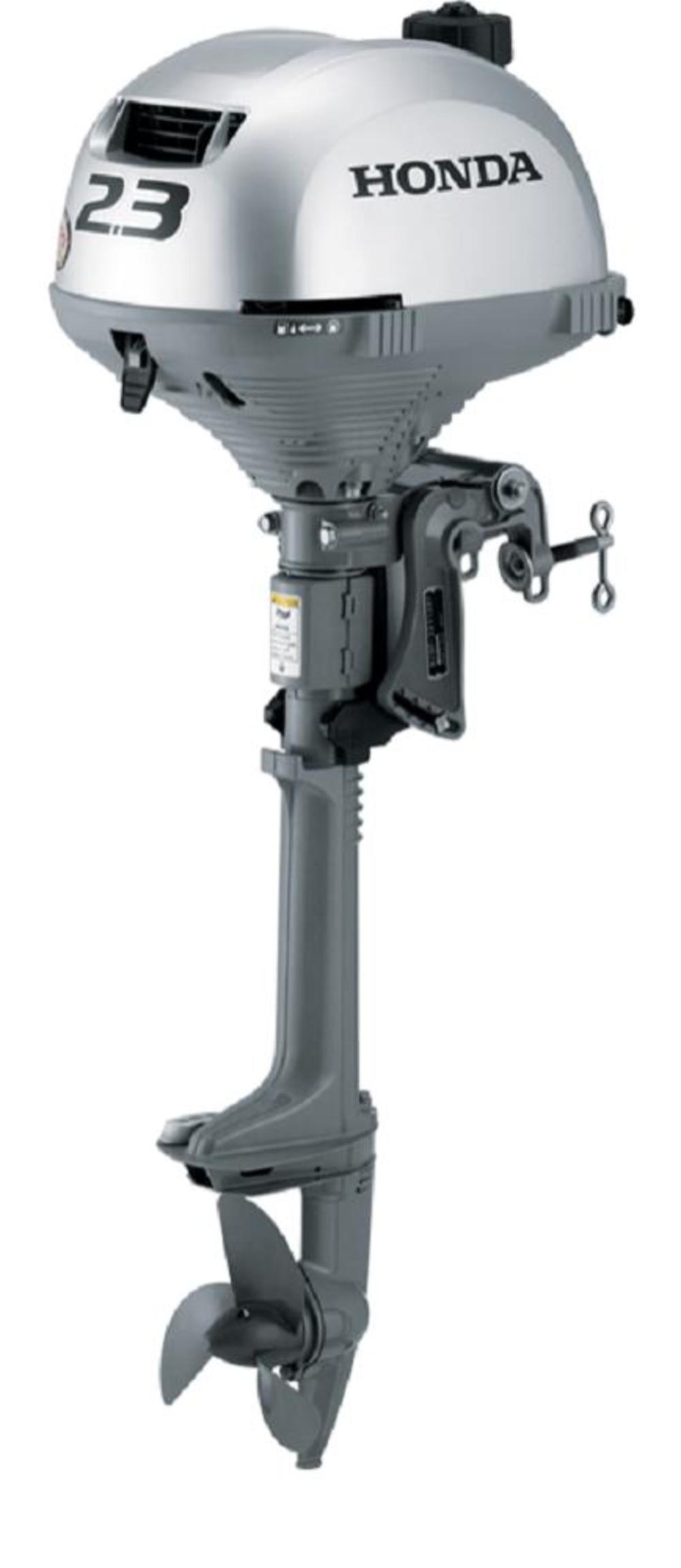

2.3 HP Portable Outboard Motor
The best things come in small packages. And thats especially true with Honda’s BF2.3, one of the worlds lightest four-stroke outboards. The BF2.3 is so light, it rivals many two-stroke 2 HP engines and electric motors, without the battery! But just because its lightweight doesnt mean we cut back on the power. The BF2.3 features 15% more power over its predecessor. Plus we added a 12% larger internal gas tank, which provides for about one hour of operation at wide open throttle. Its a technologically advanced design that gives you power and performance without sacrificing portability.
Features
Reliable, efficient 4-stroke design
With 15% more horsepower over its predecessor, this ultra light weight powerhouse produces surprising speed and maneuverability
The BF2.3 is incredibly light and easy to transport
Precise throttle control
Weighing less than 30 lbs, it’s the ideal engine for dinghys, car-toppers and other types of small boats
The air-cooled block eliminates concern over clogged water pumps and debris being sucked into the powerhead, as well as reducing maintenance
All Honda Marine engines exceed the highest CARB 3-star rating to meet the rigorous California air resource board’s standards
Maintenance-free, high-energy output for quick and easy starts
A front mounted carrying handle provides superior portability and ease of installation
Provides excellent maneuverability in tight areas as well as full thrust in reverse (at 180°)
The centrifugal clutch maintains a smooth idle and when advanced, automatically engages the prop above idle speed
Convenient fold down tiller
A patented, double sealed multi-layered paint process, sacrificial anodes, stainless steel technology, and waterproof connectors enhance corrosion protection
Internal fuel tank – easier portability
Easy maintenance
Steering friction adjustment
Adjustable trim
Allows you to run in shallow water and greatly reduces the risk of engine damage
A shock resistant plastic propeller comes standard
Carburetor drain screw for easy storage prep
Dual lockable transom clamps
Specifications
Acme Tools Brand Name
HONDA MARINE
Acme Tools Part Number
BF2.3DHSCH
Assembled Weight (lbs)
29
Bore Diameter (in)
1.8
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 0.29 Gal
CARB Compliant
Yes
Color
Silver
Color / Finish
Silver, Grey and Black
Country of Origin
Japan
Cylinder Count
1
Dry Weight (lbs)
29
Engine Displacement (in³)
3.49
Engine Oil Capacity (qt)
0.26
Engine Starting Method
Recoil
Fuel Tank Capacity (gal)
0.29
Gear Ratio
2.42:1
Horsepower (hp)
2
Installation Hardware Included
Yes
Installation Instructions Included
Yes
Internal Supplier Part #
BF2.3DHSCH
Internet Product Code (IPC)
529B58CD06C
Manufacturer Warranty
5 Year Limited Manufacturer Warranty. See Owner’s Manual for Details.
Model Year
2018
Overall Height (in)
44
Overall Length (in)
16.2
Overall Width (in)
11.2
Package Weight
35
Package Weight (lbs)
35
Recommended Use
Recommended Maximum Boat Length (ft)= 1
Shaft Length (in)
15
Stroke Length (in)
1.4
