Description

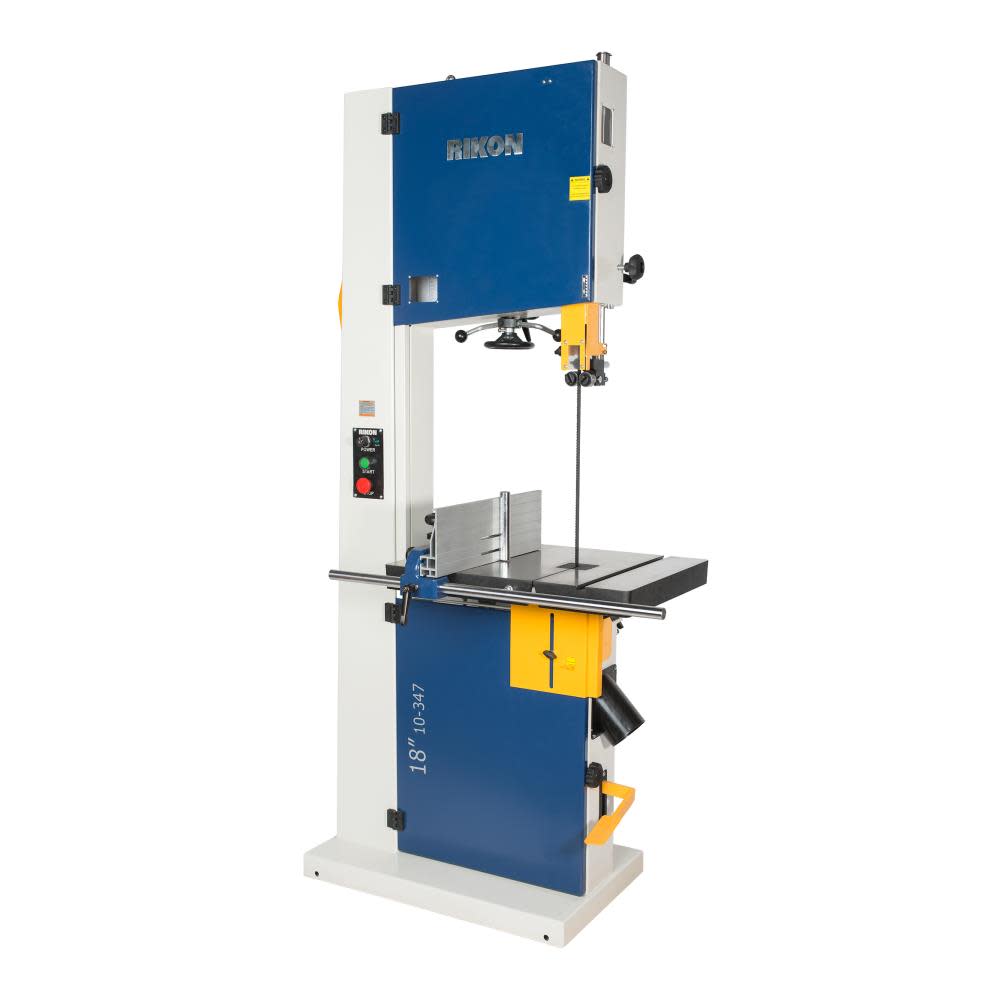

18 In. Professional Bandsaw 4.0 HP

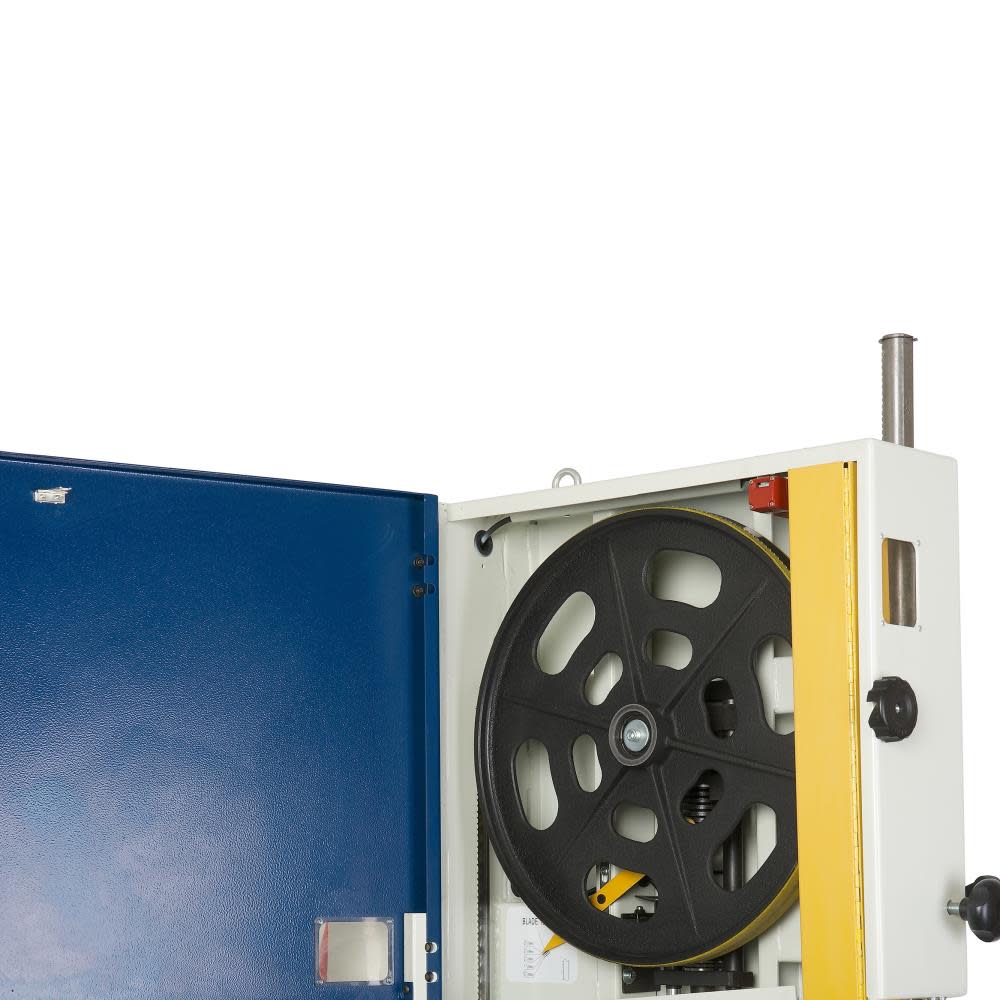

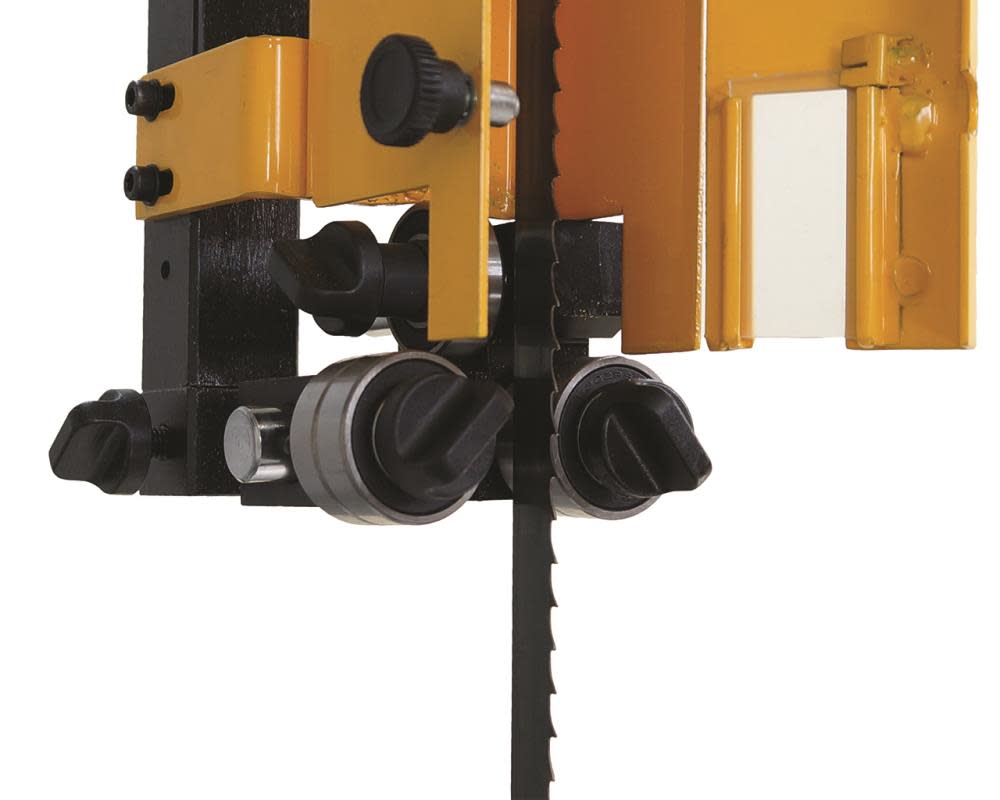

18 In. Bandsaw #10-347 has one of the most powerful motors in the line, 4 HP, which makes it ideal for woodworkers doing a lot of heavy re-saw work. Professional features include patent pending tool-less blade guides, massive cast iron table, geared cast table trunnion, substantial 6 In. high rip fence system, key activated safety on/off switch, micro safety on/off switch activated door & foot brake. Under the top door blade tension release levers with blade tension hand wheel are easy to access from the front of the saw.
Features
Rugged welded steel column and frame
Balanced cast iron drive wheels
Bandsaw capacity 19 In.
Emergency foot brake for safety
Specifications
Acme Tools Brand Name
RIKON
Acme Tools Part Number
10-347
Amperage (A)
16.0
Assembled Weight (lbs)
498.0
Band Saw Frame Material
Steel
Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color / Finish
Blue
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
China
Cutting Capacity Height (in)
19.0
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4.0
ETL Listed
Yes
Fence Included
Yes
Horsepower (hp)
4.0
Internal Supplier Part #
10-347
Internet Product Code (IPC)
BB264EA54DA
Manufacturer Warranty
5 Year
Material
Cast Iron
Maximum Blade Length (In)
162.0
Maximum Blade Width (In)
1.38
Maximum Feet Per Minute
4920.0
Maximum RPM
4920.0
Micro Adjust Blade Guides Bottom
No
Micro Adjust Blade Guides Top
No
Minimum Blade Length (in)
162.0
Minimum Blade Width (in)
0.25
Minimum Feet Per Minute
4920.0
Package Depth
34.875
Package Height
84.325
Package Weight
536
Package Weight (lbs)
536
Quick Tensioning System
Yes
Rack & Pinion Guide Post Adjustment
Yes
Saw Wheel Material
Cast Iron
Speeds
1
Table Height (in)
33.5
Table Height From Floor (In)
33.5
Table Length (in)
19.0
Table Material
Cast Iron
Table Tilt Right (Deg)
45.0
Table Width (in)
25.0
Thrust Bearing Contact Point
Edge
Tire Cleaning Brush
Yes
UL Listed
No
Variable Speed
No
Voltage
220 Volts
