Description

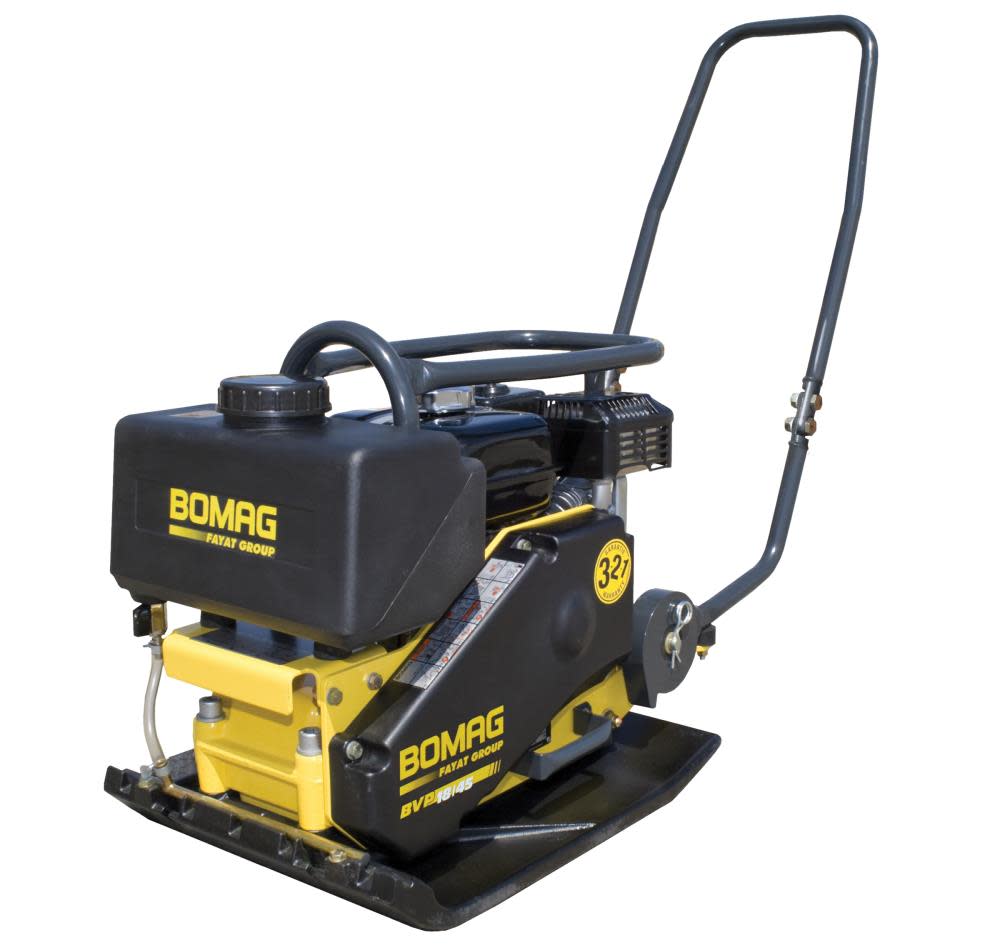

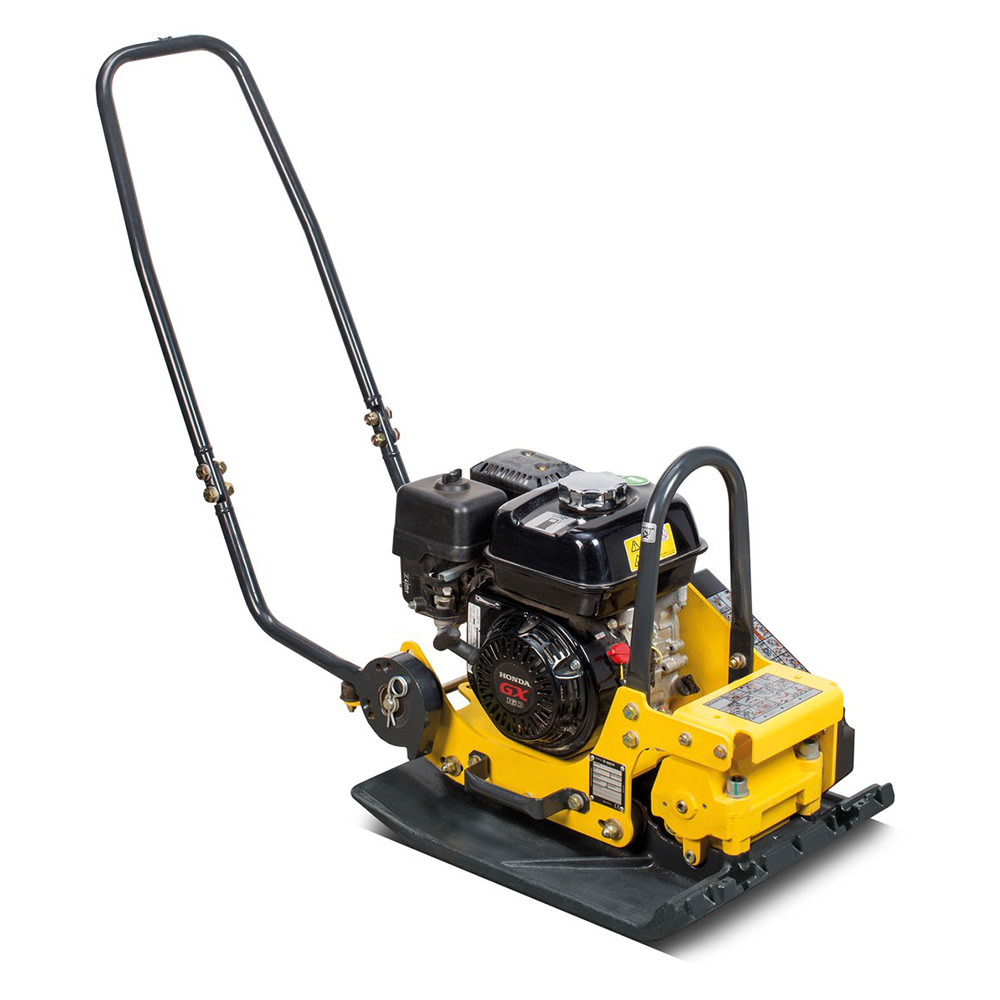

17.7 In. Single Direction Vibratory Plate – Honda GX160 Engine
You mend, repair, and create so that our environment remains worth living in. To make this work easier for you we built the best machines – from tampers and vibratory plates to hand-guided vibratory rollers and multi-purpose compactors. For over 60 years, the history of our company has synonymous with the history of compaction.
Features
Optional water kit available (not included)
Vibration isolated engine
Removable, foldable, vibration isolated steering handle
Wear resistant base plate with reinforced sides
Self-cleaning base plate
Engine protection frame
Balanced lifting point
Carrying handles
Bolt on exciter housing
Centrifugal clutch
Fully enclosed V-belt
Ergonomic height adjustable handle
Easy access shut-down switch
Single air filter system
Self cleaning air filter housing
Dual fuel filter system
Polyethylene shoe with steel wear plate
Specifications
Acme Tools Brand Name
BOMAG
Acme Tools Part Number
BVP 18/45
Adjustable Handle Height
Yes
Anti-Vibration Handle
Yes
Application
Sand, gravel, granular base materials, hot and cold asphalt patching
Assembled Weight (lbs)
201
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 0.8 Gal
Color / Finish
Black and yellow
Compacting Plate Length (in)
22
Compacting Plate Material
Steel
Compacting Plate Width (in)
17.7
Compaction Equipment Type
Vibratory Plate Compactor
Country of Origin
United States
Engine
Honda GX160
Engine Starting Method
Recoil
Engine Type
Gasoline 4 Cycle
Fuel Consumption (gph)
0.2
Fuel Tank Capacity (gal)
0.8
Internal Supplier Part #
BVP 18/45
Internet Product Code (IPC)
9591ABFCBFA
Lifting Bail Included
Yes
Manufacturer Warranty
One Year Limited Warranty
Material
Sand, gravel, granular base materials, hot and cold asphalt patching
Maximum Engine Output (hp)
4
Maximum Travel Speed (ft/min)
82
Overall Height (in)
36.0
Overall Length (in)
43.9
Overall Weight (lbs)
201
Overall Width (in)
17.7
Package Contents
BVP 18/45
Package Weight
240
Package Weight (lbs)
240
Protective Cover
Yes
Ramming Force (kN)
16
Ramming Speed (SPM)
708
Surface Capability
Sand, gravel, granular base materials, hot and cold asphalt patching
