Description

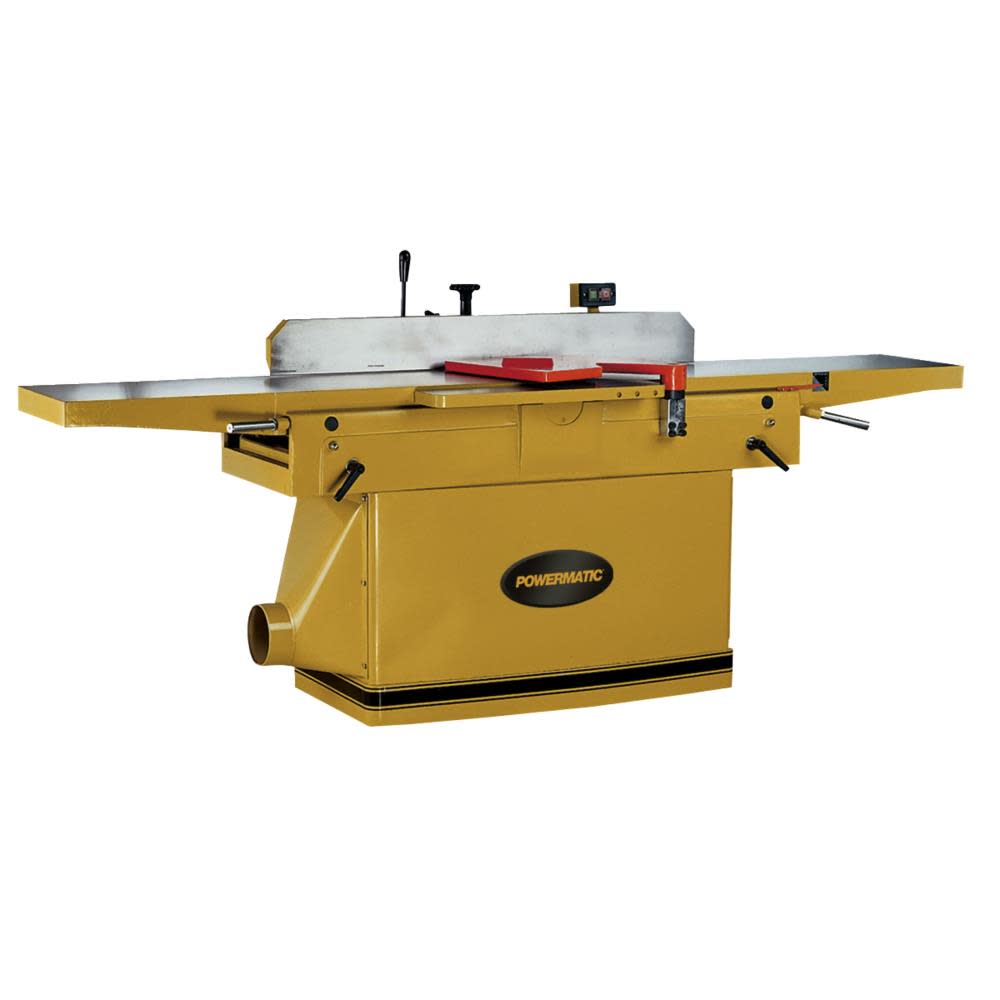

16″ Jointer, 7.5HP 3PH 230/460V, Helical Head

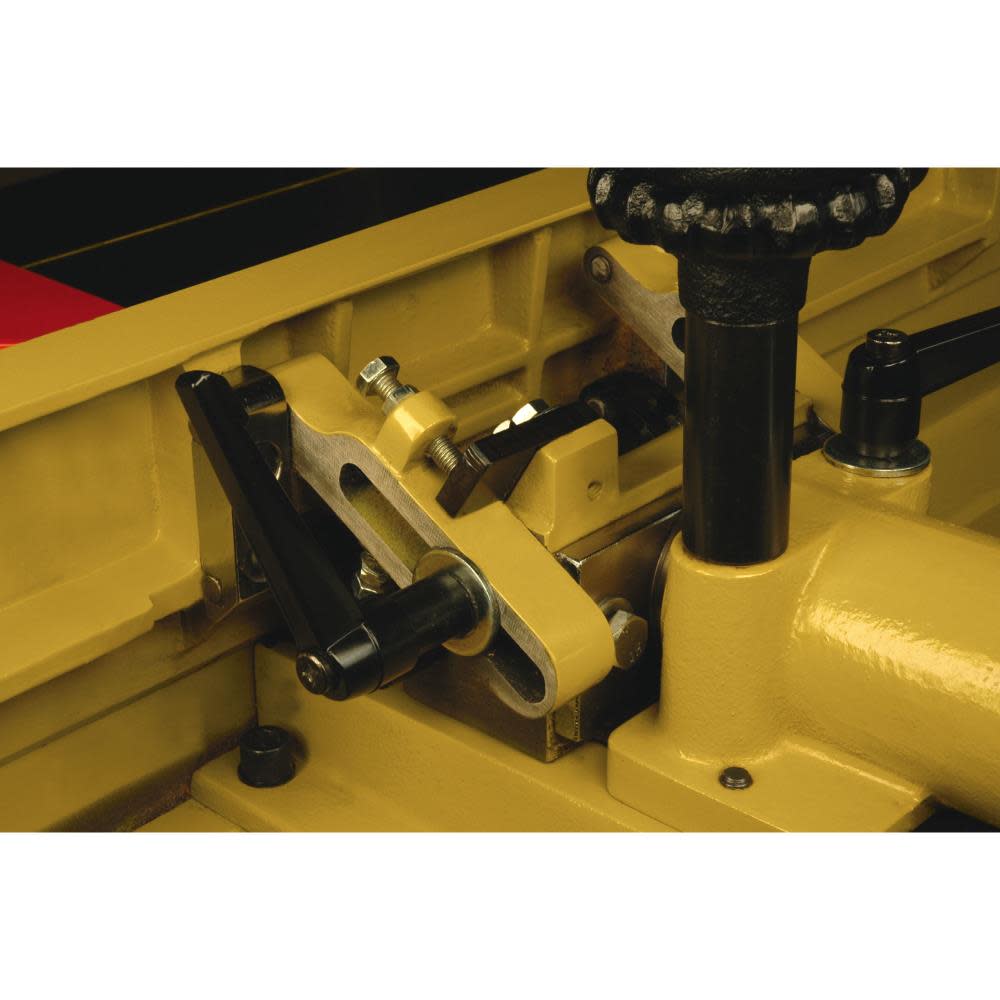

This 16″ jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutter head consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.
Features

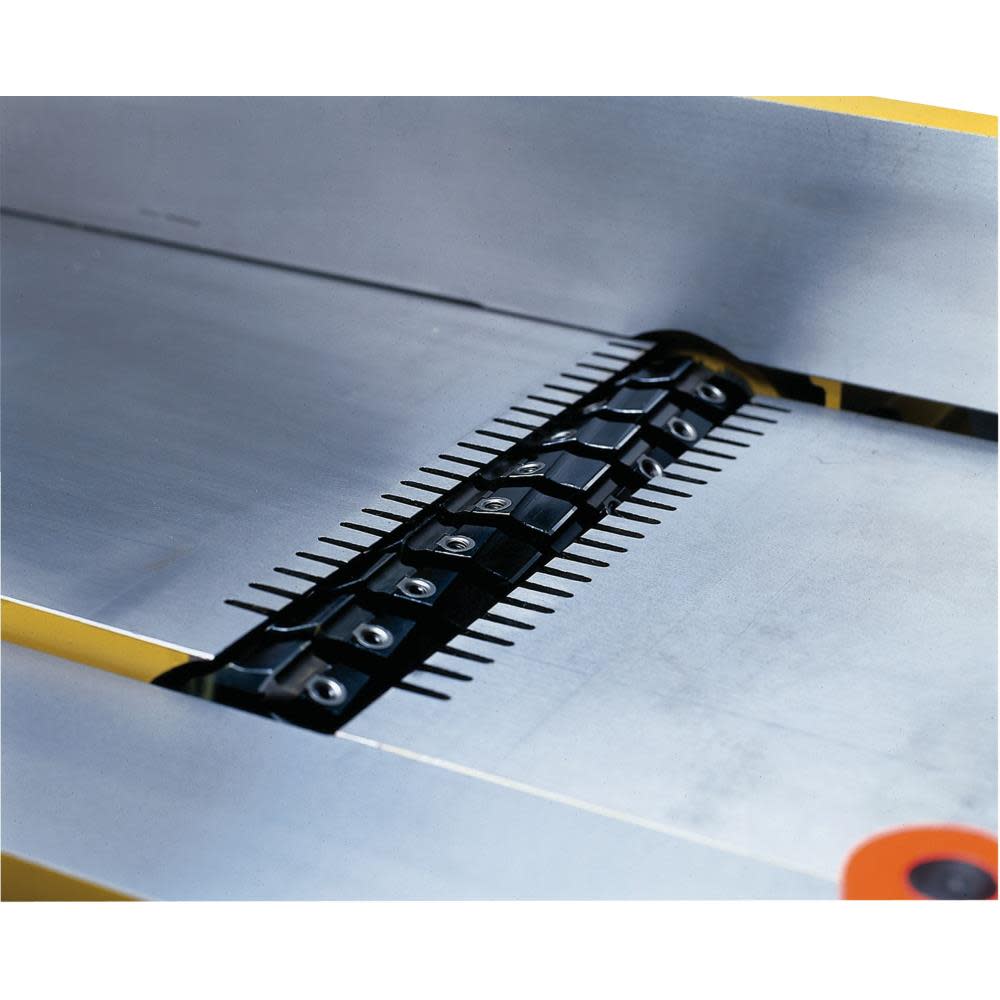

Helical cutter head with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes
Parallelogram construction maintains close table-to-cutter head proximity and ensures table parallelism

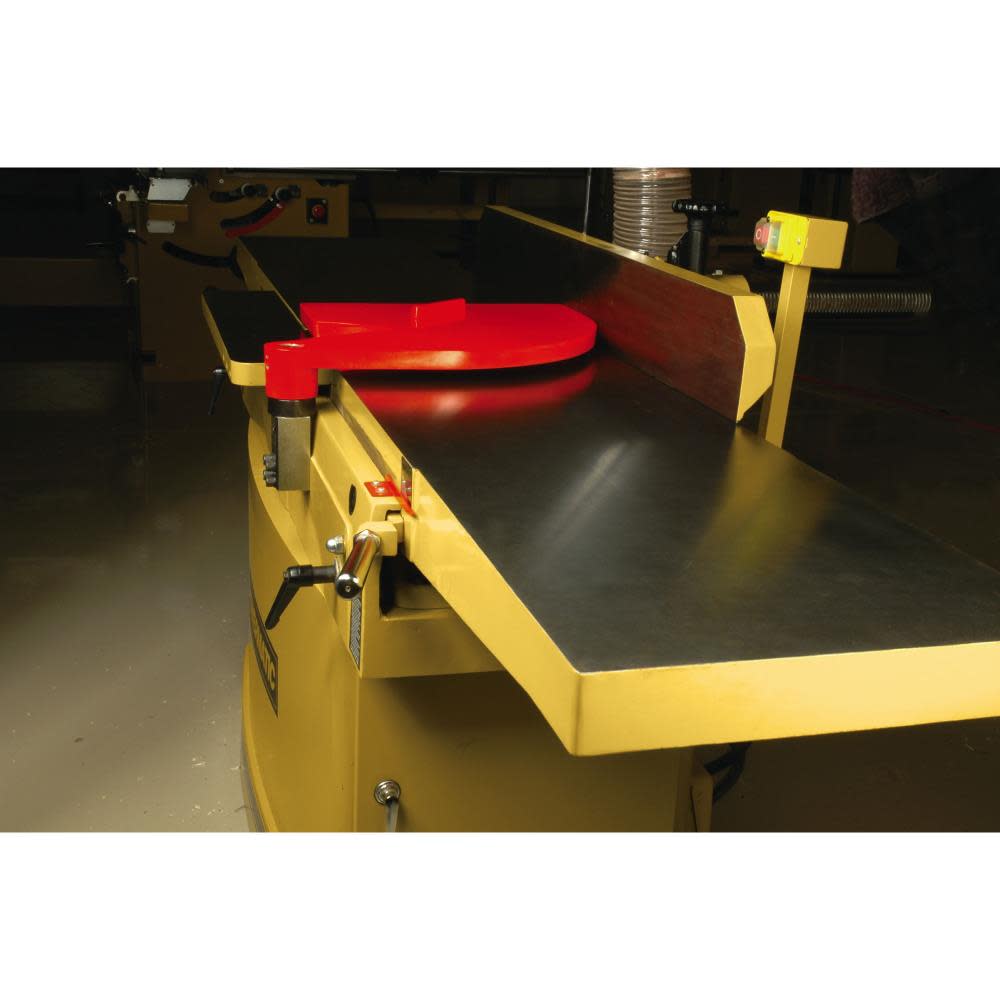

Large 96×16-in table surface for maximum support and fine finish

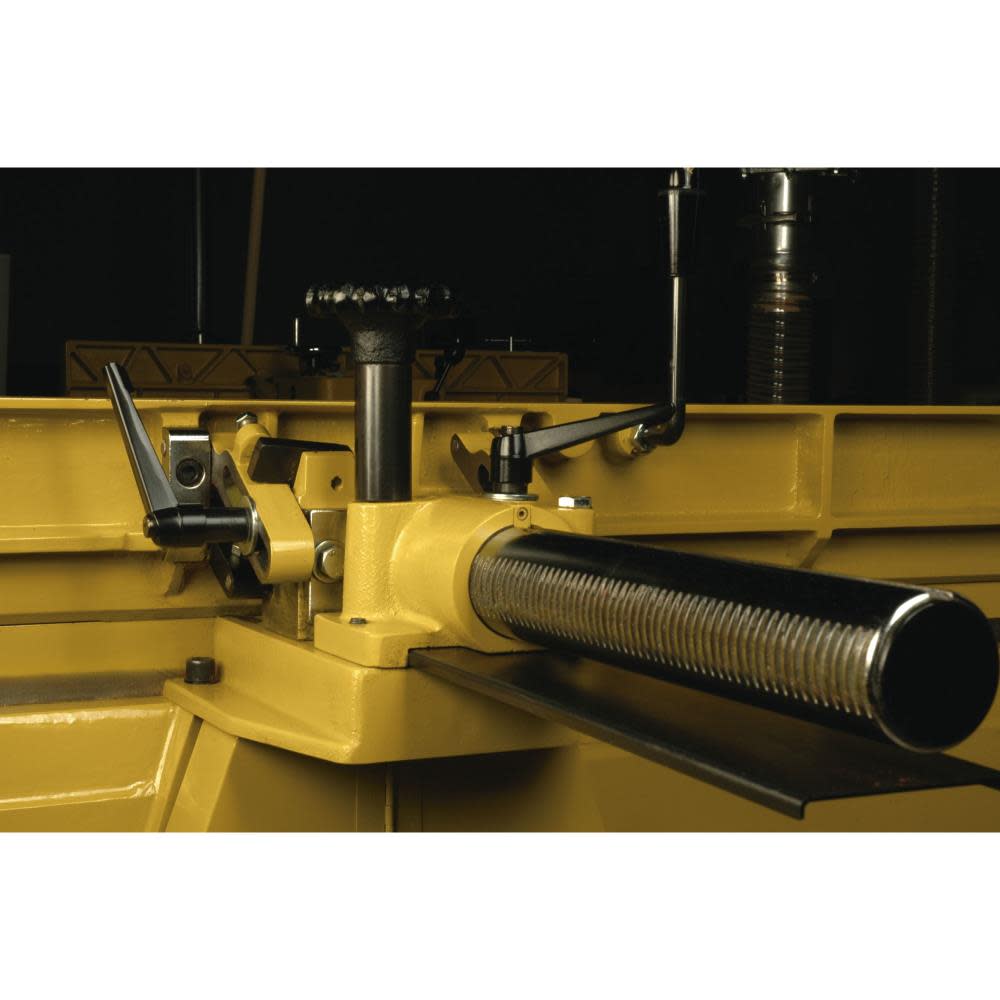

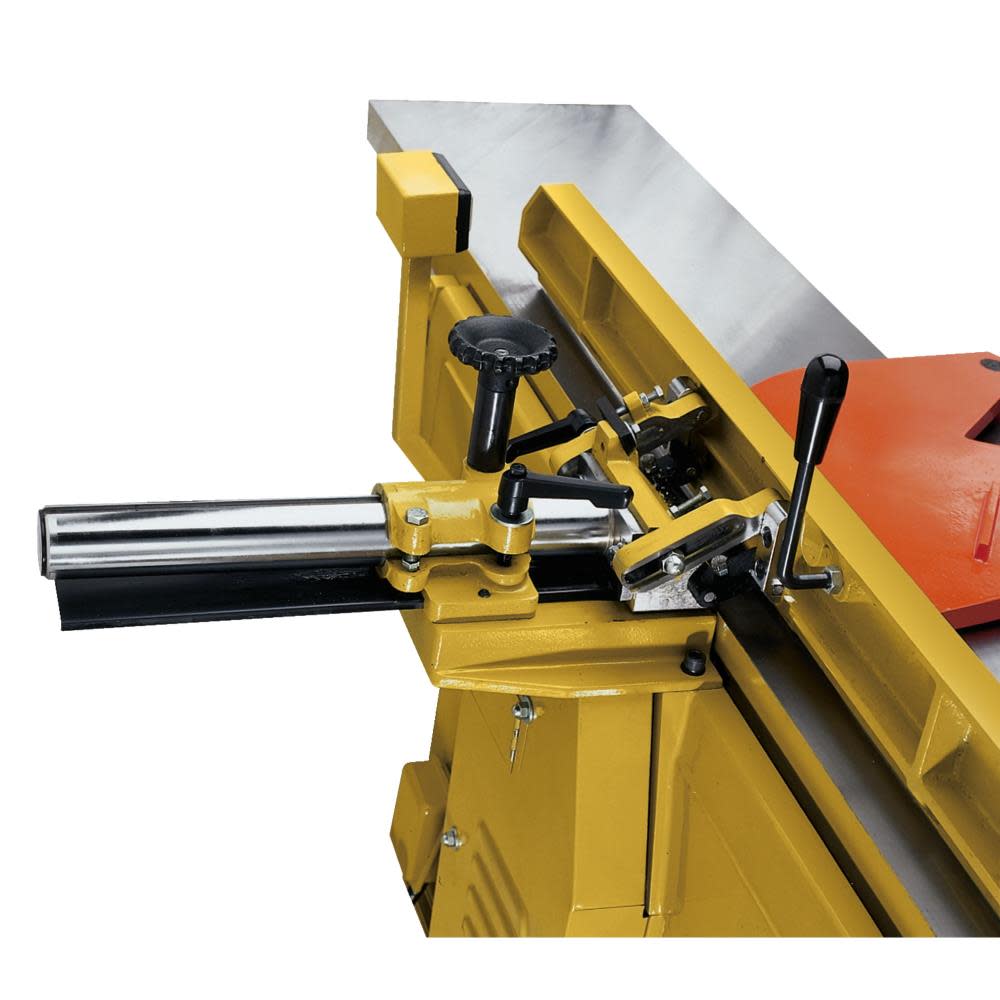

Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
Full size rabbeting table supports large workpieces for rabbets up to 3/4-in deep
7.5HP motor for industrial duty
Helical cutter head with inserts
Tilting fence
Dust collection adapter
Tool kit
460V operation requires an additional 460V magnetic switch, part PJ1696-205B
