Description

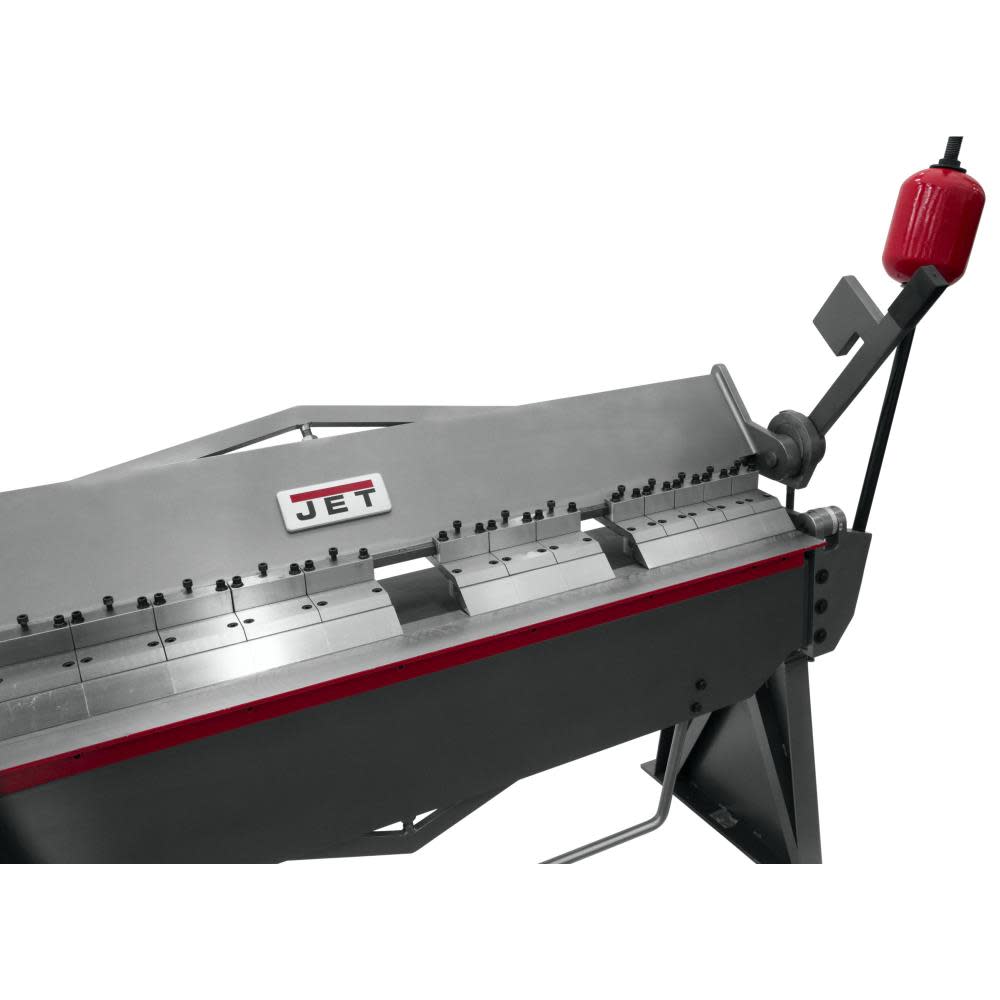

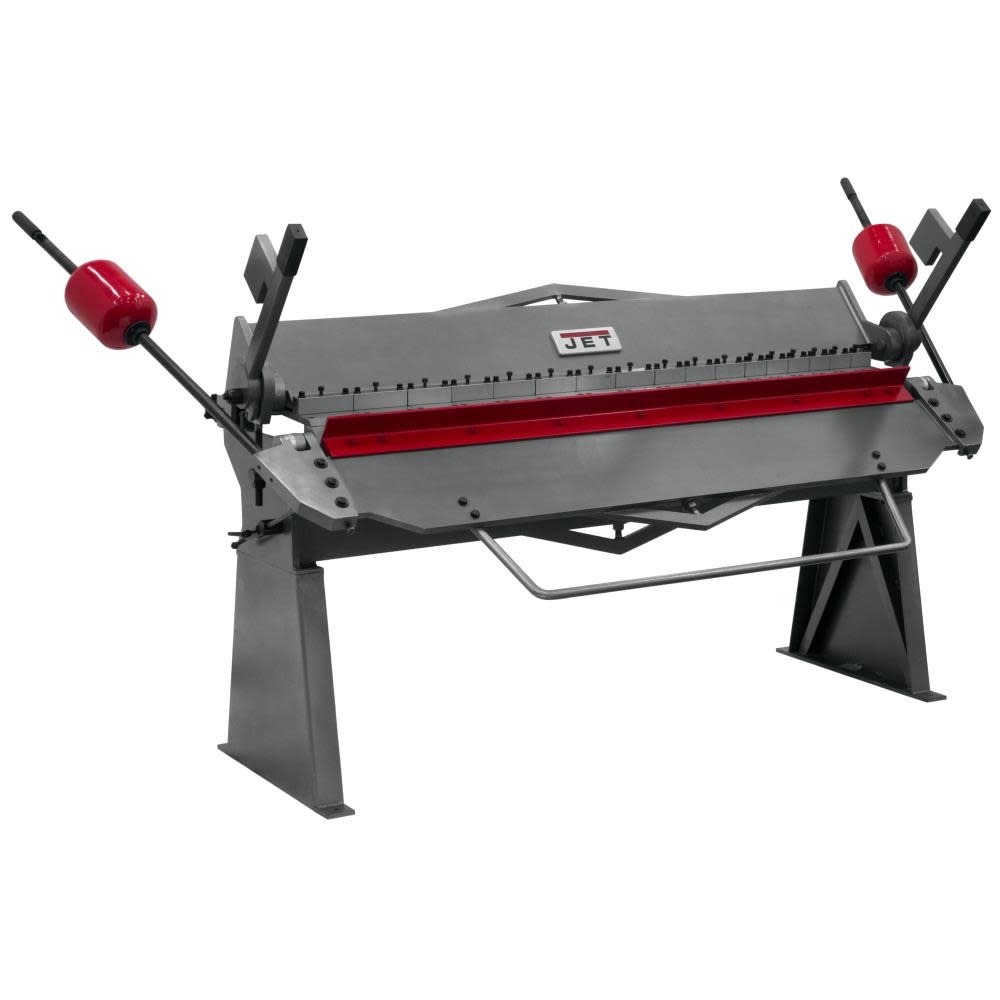

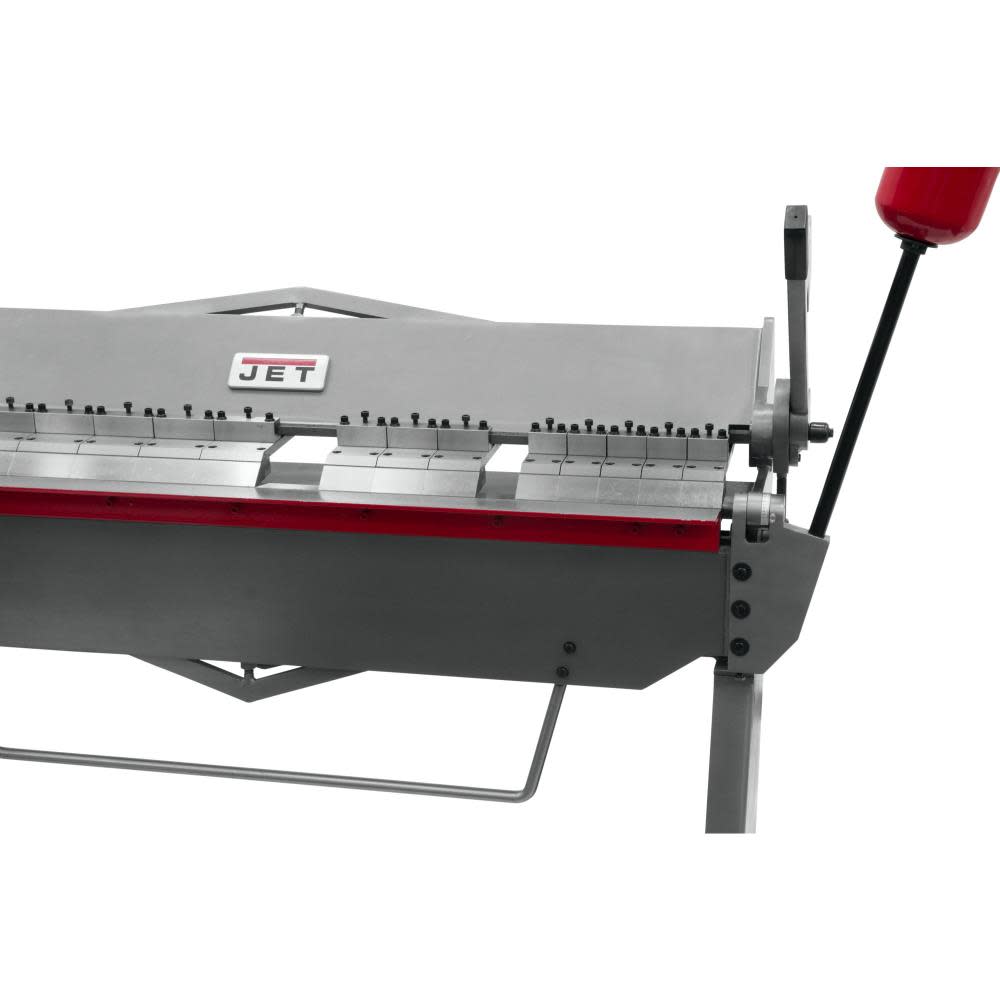

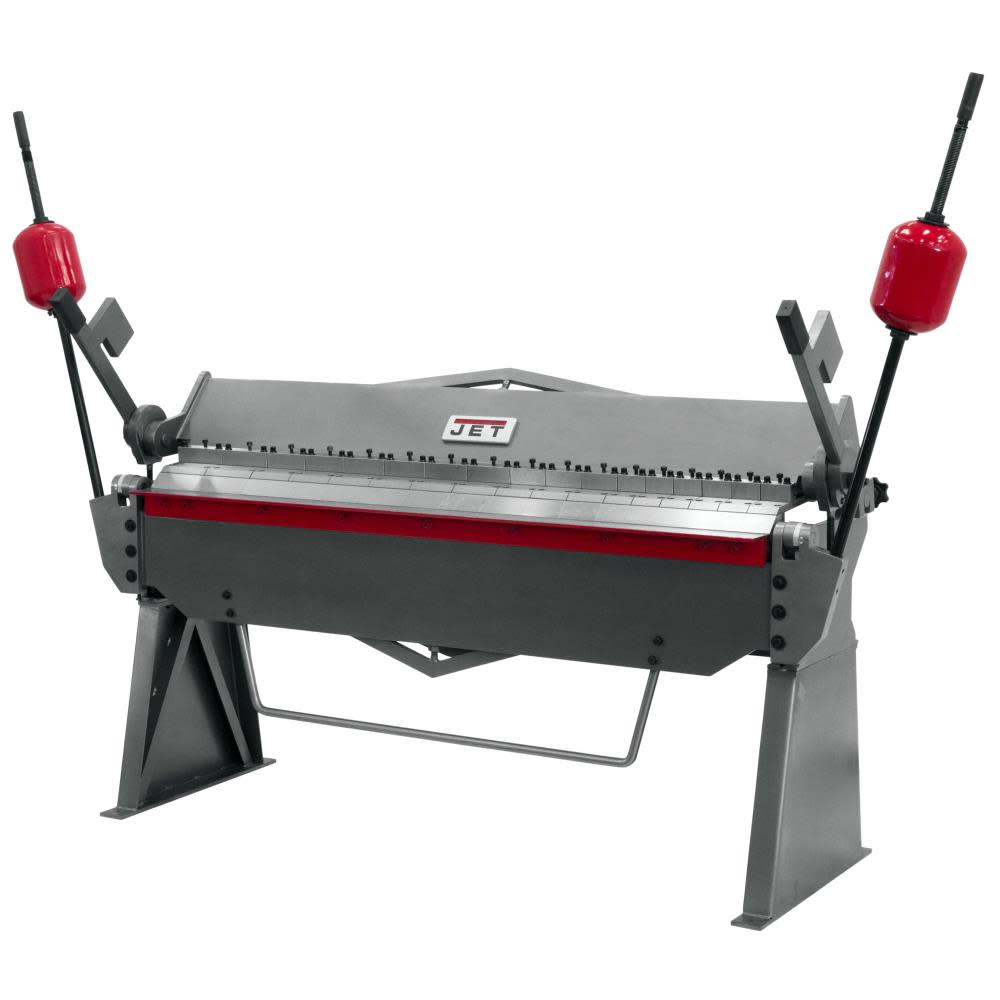

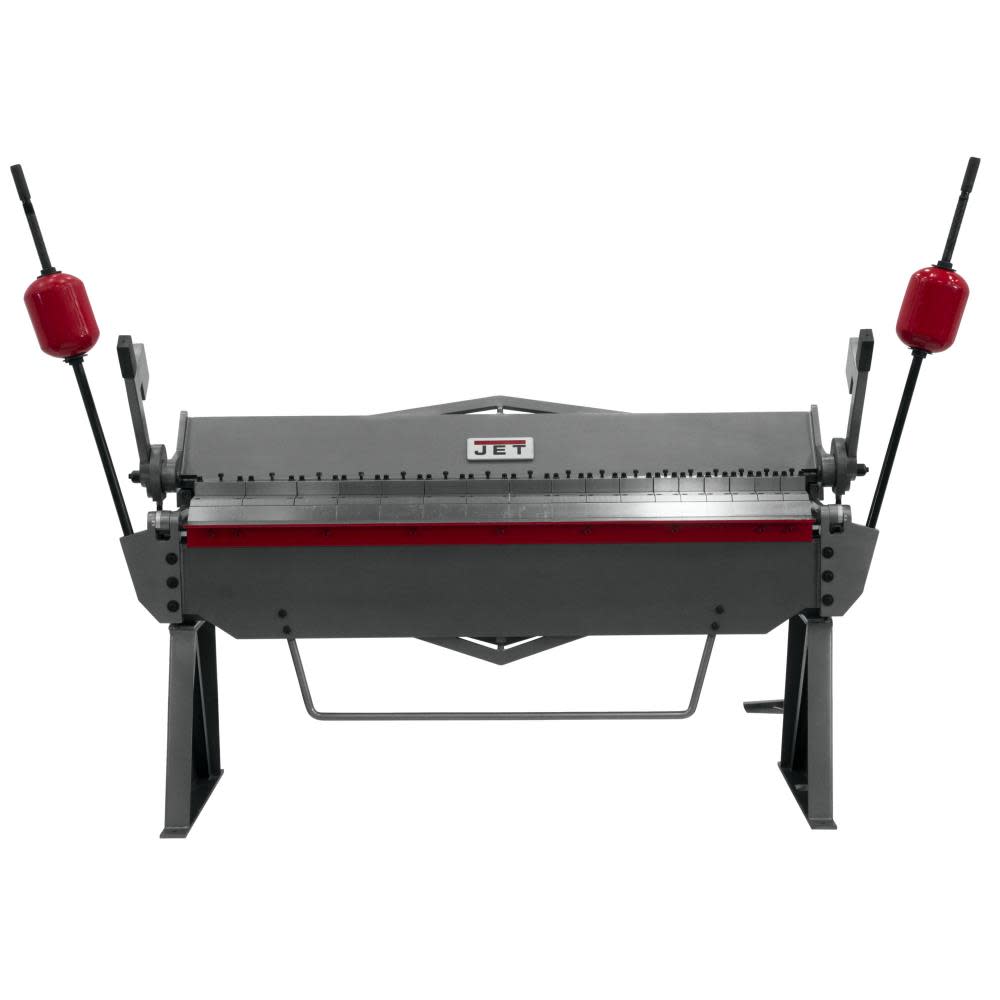

16 Gauge 72 In. Floor Box and Pan Brake
The Jet 72 “box and pan brake is designed for durable use and precise results. Innovative ergonomic features promote operator comfort and help prevent injury and fatigue. Welded steel plate body sections and heavy truss rods and braces contribute to strength.
Features
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
Both the bed and apron are bored in line to assure the utmost accuracy
Soft grips on top of counter weight bar to prevent damaging the operator’s hands

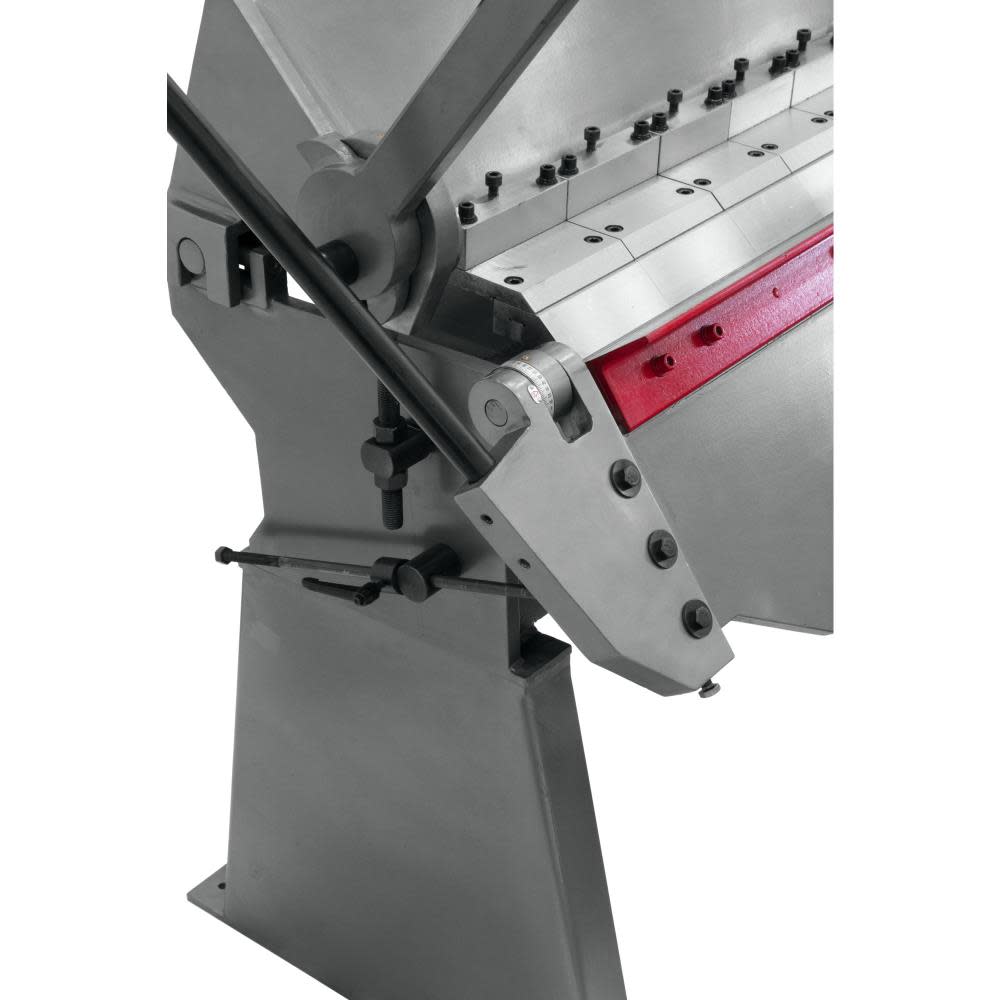

Tool less angle stop
Soft touch handle grips
With all fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
Wide assortment of finger widths allows greater versatility in the shop

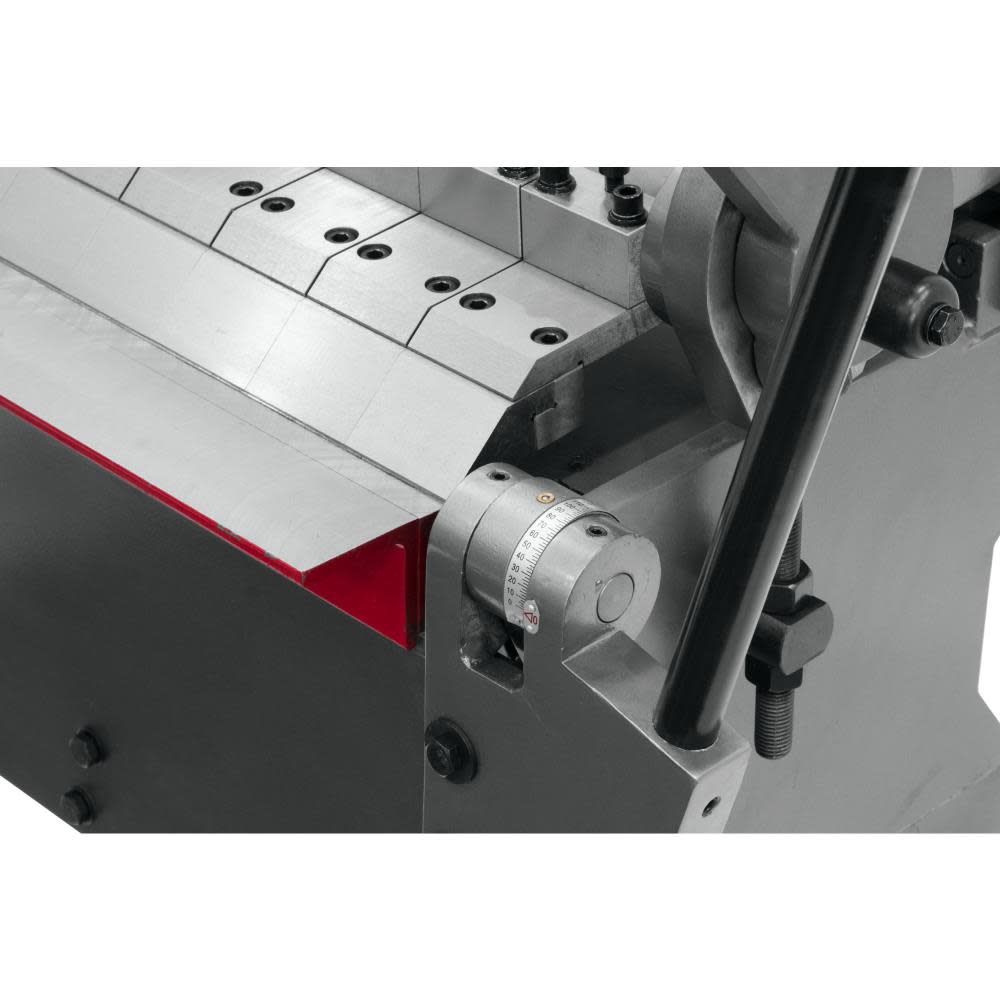

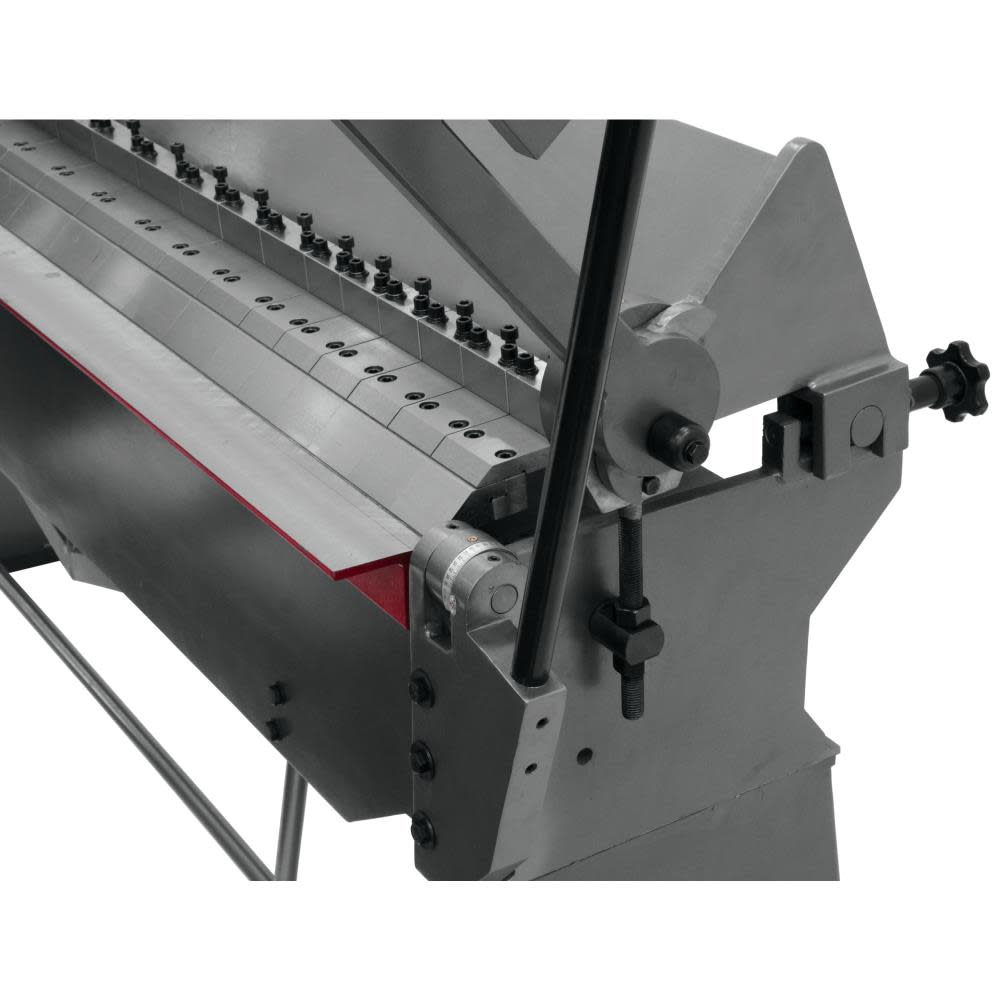

Repeat bends are easy with a quick turn of the stop collar on the stop rod
Counter weights can be moved up or down to provide leverage
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
754130
Assembled Weight (lbs)
1960
Beam Adjustment
Yes
Bending Length Capacity (in)
72
California Proposition 65 Warning Required
Yes
Color / Finish
grey/metal
Country of Origin
China
Gauge Capacity (ga)
16
Internet Product Code (IPC)
3A65AE49657
Manufacturer Warranty
2 Year
Material
steel
Maximum Beam Adjustment (in)
1
Maximum Beam Lift (in)
2.2
Maximum Box Depth (in)
4
Nose Radius (in)
0.0322
Number of Fingers
17
Overall Height (in)
41
Overall Length (in)
100
Overall Width (in)
31
Package Contents
17 Fingers
Package Depth
100
Package Height
41
Package Weight
2290
Package Weight (lbs)
2290
Weight (lbs)
1960
