Description

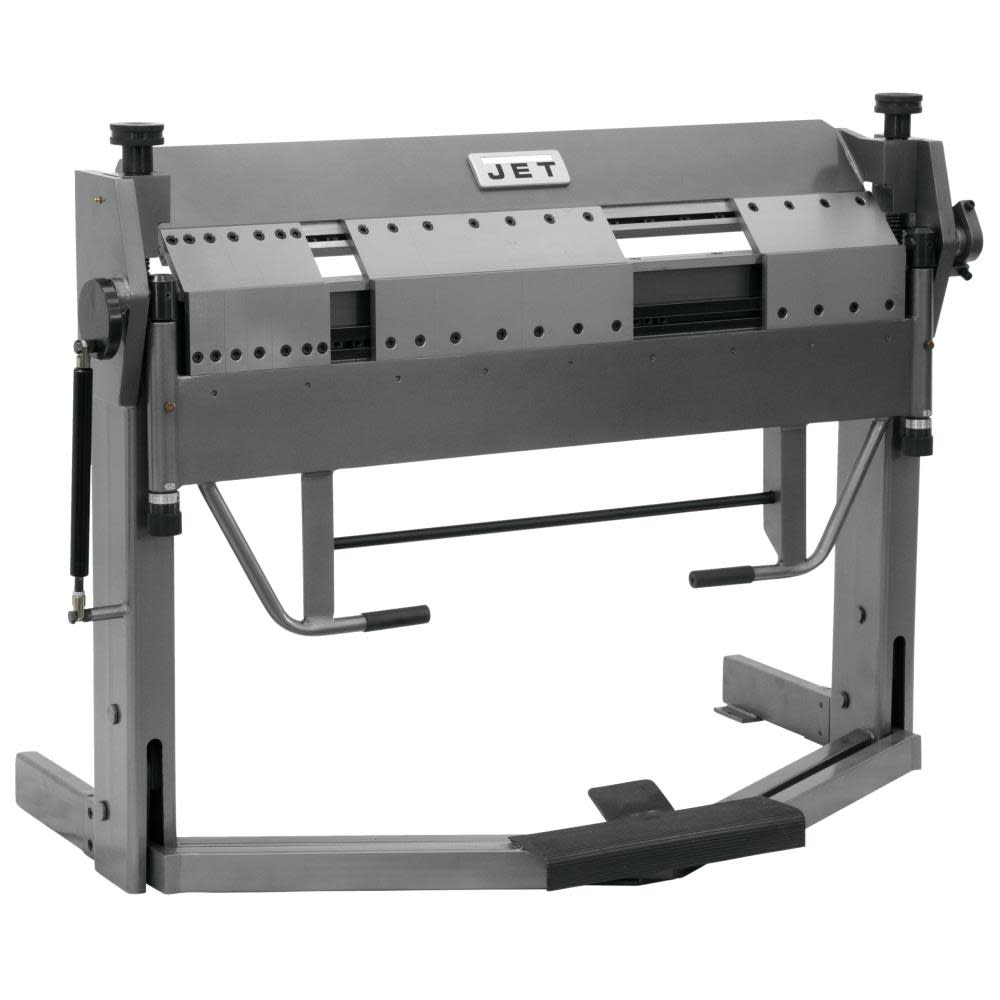

16 Gauge 50 In. Dual Sided Box and Pan with Foot Brake
Achieve bending precision and versatility along with rugged durability. The dual-sided box and pan brake adapts to a wide range of applications. Easily add and remove upper and lower fingers for multiple bends. The jet-exclusive graduated scale on each side improves accuracy when setting lower beam parallelism.
Features
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
Hardened and ground fingers
Rubber stops on rear of lower arm to prevent contact with support frame
Non-skid foot pedal
Set lower beam parallelism more accurately with graduated scale on each side
Removable upper fingers and on the apron for greater versatility in making custom bends
Repeat bends are easy with a quick turn of the stop collar on the stop rod
Hydraulic spring to assist in raising the apron reduces strain on the operator

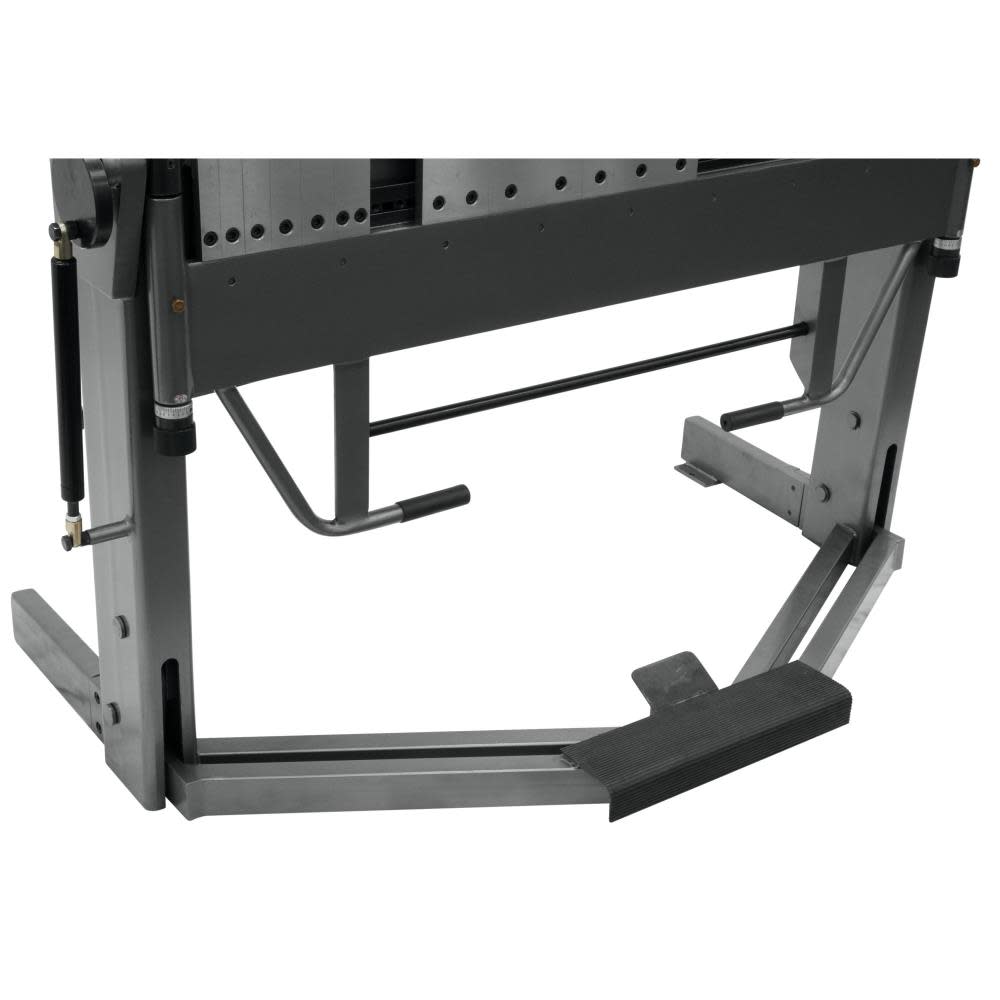

Large easy to use foot clamp allows the operator hands free clamping
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
752130
Assembled Weight (lbs)
772
Beam Adjustment
No
Bending Length Capacity (in)
50
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Metal
Country of Origin
China
Gauge Capacity (ga)
16
Internet Product Code (IPC)
2834FD495C2
Manufacturer Warranty
2 Year
Material
Frame: welded steel plate/tubing; Clamping fingers: ground steel; Clamping block: precision ground steel
Maximum Beam Lift (in)
1.812
Maximum Box Depth (in)
2.5
Nose Radius (in)
0.031
Number of Fingers
12
Overall Height (in)
45
Overall Length (in)
63
Overall Width (in)
38
Package Contents
12 Fingers
Package Depth
67.38
Package Height
51.5
Package Weight
849
Package Weight (lbs)
849
Weight (lbs)
772
