Description

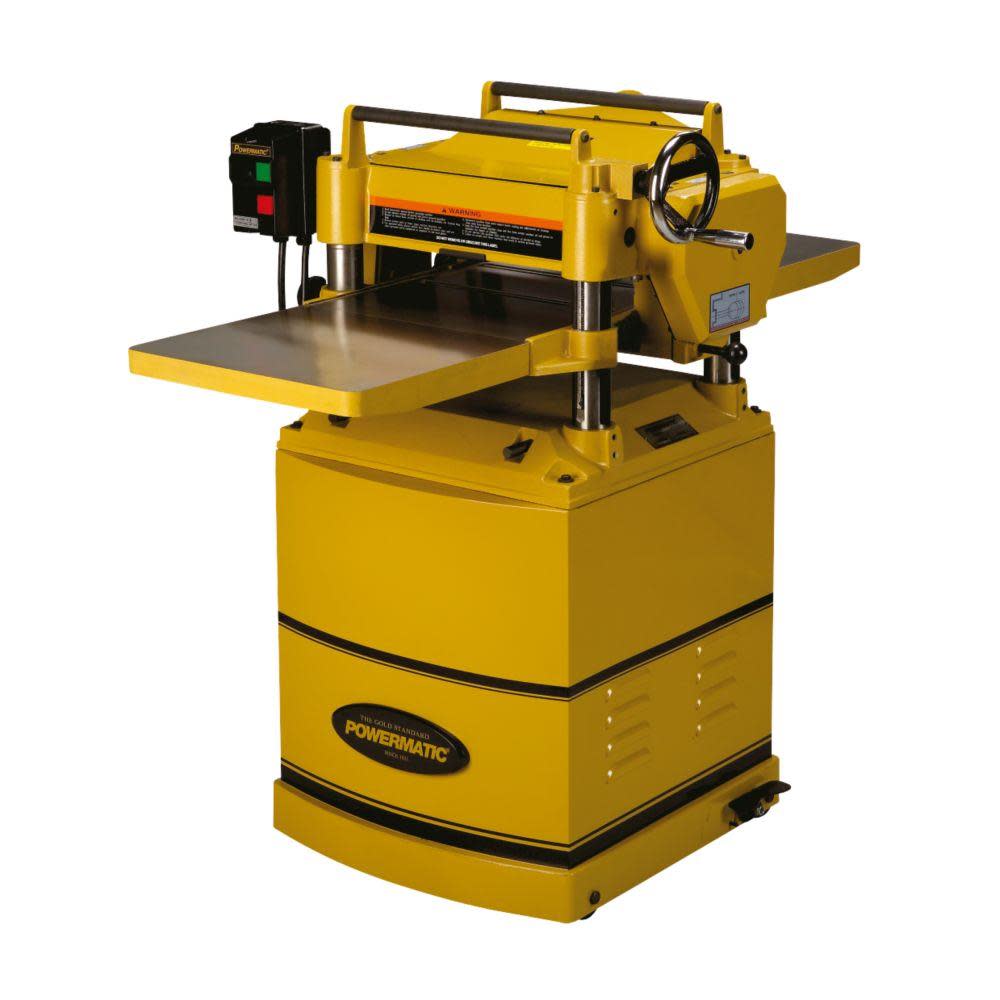

15HH 15″ Planer Helical Cutter Head
The 15HH Planer, 3HP 1Ph 230V, from Powermatic, helps to make your boards smoother and more professional-looking. It has a powerful 3hp motor that runs the cutterhead at up to 4,500 rpm to get the job done quickly. The helical cutterhead planer utilizes 74 knife inserts for quieter operation and a softer finish. The serrated infeed roller grabs the board and pushes it forward, while the smooth outfeed roller is safe to use without marring the wood. A maximum cutting depth of 1/8 inch makes the Powermatic planer capable of smoothing out noticeably bowed pieces. The variable-speed design lets you work at a comfortable pace.
Features
Powermatic 15HH planer comes with four hex wrenches, two open-end wrenches, screwdriver, Torx plus drive adapter and 10 knife inserts
Shaves down the surface of large boards to create a smoother, more-uniformed look
Powermatic planer’s 3hp motor achieves a top speed of 4,500 rpm
74 knife inserts operate relatively quietly
Helical cutterhead planer combines serrated infeed and smooth outfeed for traction and to prevent wood damage
Maximum cutting depth of 1/8 inch for correcting bowed boards
Variable-speed machine lets you work at the pace that’s right for you
5-year warranty for home use; 2-year coverage for commercial use
Specifications
Acme Tools Brand Name
POWERMATIC
Acme Tools Part Number
1791213
Amperage (A)
15
Assembled Weight (lbs)
502
Bench or Stationary
Stationary
Blade Count
0
Blade Type
74 four-sided inserts
California Proposition 65 Warning Required
Yes
Color / Finish
Gold/Metal
Cord Length (ft)
8
Cordless / Corded
Corded
Country of Origin
Taiwan
CSA Certified
No
Cuts Per Minute
67500
Cutter Head Type
Helical
Depth Measurement System
Yes
Depth Of Cut Range
0
Drive Motor System
Electric
ETL Listed
No
Feed Rate/s (Ft/Min)
16 and 20 FPM
Height (in)
43.5
Housing Material
Aluminum
Integrated Chip Management
Yes
Internal Supplier Part #
15HH
Internet Product Code (IPC)
2956AE6F7D0
Length (in)
48
Lock-on Switch
Yes
Manufacturer Warranty
5 Year
Maximum Board Thickness (in)
6
Maximum Cuts Per Inch
0
Maximum Cutting Depth (in)
0.25
Maximum RPM
4500
Maximum Width Cutting Capacity (in)
15 in
Minimum Cuts Per Inch
0
Motor Horsepower (hp)
3 HP
Overall Weight (lbs)
582
Package Contents
Accessories Included
Package Depth
48
Package Height
43.5
Package Weight
568
Package Weight (lbs)
568
Reversible
No
Switch Type
Push Button
UL Listed
No
Variable Speed
No
Voltage
220 Volts
Width (in)
28
