Description

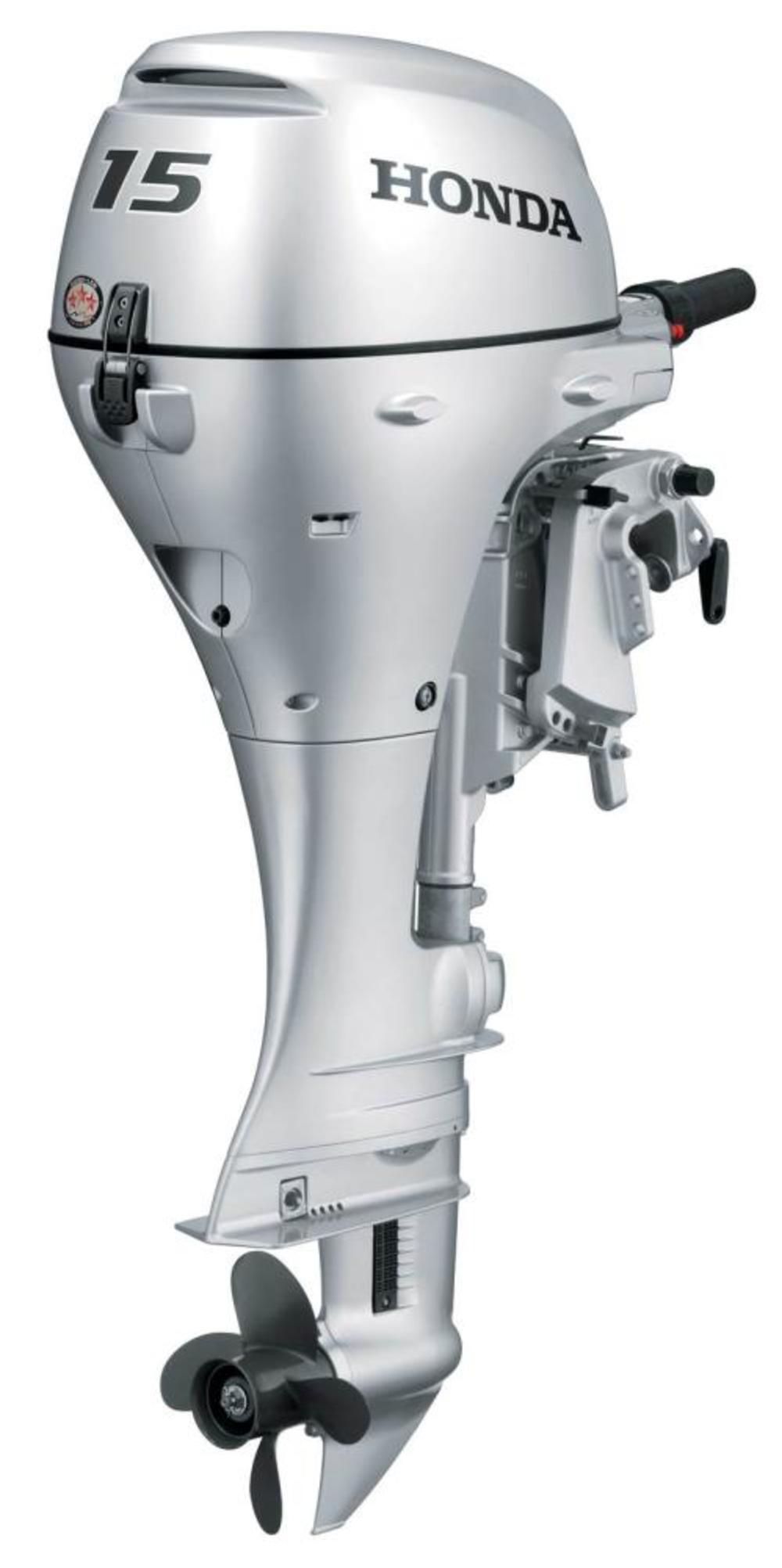

15 HP 4-Stroke Electric Start Outboard Motor with Throttle Grip
For smaller 12 to 16 Ft. boats, the BF15 and BF20 are as convenient as you can get. At just 104 Lbs., they are among the lightest in their class. Yet theyre all Honda DNA: quiet, reliable, fuel efficient, and loaded with features. Like the highest output charging system in their class, giving you plenty of power for all your electronics, even when trolling. Or large displacement for a powerful performance. Choose the BFP power thrust design for even more boost, with 60% more thrust in reverse and 15% more in forward.
Features
Reliable, efficient 4-stroke design
World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing
Large displacement – better performance
At 21.4 cubic inches, the BF15 and 20 have one of the largest displacements in its class
Easy one hand starting
A built-in decompression release and digital CDI system set the BF15 and 20’s ignition timing
The lightest 4-stroke model in their class, the BF15 and 20 are easy to transport and convenient to mount
Available with power thrust design (BFP) – better performance for heavy loads
Ultra low 3 star CARB emissions
Honda’s true 5 warranty is the best in the business
High output charging – more power
Engine alert system – keeps you informed
4-Front corrosion protection system – fights the elements
Longer tiller handle – better control
Auto start enrichment acts as an automatic choke
The extended handle is made of a lightweight composite, increasing its durability while decreasing the motor’s weight
Pendulum mount system – smooth operation
Convenient, up front tiller controls
EZ steer friction control
Shallow water drive
Conventional 2-circuit carburetors go directly from a lean mixture at idle to a rich setting at full throttle
Specifications
Acme Tools Brand Name
HONDA MARINE
Acme Tools Part Number
BF15D3SHS
Assembled Weight (lbs)
110
Bore Diameter (in)
2.3
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 3.2 Gal
CARB Compliant
Yes
Color
Silver
Color / Finish
Silver double sealed multi-layered paint process, sacrificial anodes, stainless steel technology, and waterproof connectors enhance corrosion protection.
Country of Origin
Japan
Cylinder Count
2
Dry Weight (lbs)
110
Engine Displacement (in³)
21.4
Engine Oil Capacity (qt)
1.4
Engine Starting Method
Electric / Recoil
Fuel Tank Capacity (gal)
3.2
Gear Ratio
2.08:1
Horsepower (hp)
15
Installation Hardware Included
No
Installation Instructions Included
Yes
Internal Supplier Part #
BF15D3SHS
Internet Product Code (IPC)
2FAFFD6739D
Manufacturer Warranty
5 Year Limited Manufacturers Warranty. See Owner’s Manual for Details.
Model Year
2015
Overall Height (in)
0
Overall Length (in)
15
Overall Width (in)
13.8
Package Contents
Installation Instructions
Package Weight
135
Package Weight (lbs)
135
Recommended Use
Recommended Maximum Boat Length (ft)= 12
Shaft Length (in)
15
Stroke Length (in)
2.5
