Description

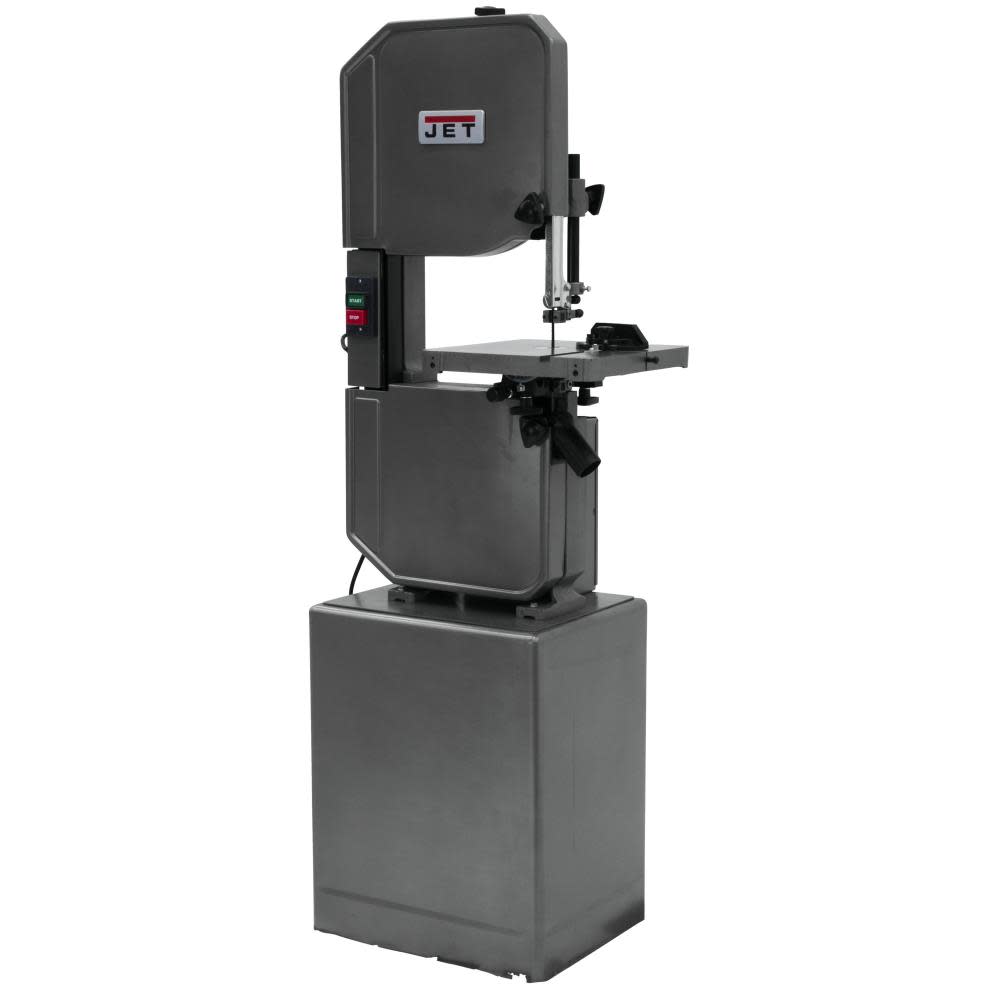

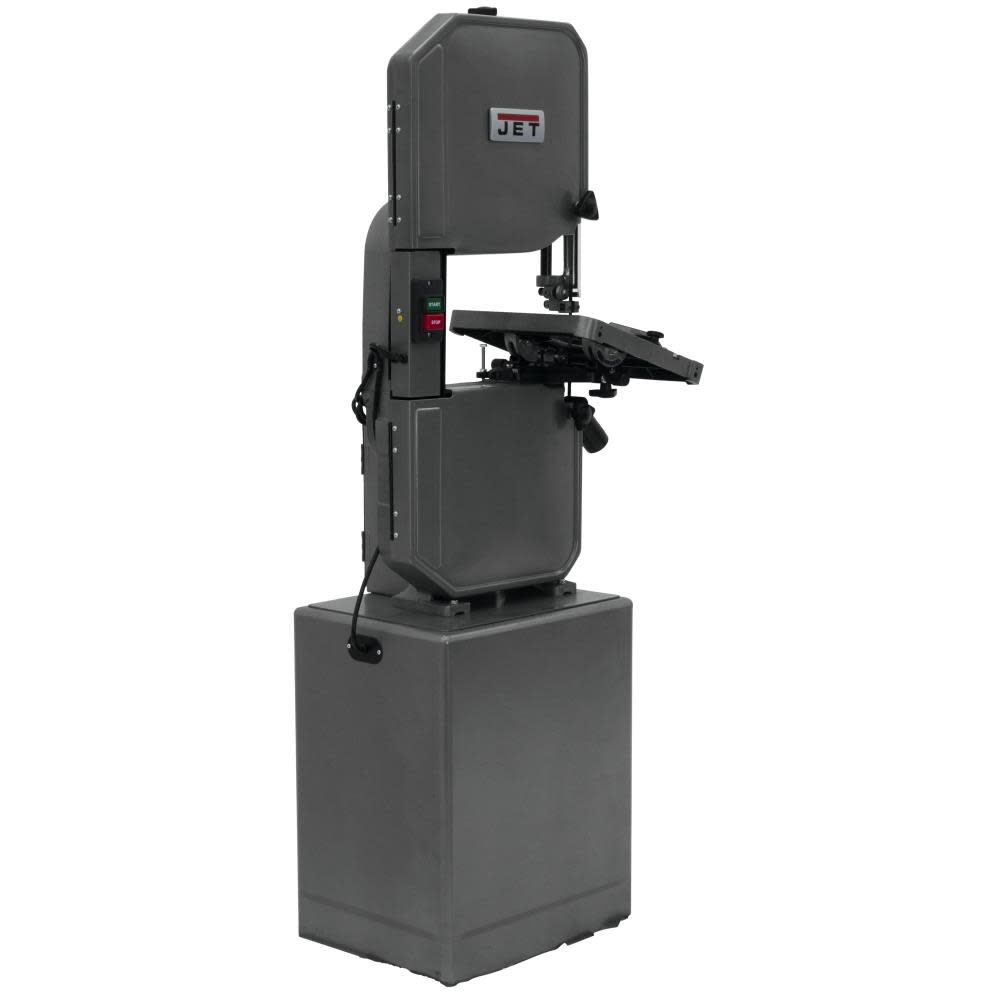

14″ Metal/Wood Vertical Bandsaw 230V 3Ph
The line of Jet metal/wood vertical bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. Jet has engineered a gear box that permits cutting of a great variety of materials, then backed it with the industry leading two year warranty.
Features
For added safety, the J-8203K follows strict guidelines and electrical requirements to be certified by CSA group
Solid, one-piece steel, base for extra stability
Conveniently located on/off switch

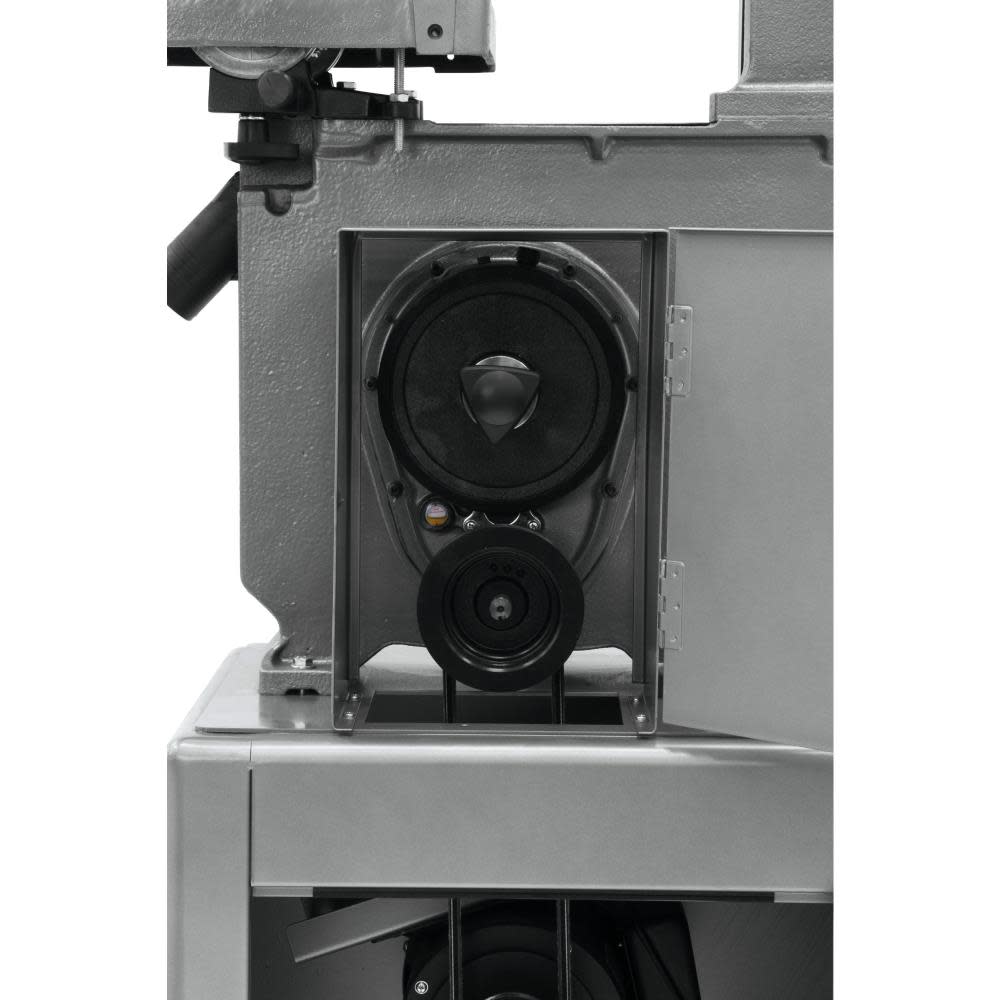

Variable speed drive system (8201VS)
Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications
Miter gauge
Dust chute
Adjustable table
14 TPI metal cutting blade included
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
414504C
Amperage (A)
3.6
Application
Wood & Metal
Assembled Weight (lbs)
280
Band Saw Type
Stationary
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Steel
Cordless / Corded
Corded
Country of Origin
Taiwan
Dust Port
No
ETL Listed
No
Horsepower (hp)
1
Internet Product Code (IPC)
ED46F3524A8
Manufacturer Warranty
2 Year
Material
Cast Iron
Maximum Blade Length (In)
92.5
Maximum Blade Width (In)
0.025
Maximum RPM
1725
Micro Adjust Blade Guides Bottom
No
Minimum Blade Length (in)
93.5
Minimum Blade Width (in)
0.025
Package Depth
25.5
Package Height
73
Package Weight
320
Package Weight (lbs)
320
Speeds
3300
Table Length (in)
14
Table Material
Cast Iron
Table Width (in)
14
UL Listed
No
Variable Speed
Yes
Voltage
230/460 Volts
