Description

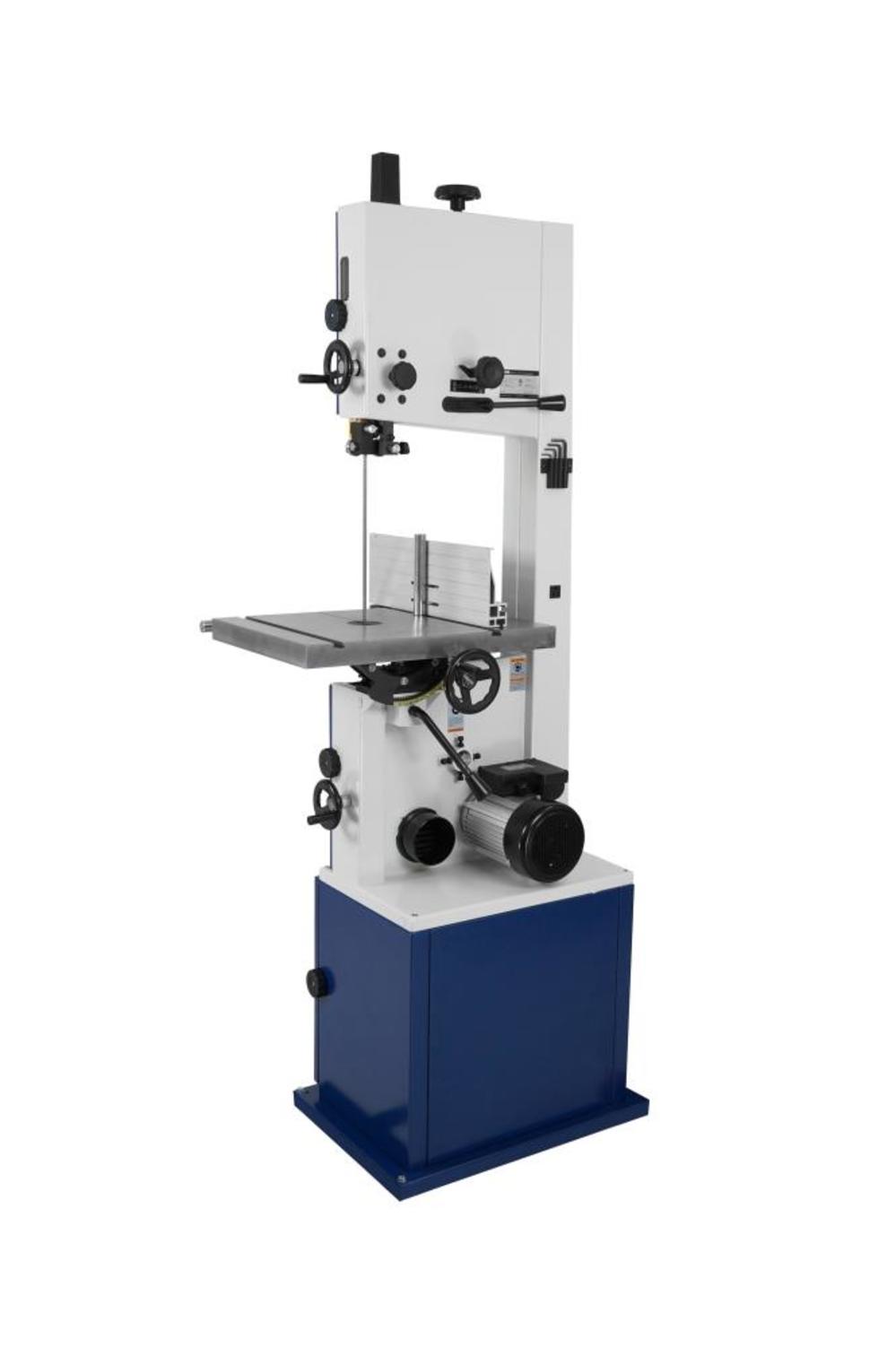

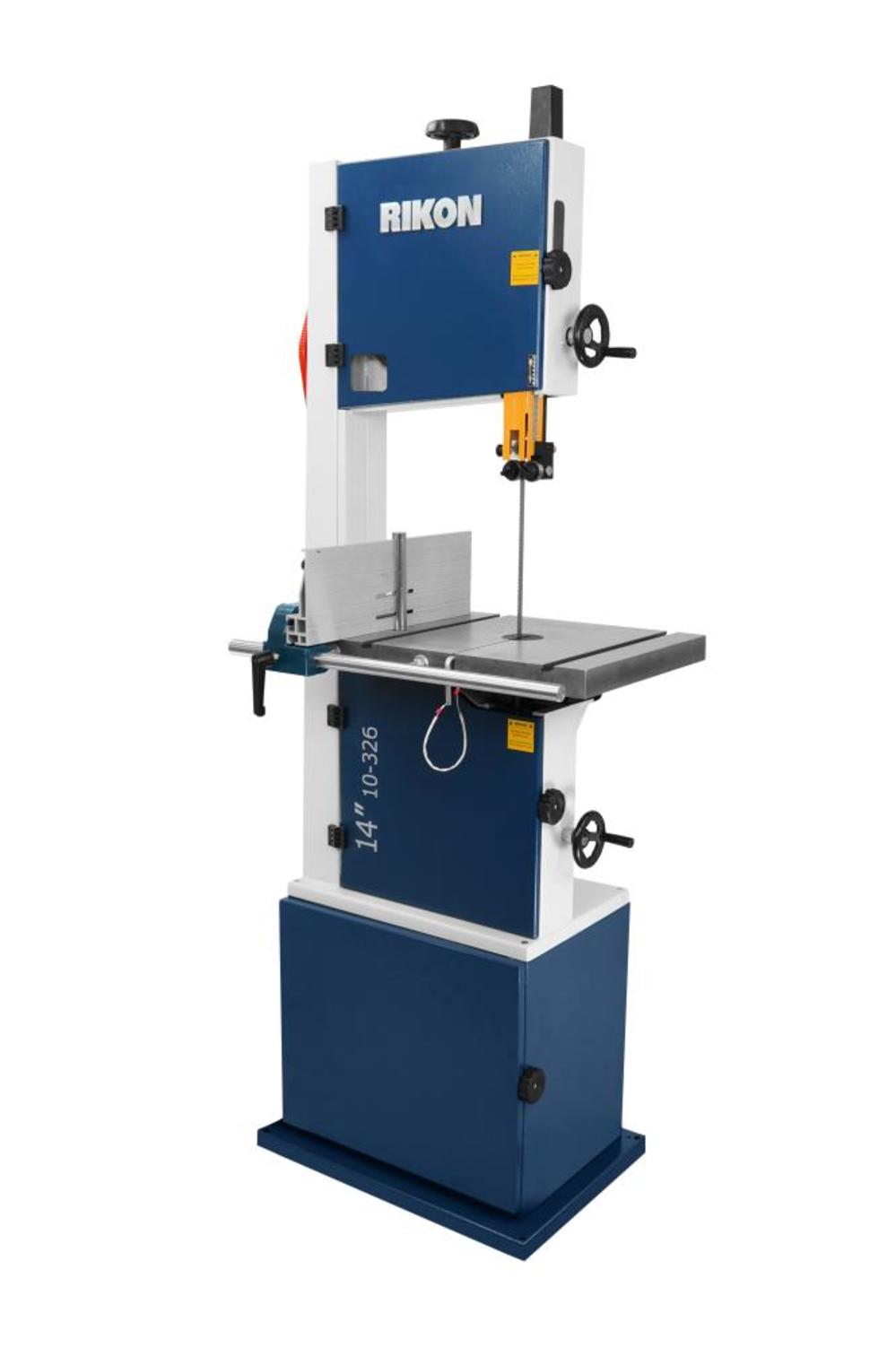

14 inch Deluxe Band Saw w/ Drift Fence 1.75 HP

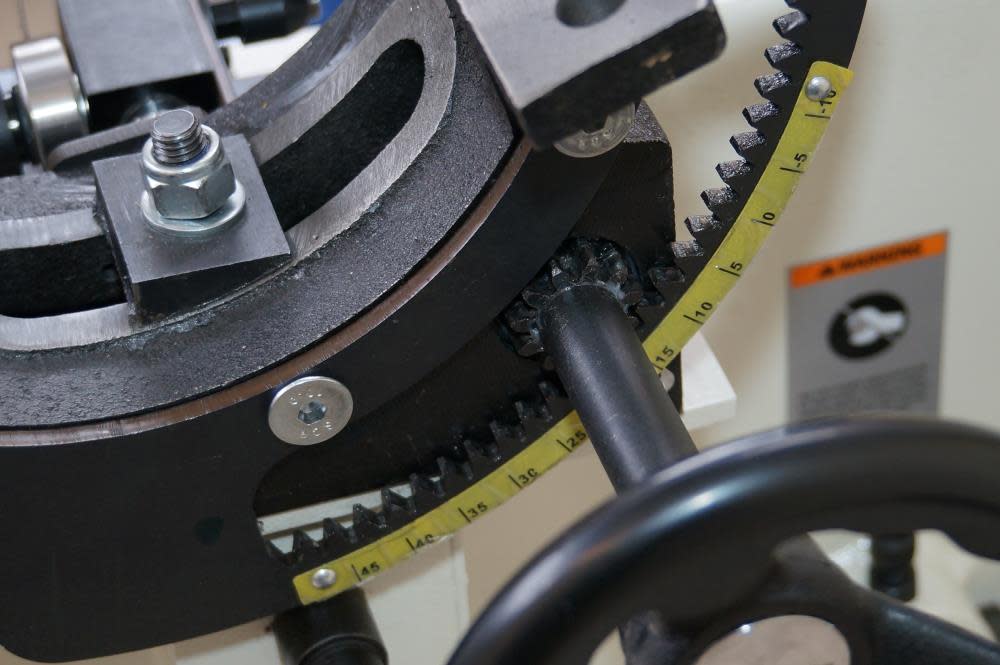

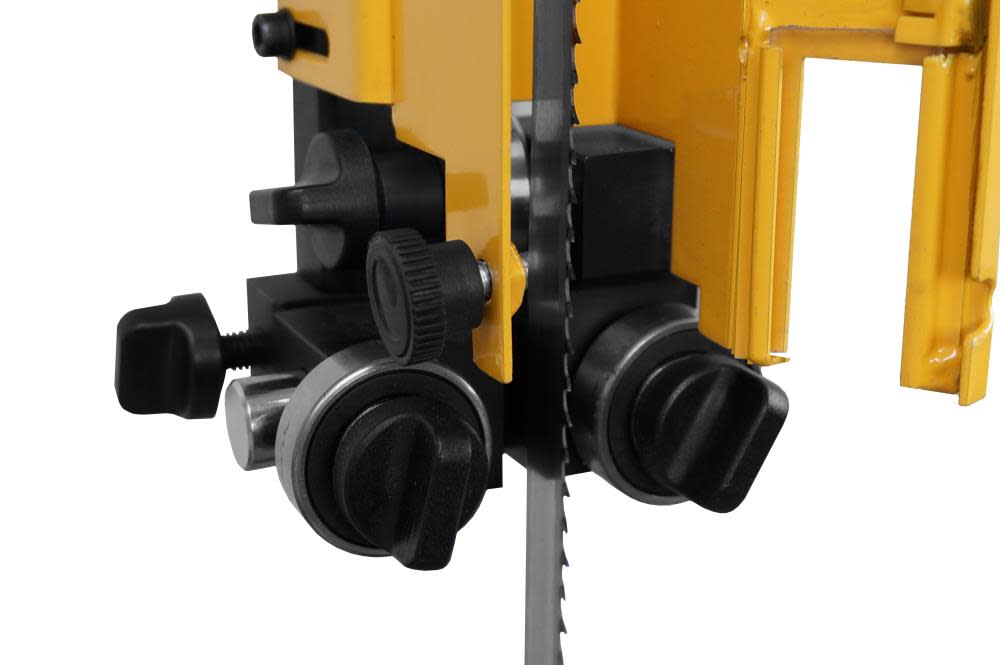

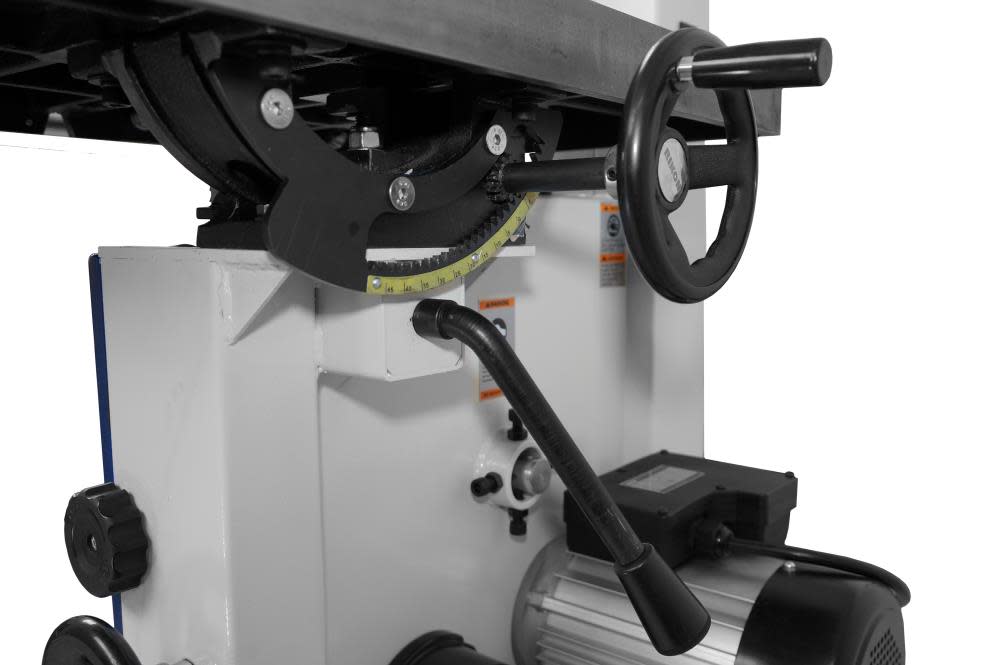

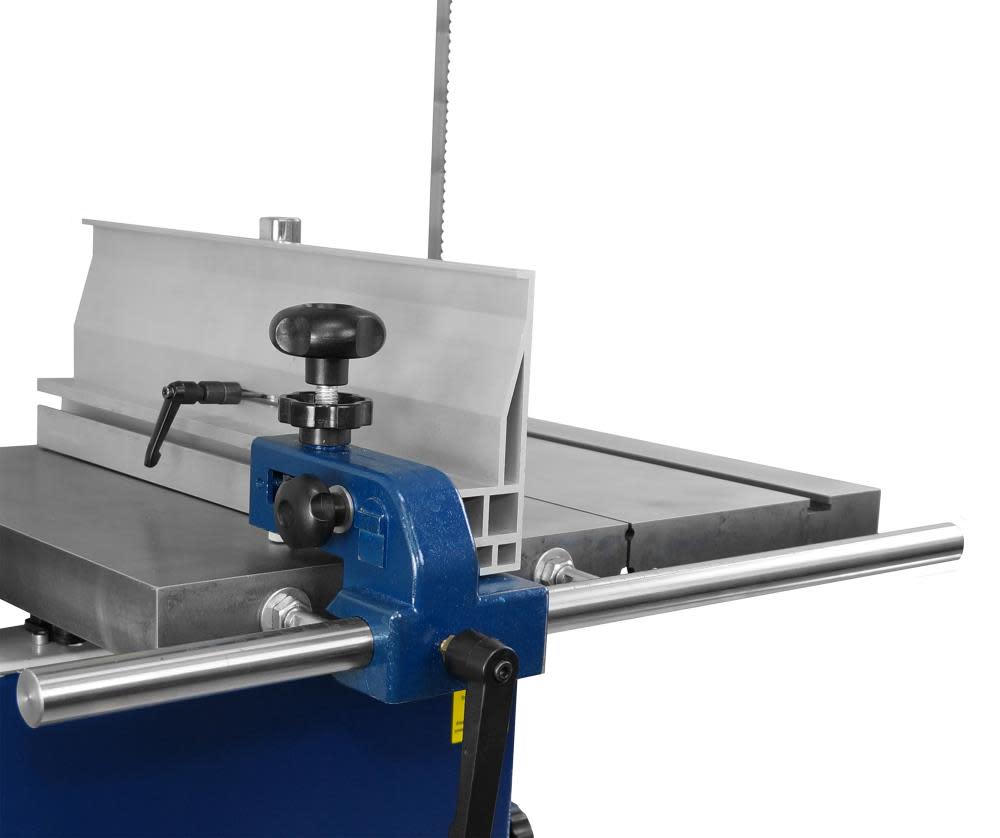

14 In. deluxe Bandsaw with many patent pending features that professionals will enjoy including spring-loaded tool-less blade quids, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base.
Features
Rugged welded steel column and frame
Balanced cast iron drive wheels
Bandsaw capacity 13 In.
Dual blade speed ranges – 1445 / 2950 fpm
Specifications
Acme Tools Brand Name
RIKON
Acme Tools Part Number
10-326
Amperage (A)
14.0
Assembled Weight (lbs)
285.0
Band Saw Frame Material
Steel
Band Saw Type
Stationary

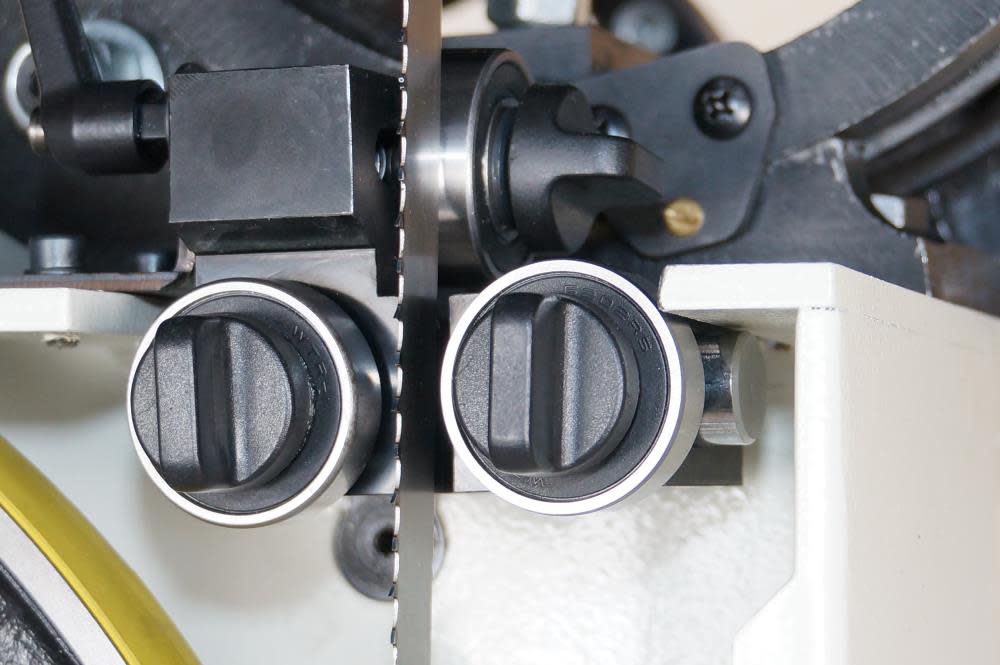

Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color / Finish
Blue
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
China
Cutting Capacity Height (in)
13.0
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4.0
ETL Listed
Yes

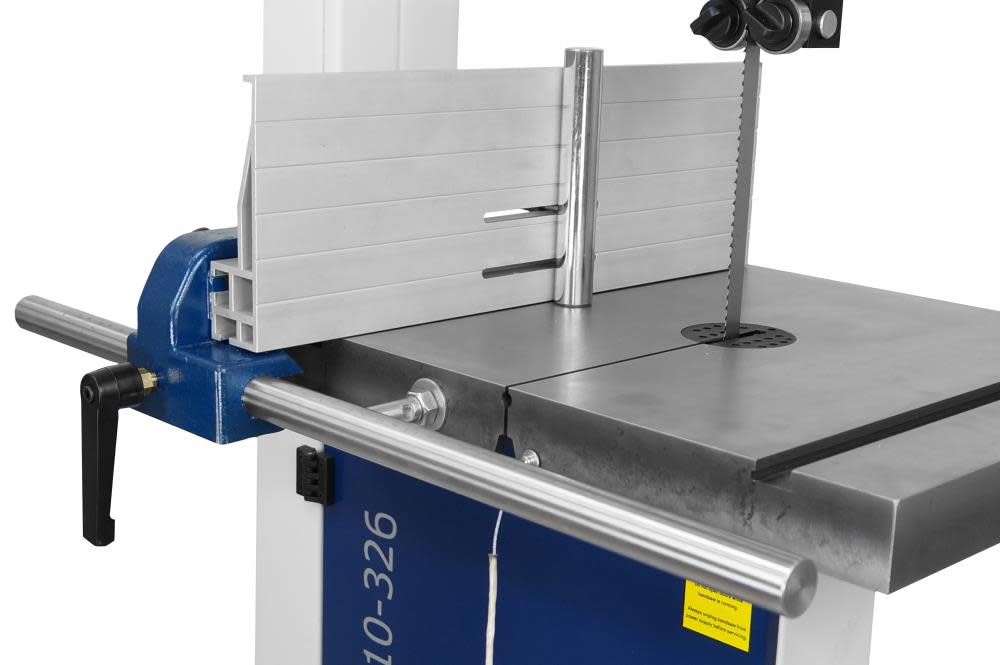

Fence Included
Yes
Horsepower (hp)
1.75
Internal Supplier Part #
10-326
Internet Product Code (IPC)
CD600D44E5B
Manufacturer Warranty
5 Year
Material
Cast Iron
Maximum Blade Length (In)
111.0
Maximum Blade Width (In)
0.75
Maximum Feet Per Minute
2950.0
Maximum RPM
2950.0
Micro Adjust Blade Guides Bottom
No
Micro Adjust Blade Guides Top
No
Minimum Blade Length (in)
111.0
Minimum Blade Width (in)
0.19
Minimum Feet Per Minute
1445.0
Package Depth
54.5
Package Height
23.625
Package Weight
293
Package Weight (lbs)
293
Quick Tensioning System
Yes

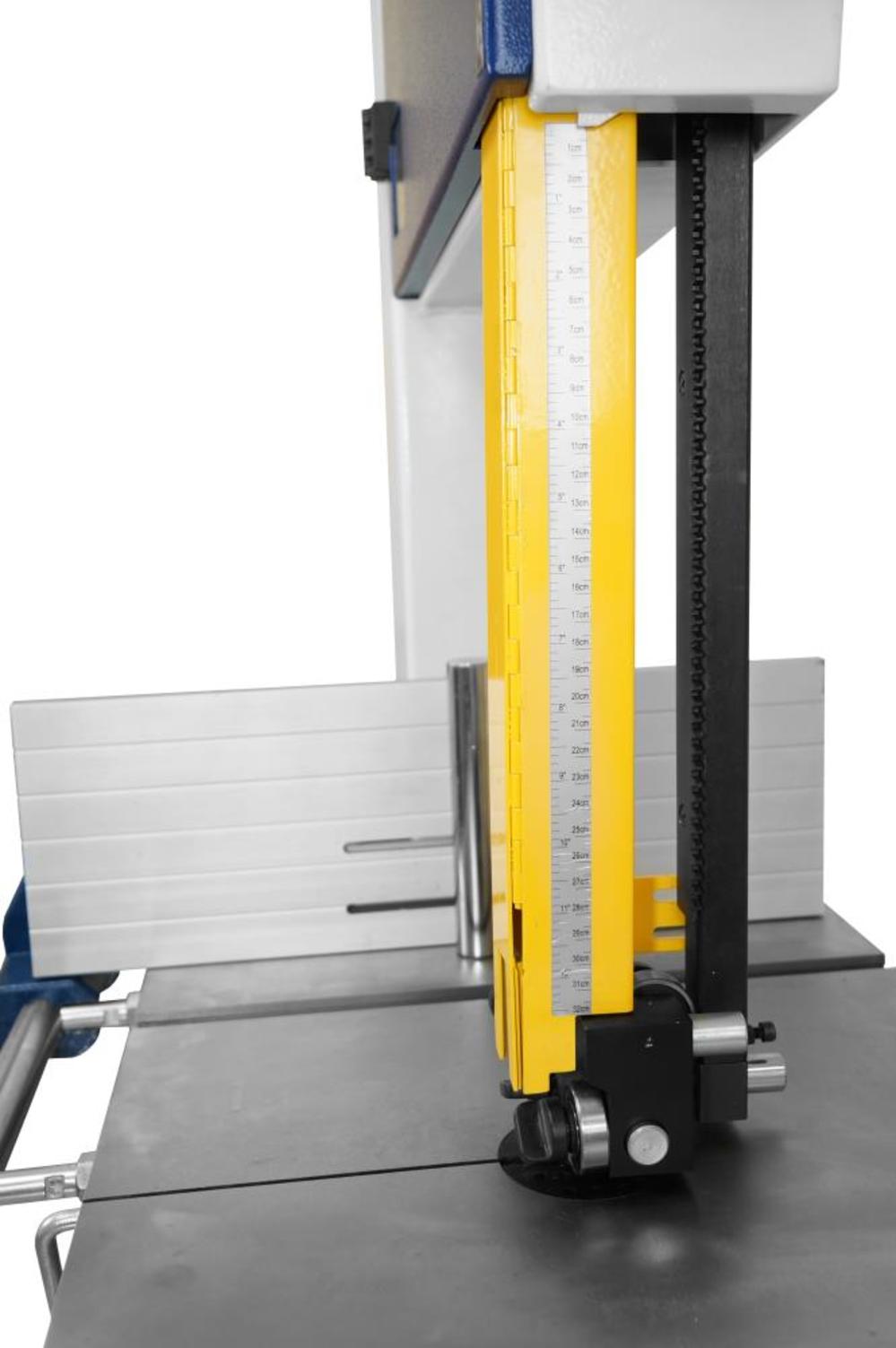

Rack & Pinion Guide Post Adjustment
Yes
Saw Wheel Material
Cast Iron
Speeds
2
Stand Included
Yes
Table Height (in)
40.5
Table Height From Floor (In)
40.5
Table Length (in)
15.75
Table Material
Cast Iron
Table Tilt Right (Deg)
45.0
Table Width (in)
21.5
Thrust Bearing Contact Point
Edge
Tire Cleaning Brush
Yes
UL Listed
No
Variable Speed
No
Voltage
115/230 Volts
Wheel Spoke Count
9
