Description

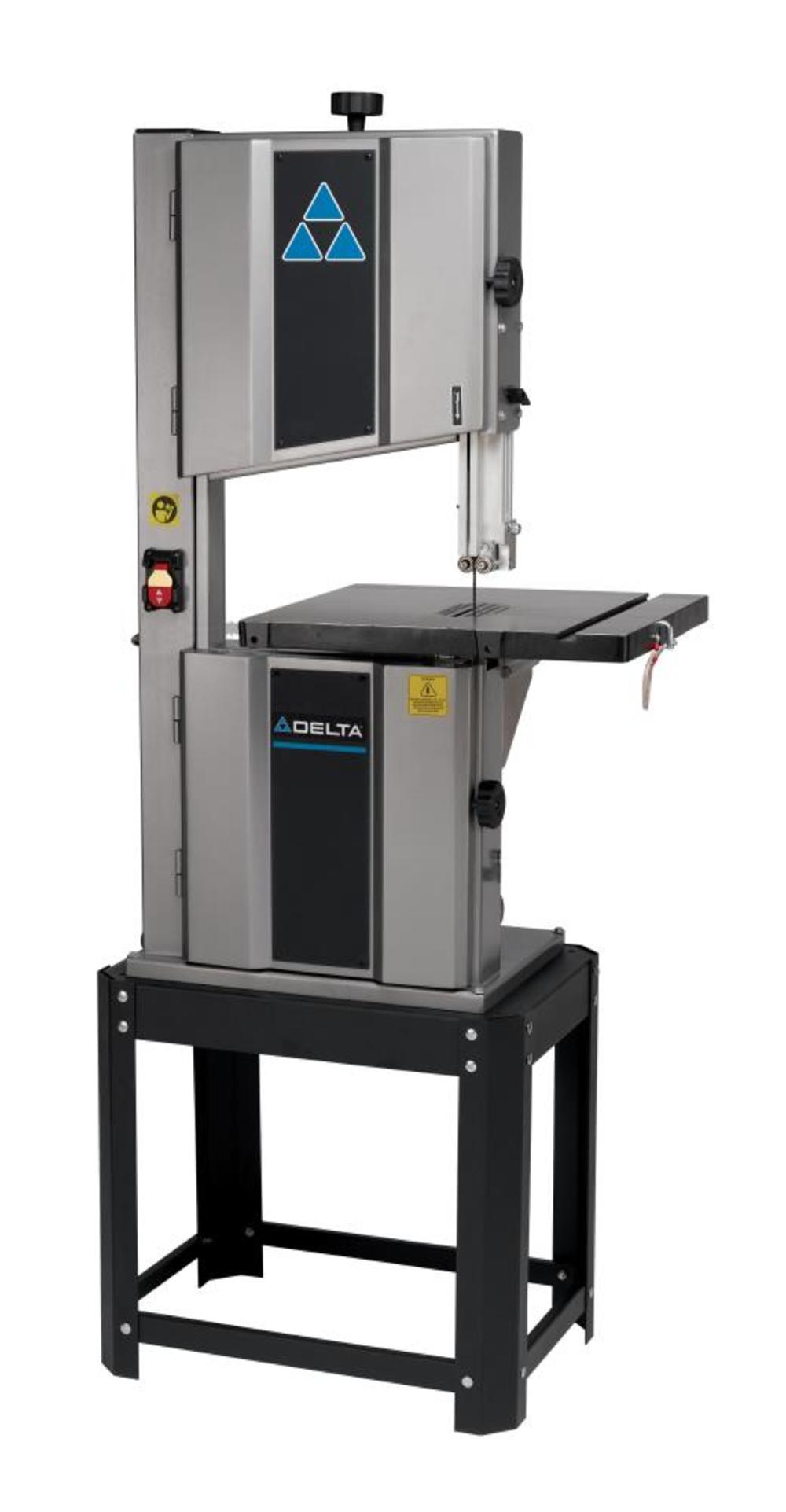

14 IN 1 HP Steel Frame Band Saw
Delta’s heritage in band saws go back to 1934. Our new steel framed band saw is a workhorse. Cut curves, resawing, rip, cross cut, angles and compound cuts with precision and accuracy.
Features
Heavy duty steel from design reduces flexing for accuracy
Aluminum trunnion table support for lasting durability
1 HP, 115 V/230 V, 1 phase TEFC motor for the power to easily cut wood and metal
Two speed, 1,620 FPM and 3,340 FPM for versatility in cutting a variety of materials and thicknesses allowing operator to more control. easy tensioning system for quick set up

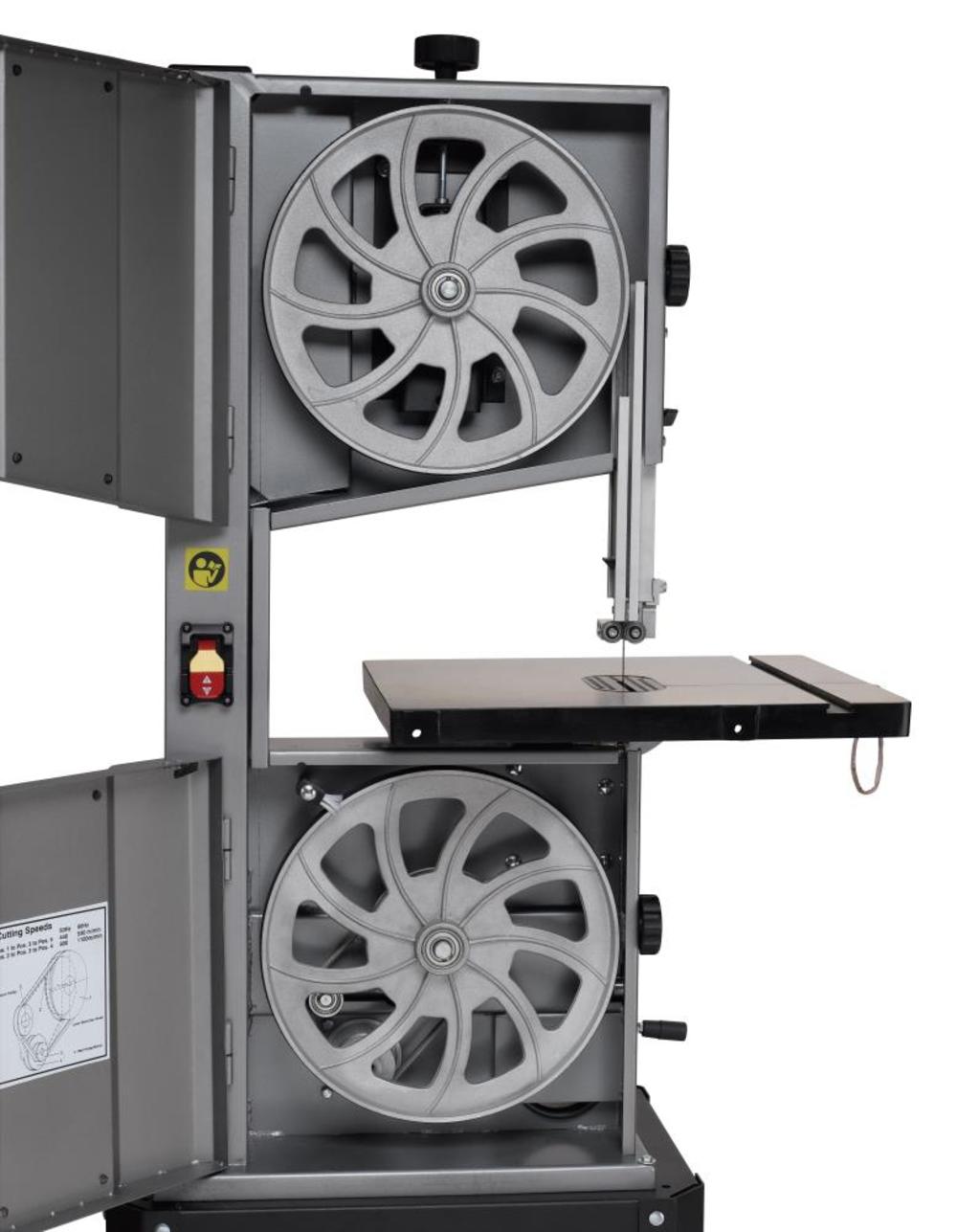

Durable aluminum rubber coated none spoke wheels are precision balanced for superior blade tracking and smooth operation
Max cutting capacity up to 13-5/8 In. wide and 6 In. thick stock

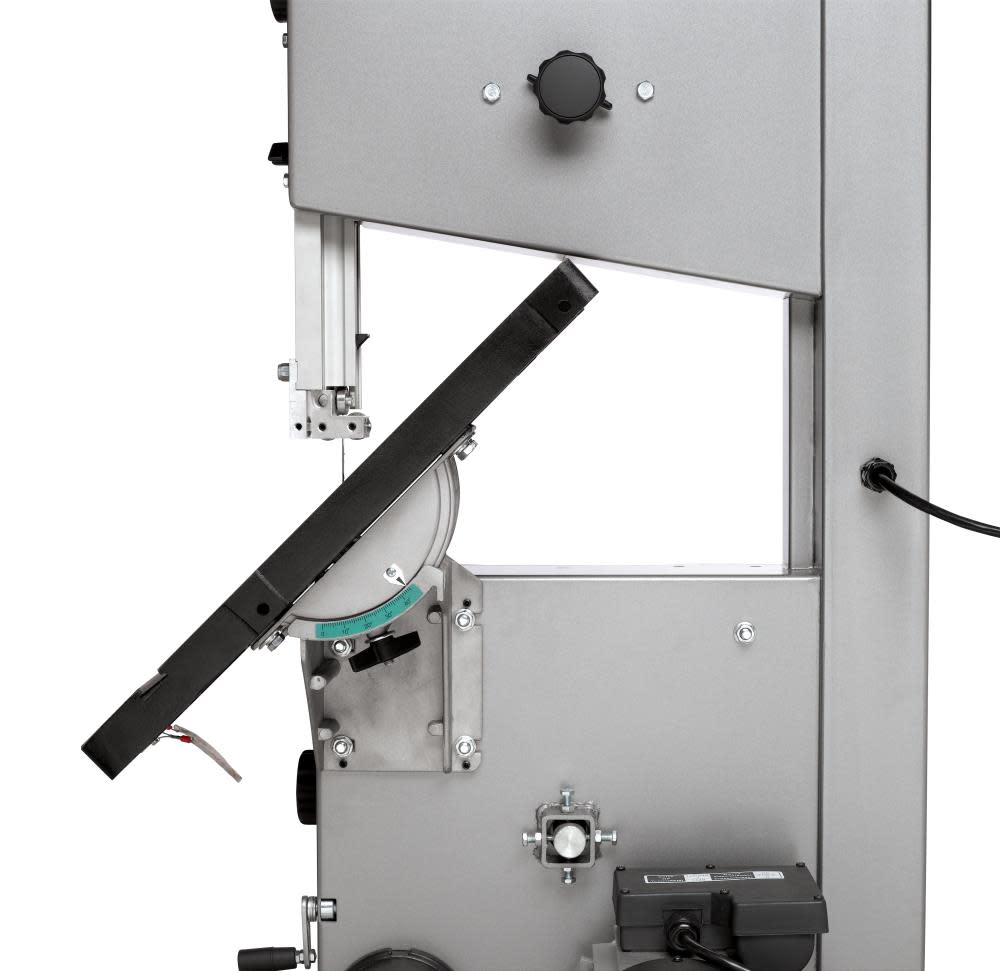

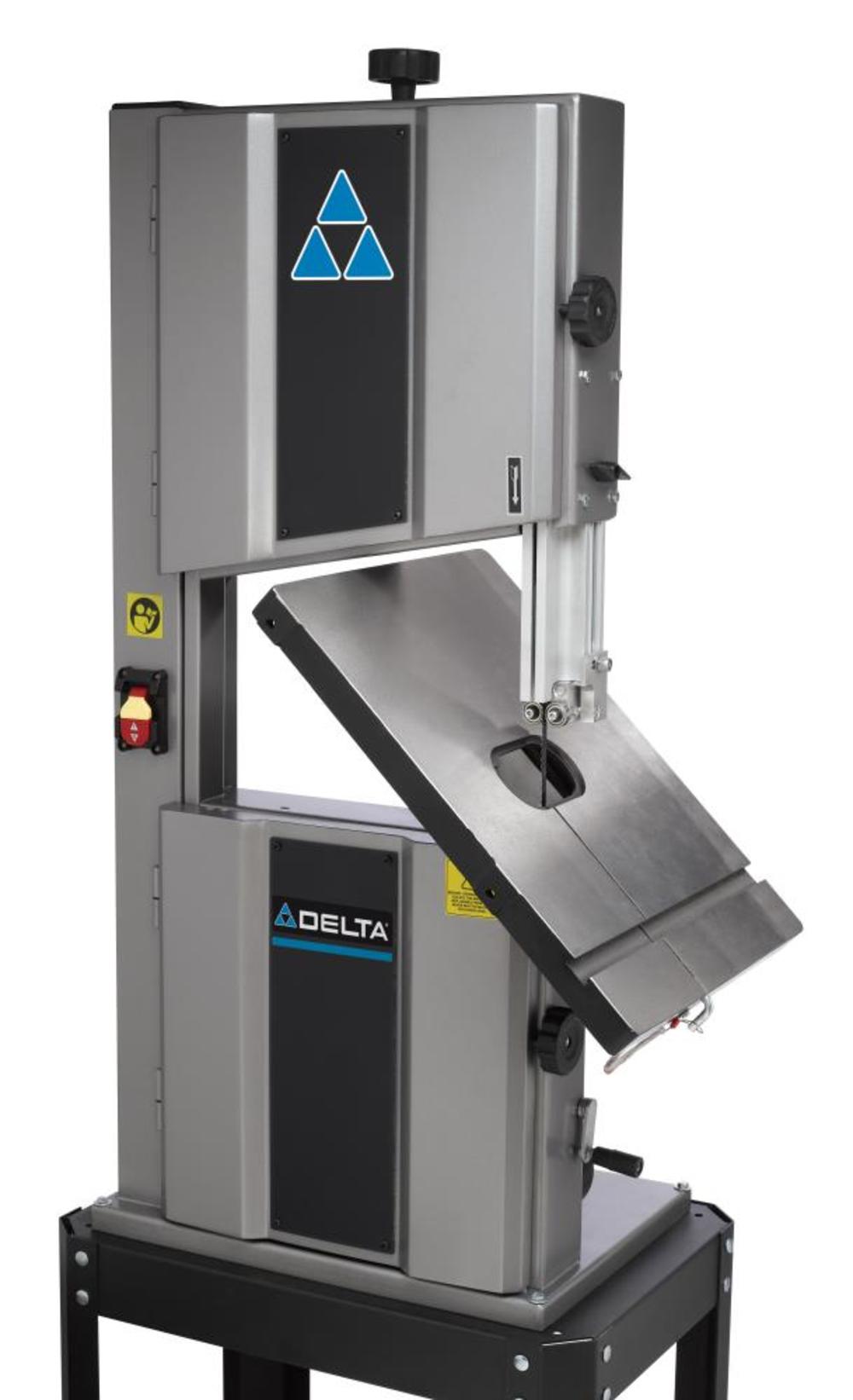

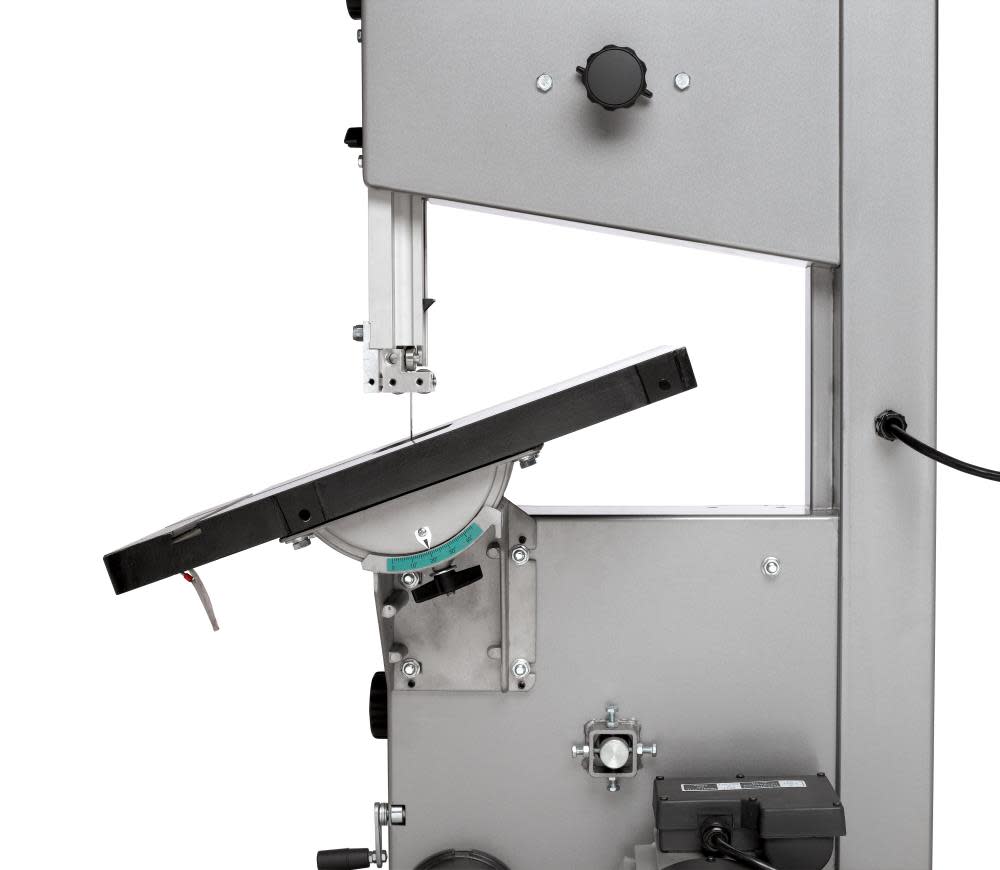

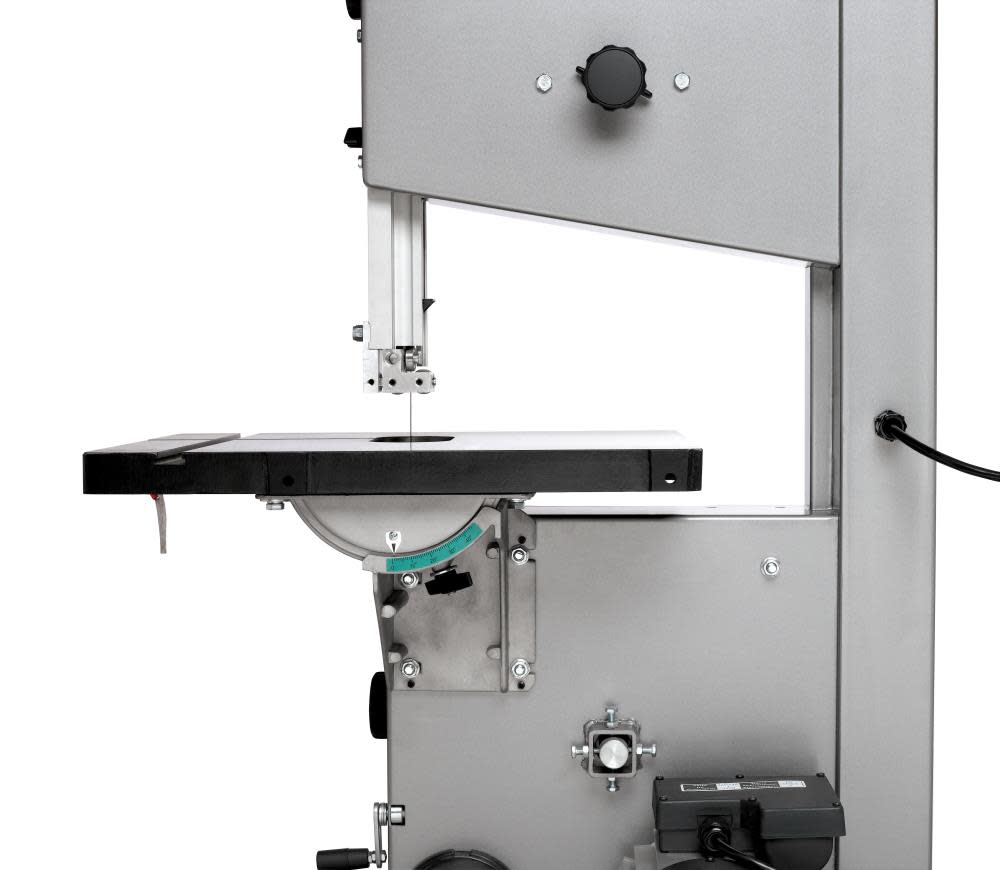

Oversized 15-3/4 In. x 18-7/8 In. precision ground cast iron table with t-slot miter capability tilt 3° left and 45° right with a positive stop at 90° for ample work support and the versatility to accurately cut angles
Standard size t-slot accepts all 3/4 In. x 3/8 In. miter gauges
Poly V-belt drive for smooth operation, consistent power transfer and will not “take a set” when left under tension

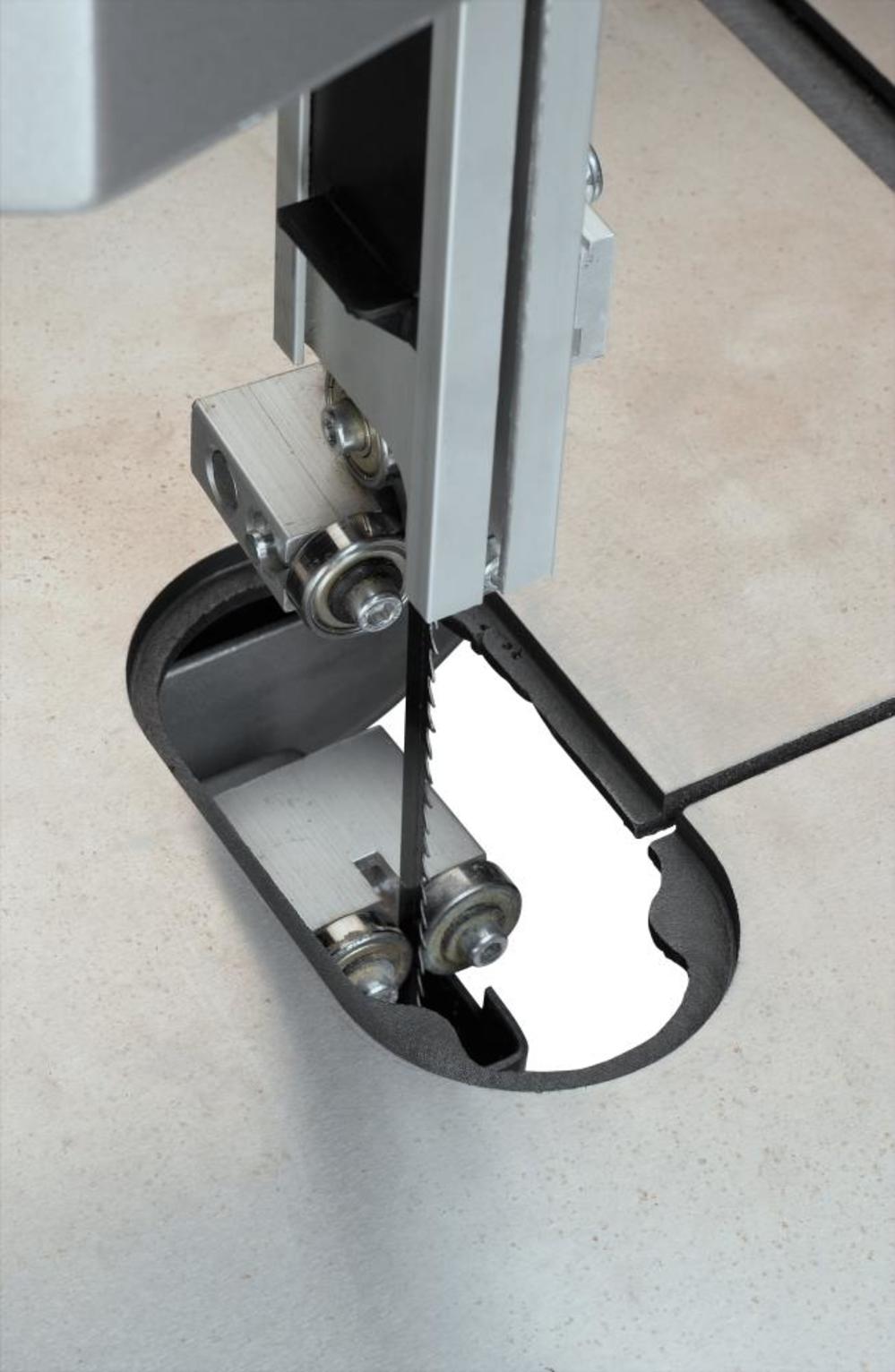

Larger table insert provides more visibility when changing blade and adjusting lower guide
Dust brush keeps blade clean during use
Conveniently located switch with lock out
Special knob design on upper and lower doors helps prevent injury by forcing door completely open or securely closed
Specifications
Acme Tools Brand Name
DELTA
Acme Tools Part Number
28-400
Amperage (A)
9
Application
Wood Cutting Band Saw
Assembled Weight (lbs)
164.9
Band Saw Frame Material
Steel
Band Saw Type
Stationary
Blade Guide Type
Bearings
California Proposition 65 Warning Required
Yes
Color / Finish
Gray
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
China
Cutting Capacity Height (in)
6
Dust Blower
No
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Fence Included
No
Horsepower (hp)
1
Internal Supplier Part #
28-400
Internet Product Code (IPC)
D9EFF53C53D
Manufacturer Warranty
5 Year
Material
Cast Iron
Maximum Blade Length (In)
92.5
Maximum Blade Width (In)
0.75
Maximum Feet Per Minute
3340
Maximum RPM
1725
Micro Adjust Blade Guides Bottom
Yes
Micro Adjust Blade Guides Top
Yes
Minimum Blade Length (in)
92.5
Minimum Blade Width (in)
0.125
Minimum Feet Per Minute
1620
Motor Bearings
Ball
Motor Type
Induction
Package Weight
180.4
Package Weight (lbs)
180.4
Quick Tensioning System
No
Rack & Pinion Guide Post Adjustment
Yes
Saw Wheel Material
Aluminum
Speeds
2
Stand Included
Yes
Table Height (in)
40.75
Table Height From Floor (In)
40.75
Table Length (in)
15.75
Table Material
Cast Iron
Table Tilt Left (Deg)
3
Table Tilt Right (Deg)
45
Table Width (in)
18.875
Thrust Bearing Contact Point
Edge
Tire Cleaning Brush
Yes
UL Listed
Yes
Variable Speed
Yes
Voltage
115/230 Volts
Wheel Spoke Count
9
Work Light
No
