Description

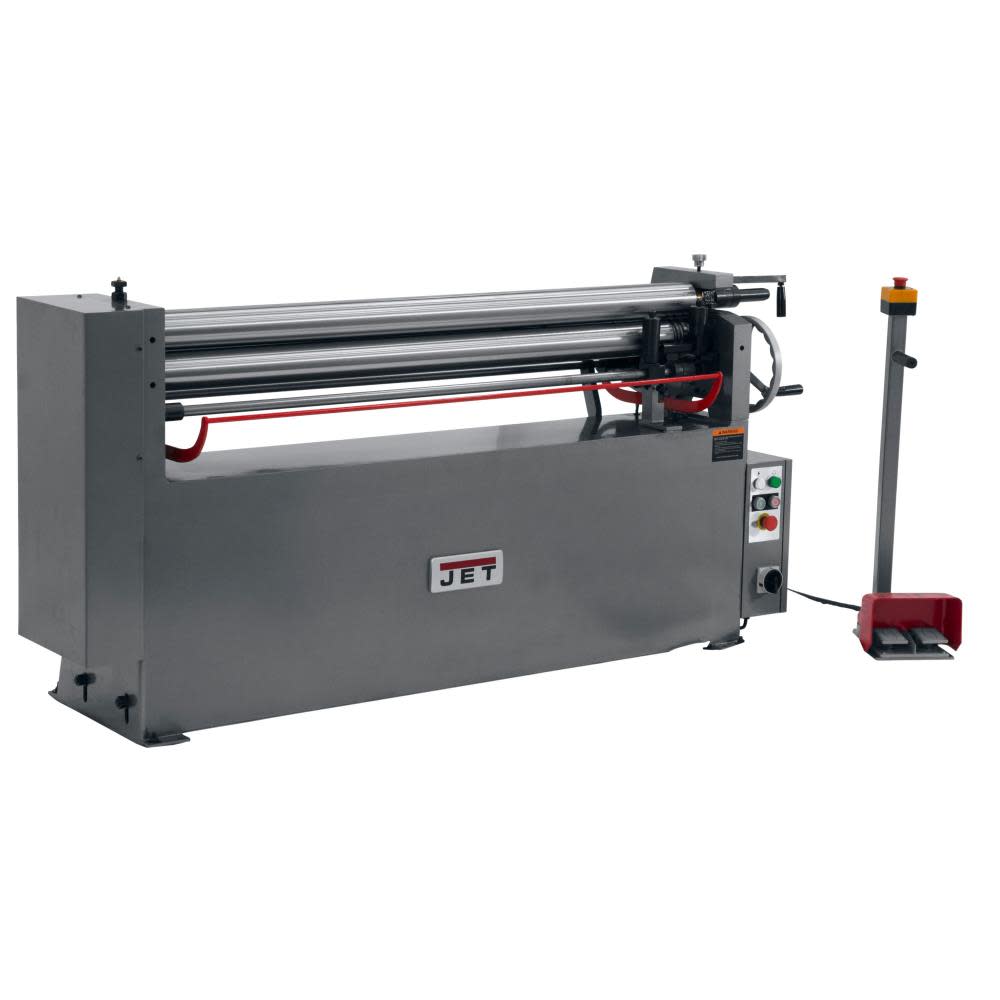

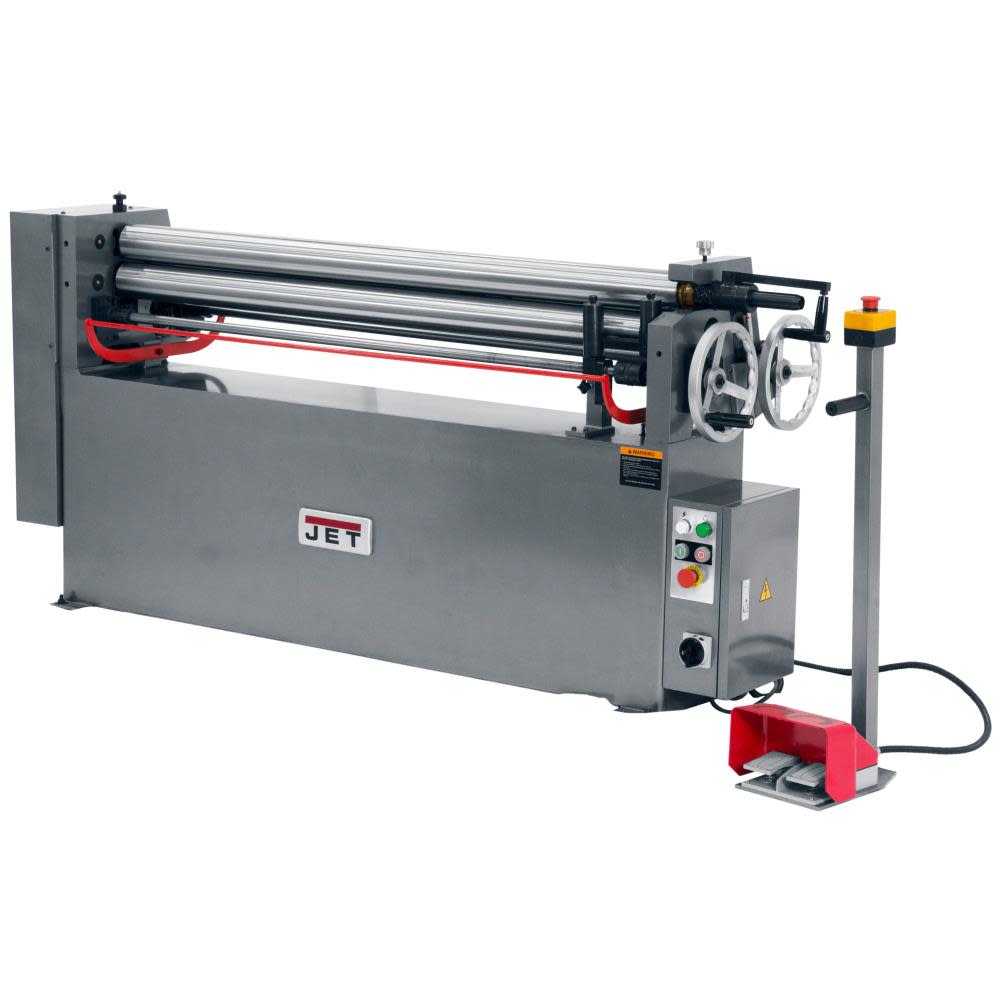

14 Gauge 60 In. Electric Plate Roller
The design employs three rolls with two drive rolls, made of precision turned, ground and polished carbon steel. Jet electric plate rollers combine weight, rigidity, strength, precision, and simplicity, for metal forming in any general fabrication, school, racing or HVAC shop.
Features

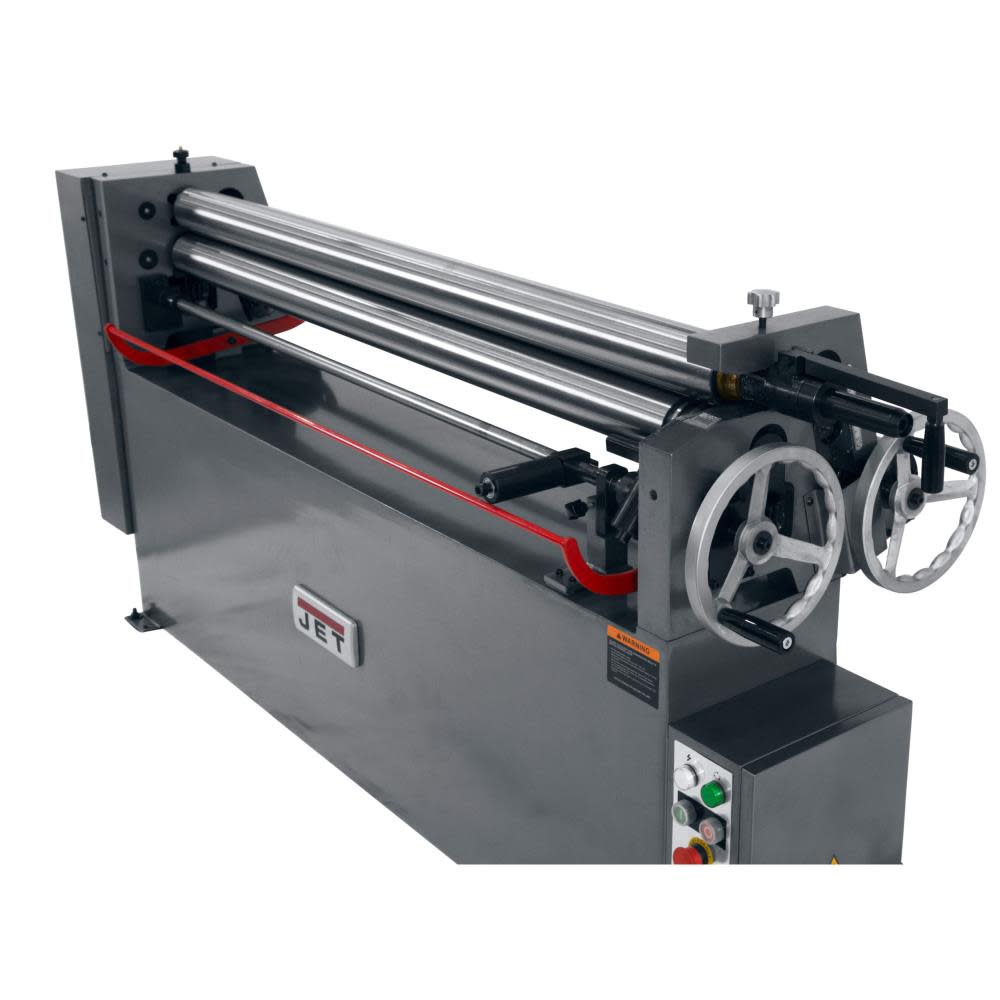

Three-roll design with two drive rolls
Rolls are made of hardened polished high carbon steel
Heavy duty frame and base insure precise sheet metal rolling
CSA/US: following strict guidelines and electrical requirements, this Jet plate roller is CSA/US certified

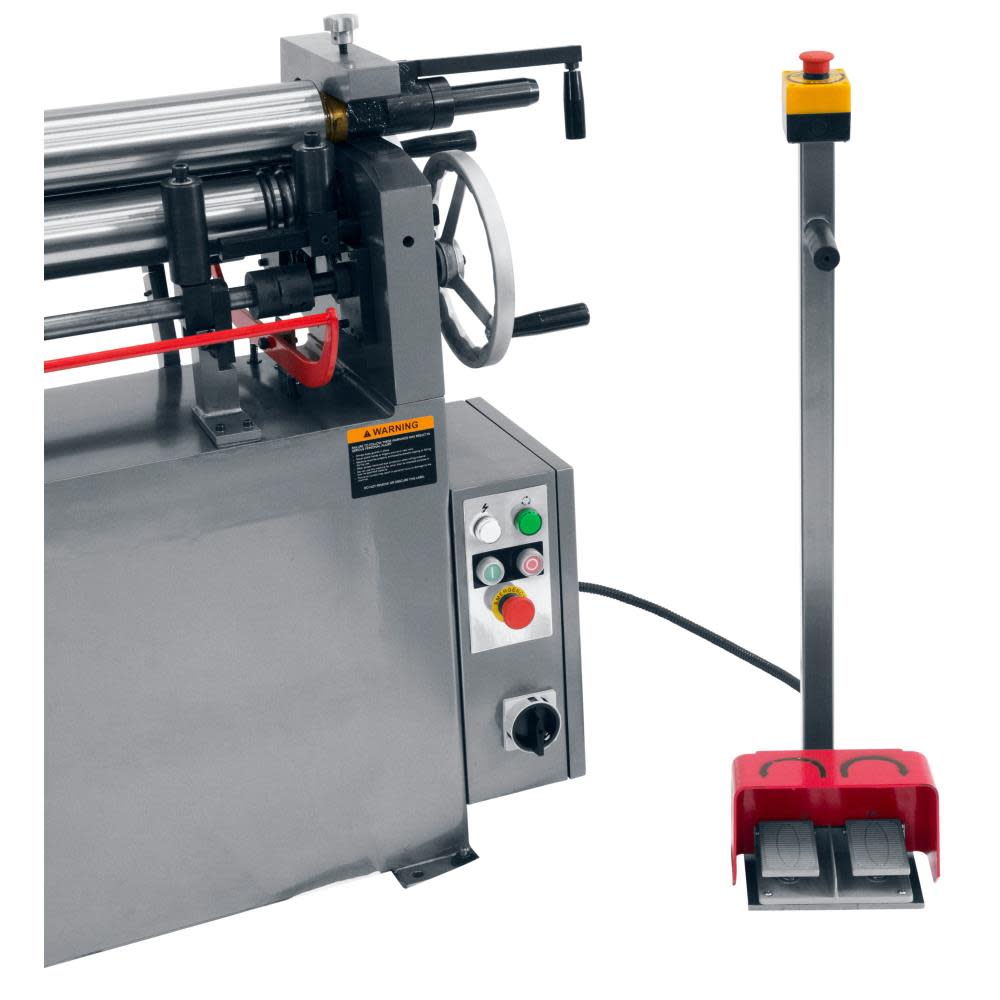

Foot-control assembly with emergency-stop

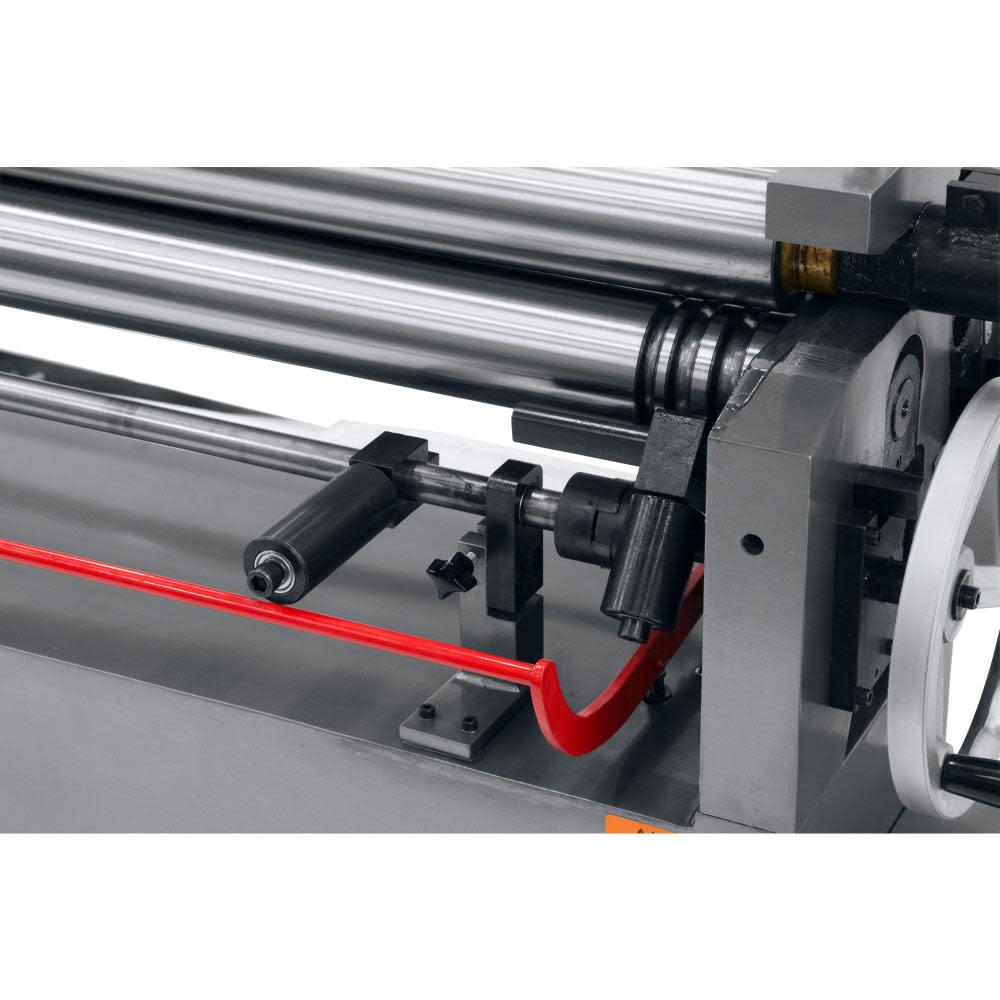

Integrated safety bar system along entire bending length permits quick stoppage of machine

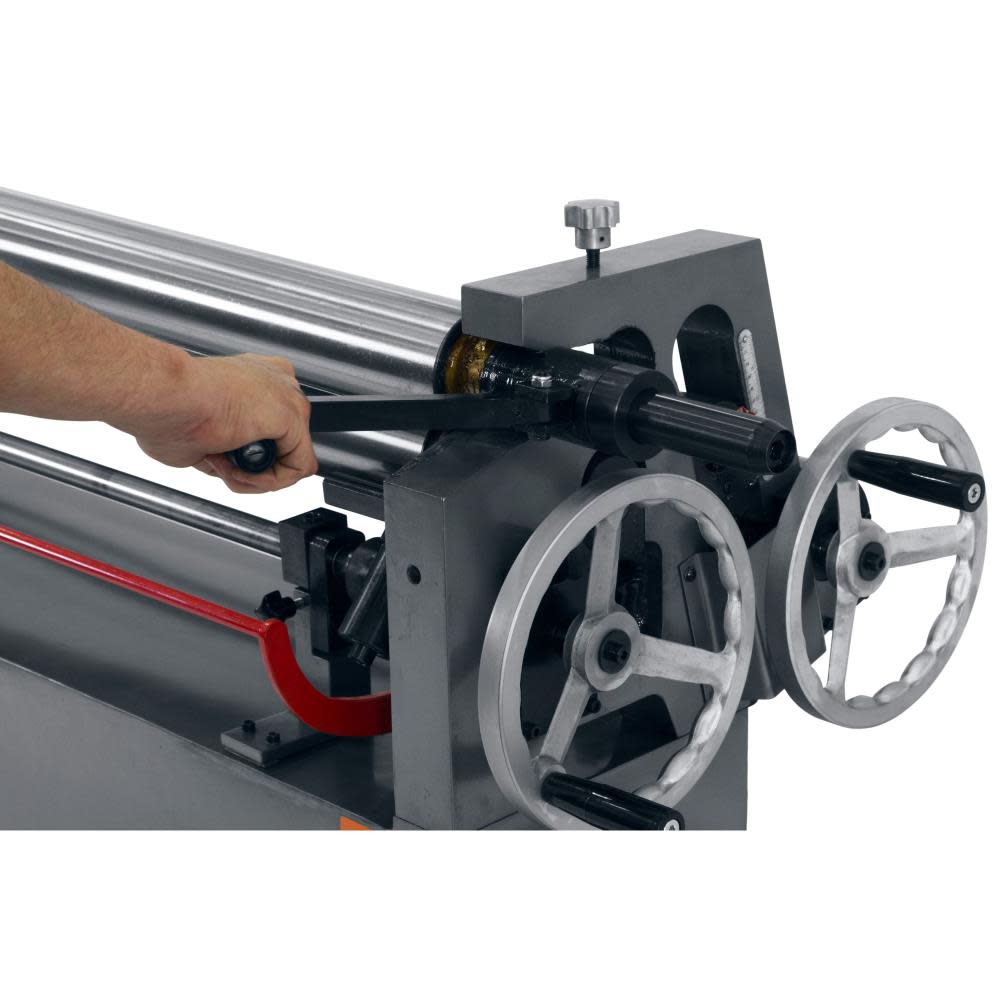

Forming roll has attached position scale for equal pressure adjustment
Weight and rigidity; scale and precision; strength and simplicity define exceptional comfort and ease of operation
Easy to use forward and reverse foot pedal
Specifications
Acme Tools Brand Name
JET
Acme Tools Part Number
756030
Assembled Weight (lbs)
610
California Proposition 65 Warning Required
Yes
Color / Finish
Grey/Metal
Country of Origin
China
Gauge Capacity (ga)
14
Height (in)
39.8
Internet Product Code (IPC)
E0646373A3B
Length (in)
82.3
Manufacturer Warranty
2 Year
Material
Frame and Stand Steel, Rolls high-carbon steel, ground and polished
Maximum Width Capacity (in)
60
Number of Rollers
3
Package Contents
3 Rollers
Package Depth
87.5
Package Height
48
Package Weight
1543
Package Weight (lbs)
700
Power Source
Electric
Swivel Wheel
No
Weight (lbs)
610
Width (in)
22

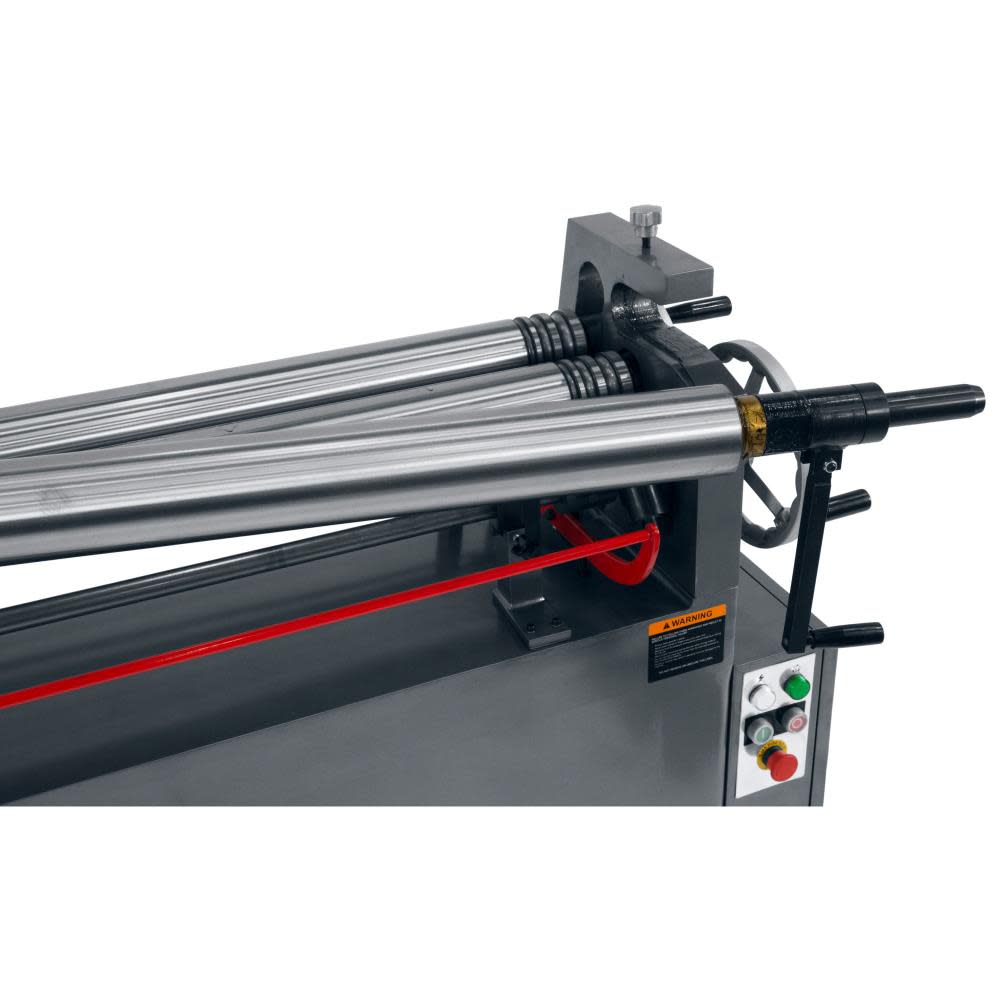

Wire Grooves
Yes
