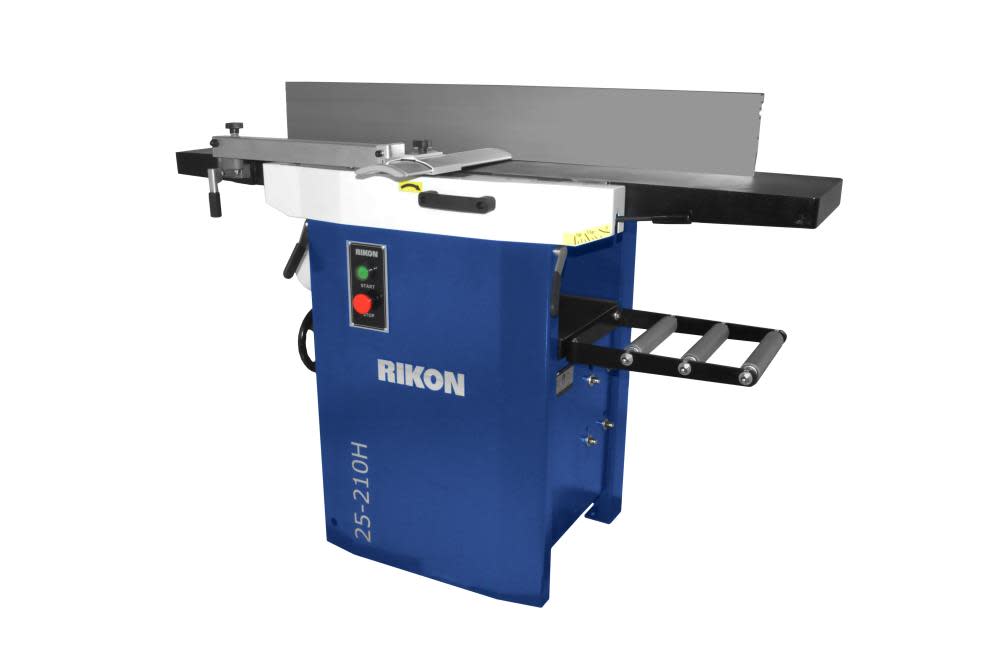

12 In. Planer/Jointer w/Helical Cutter Head
12 In. planer / jointer #25-210H are equipped with a larger 12 In. cutter head and powerful 3 HP motors that make quick work in milling the hardest, or widest rough-sawn lumber. A favorite of production shops, the jointer and planer tables are made of heavy, cast iron and machined smooth for efficient movement through the cutters. Unique, one-piece jointer tables easily lift up and out of the way for planer use, or to work on the cutter head. The #25-210H has a 4-row, helical cutter head with 56 four-sided, carbide insert cutters. 220 V motors require 3-wire electrical plugs to match your electrical receptacles.
Features

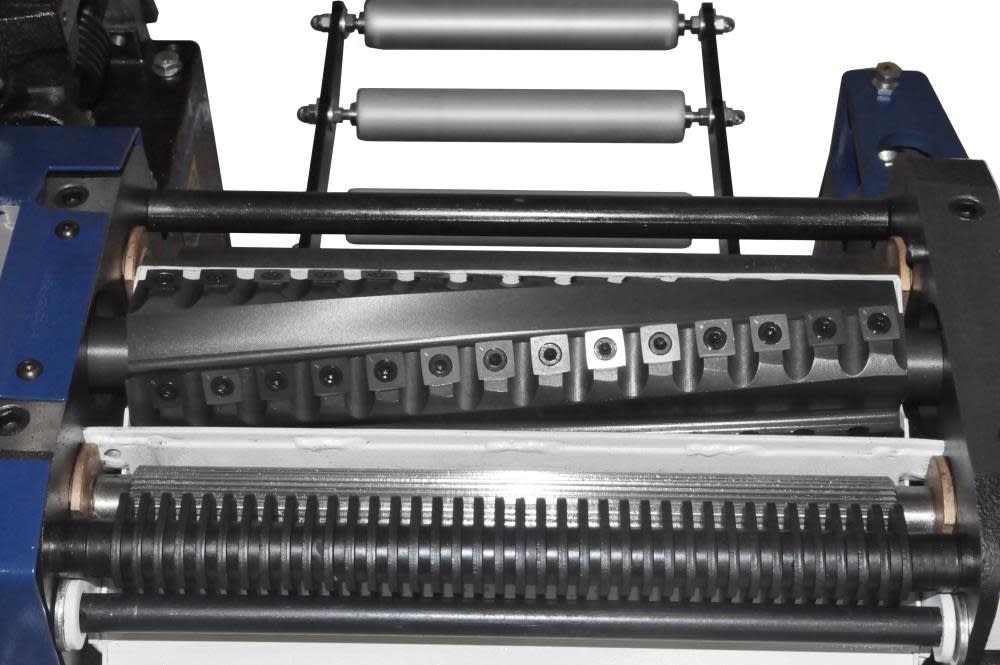

Helical cutter head with 56 carbide insert cutters. Each indexible insert has four pre-sharpened sides and can be easily changed/rotated if damaged or worn.
All metal construction with machined table surfaces

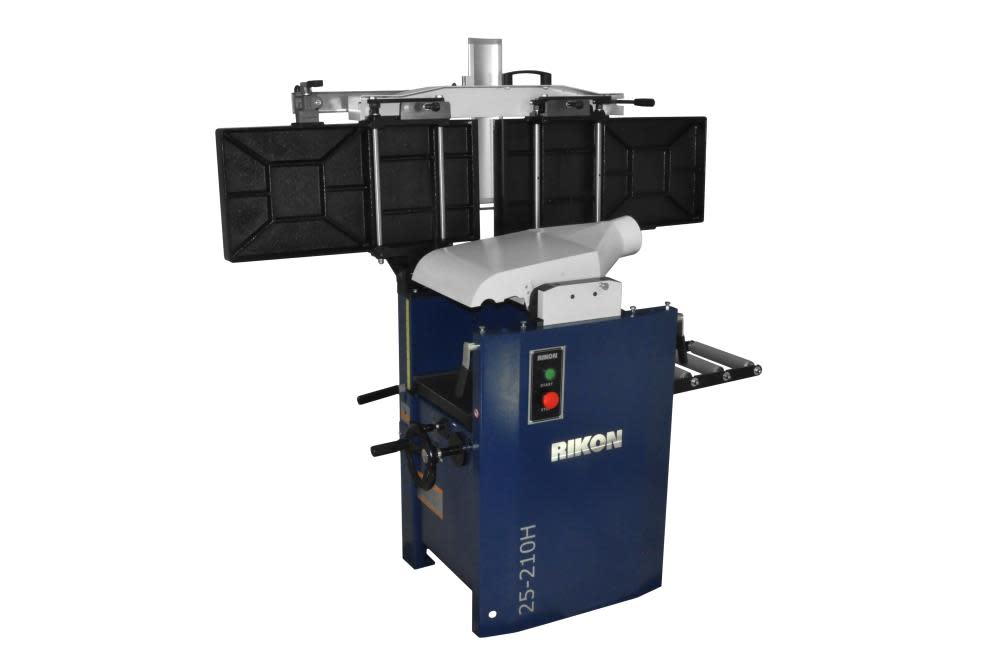

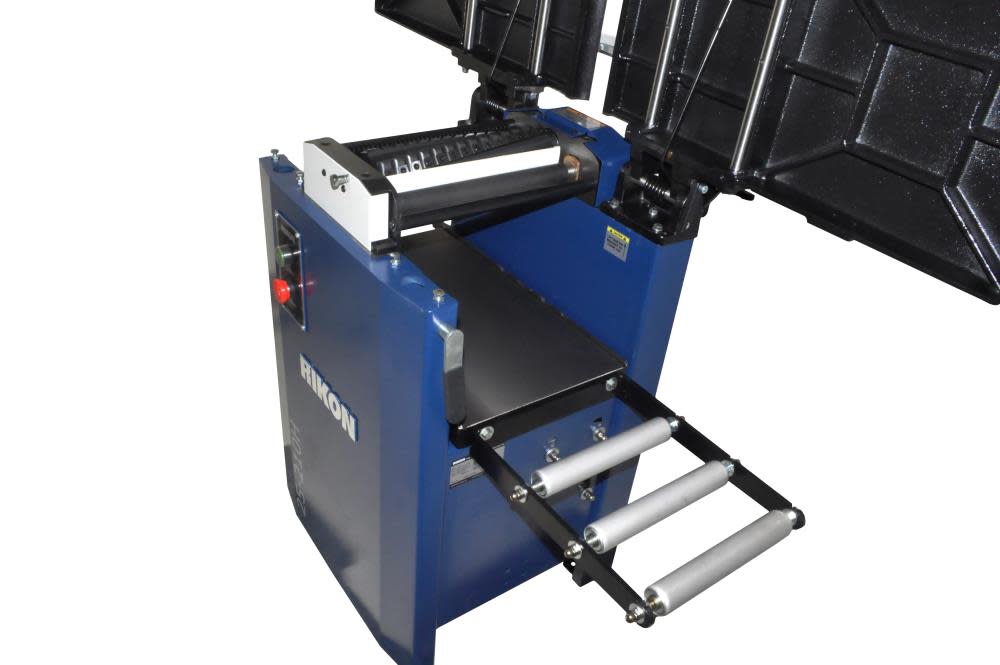

Jointer tables move for full access to cutter heads for knife insert changes

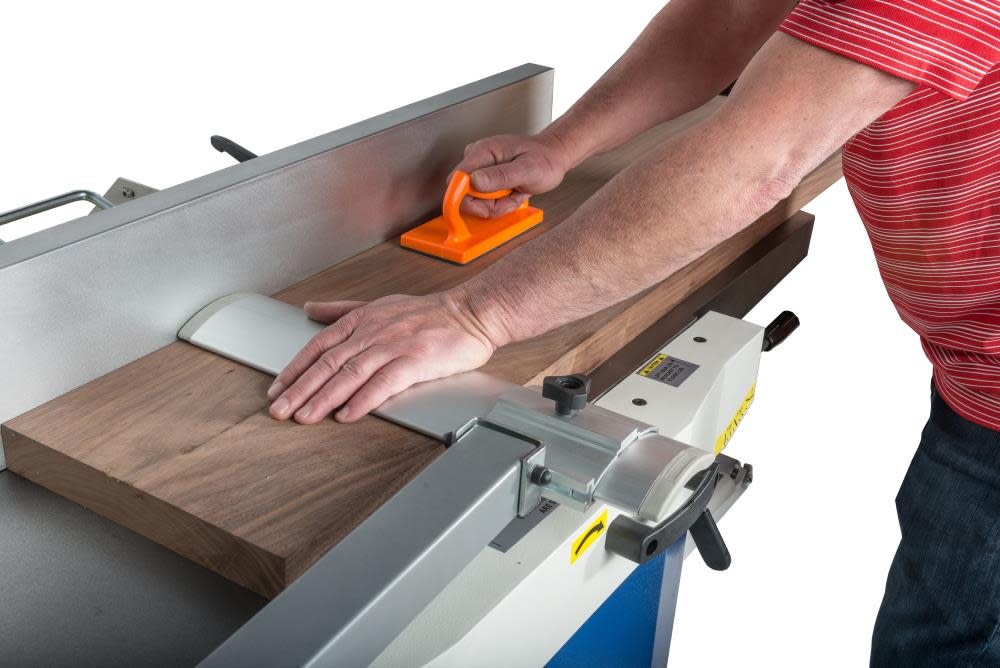

Sliding safety bar adjusts over jointer knives for best user protection
Specifications
Accessory Type
Combination Planer Jointer
Acme Tools Brand Name
RIKON
Acme Tools Part Number
25-210H
Amperage (A)
12.0
Assembled Weight (lbs)
494.0
Bench or Stationary
Stationary
Blade Cutting Material
Carbide
Blade Length (in)
0.59
Blade Thickness (in)
0.07
California Proposition 65 Warning Required
Yes
Color / Finish
Blue
Compatibility
25-210
Cord Length (ft)
6.0
Cordless / Corded
Corded
Country of Origin
China
Cuts Per Minute
20000
Depth Measurement System
Yes
Dust Port
Yes
ETL Listed
Yes
Feed Rate/s (Ft/Min)
23
Fence Height (in)
6.0

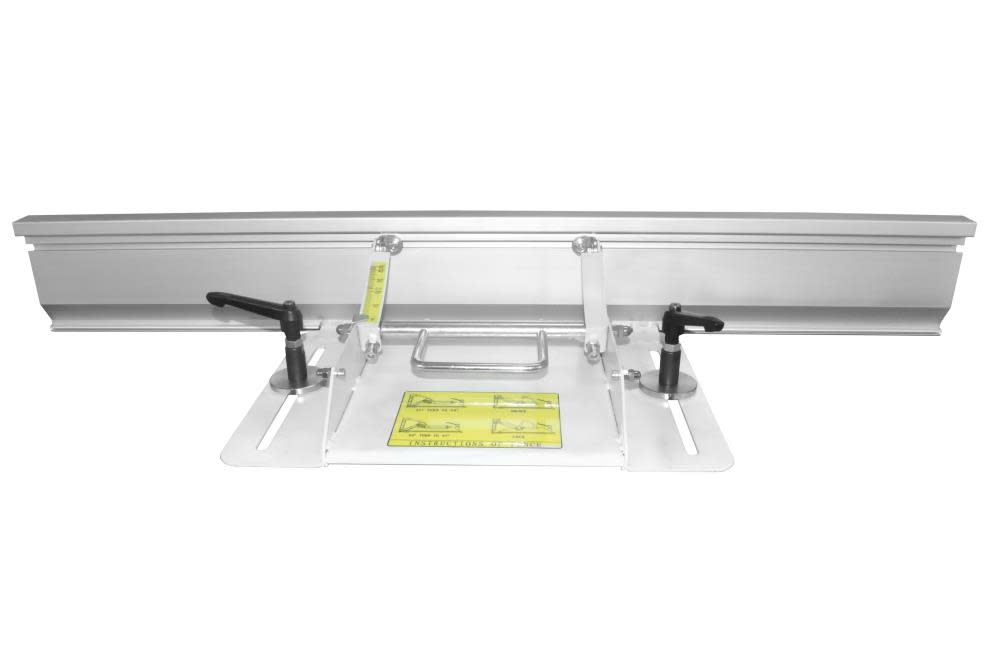

Fence Length (in)
43.0
Fence Tilt
Yes
Fence Tilt Range
0° to 45°
Internal Supplier Part #
25-210H
Internet Product Code (IPC)
93A3BD8C6F9
Manufacturer Warranty
5 Year
Material Cut
Wood
Maximum Board Thickness (in)
7.875
Maximum Speed (rpm)
3400.0
Motor Horsepower (hp)
3 HP
Overall Height (in)
39.5
Overall Length (in)
55.75
Overall Width (in)
22.5
Package Contents
Tool, Manual
Package Depth
58.375
Package Height
44.25
Package Weight
594
Package Weight (lbs)
594
Reversible
Yes
Set / Individual
Individual
Sharpenable
Yes
Switch Type
Push Switch
Table Height From Floor (In)
33.5
Table Material
Cast Iron
UL Listed
No
Unit Design
Closed Stand
Voltage
220 Volts
Weight (lbs)
494
