Description

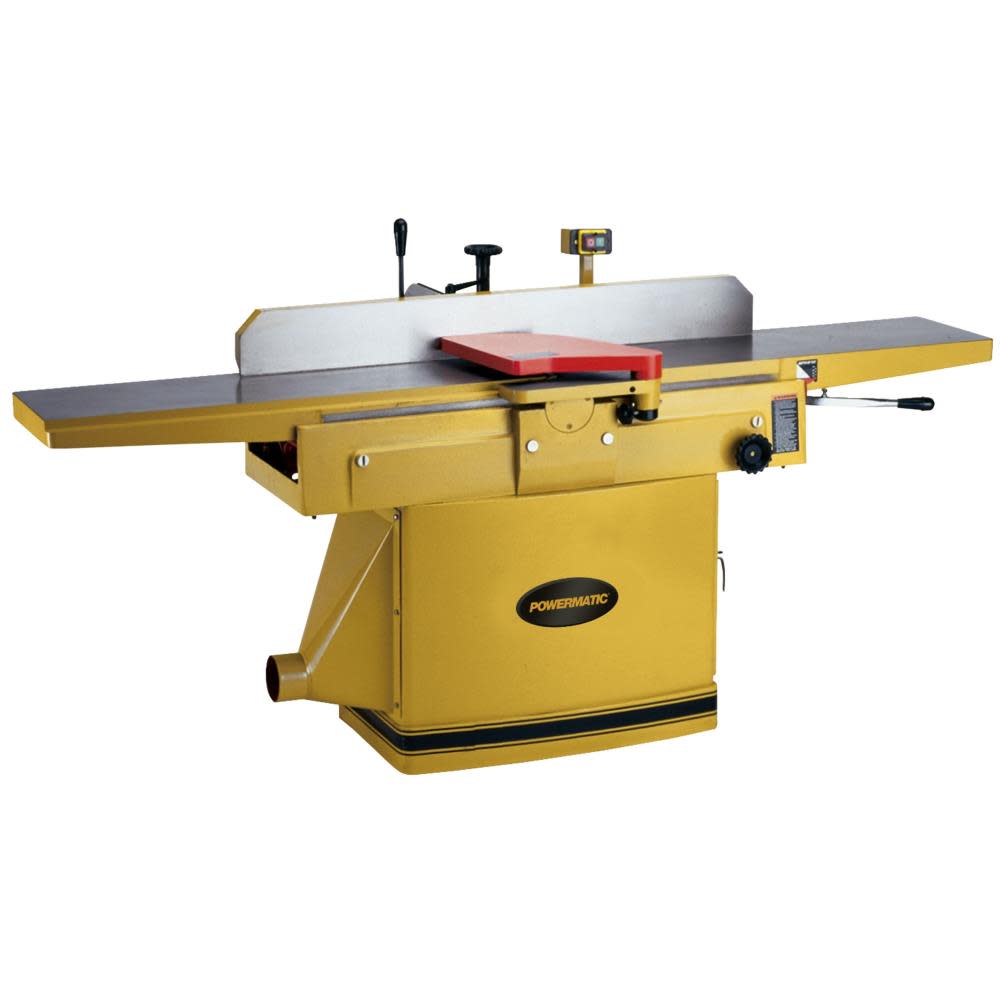

12 in Jointer, 3HP 3PH 230/460V, Helical Head
This 12″ jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutter head or the solid steel helical cutter head. The helical system makes fast work of knife changing and never needs adjustment.
Features
Helical cutter head with 2-sided carbide inserts for fast knife changes with no adjustments

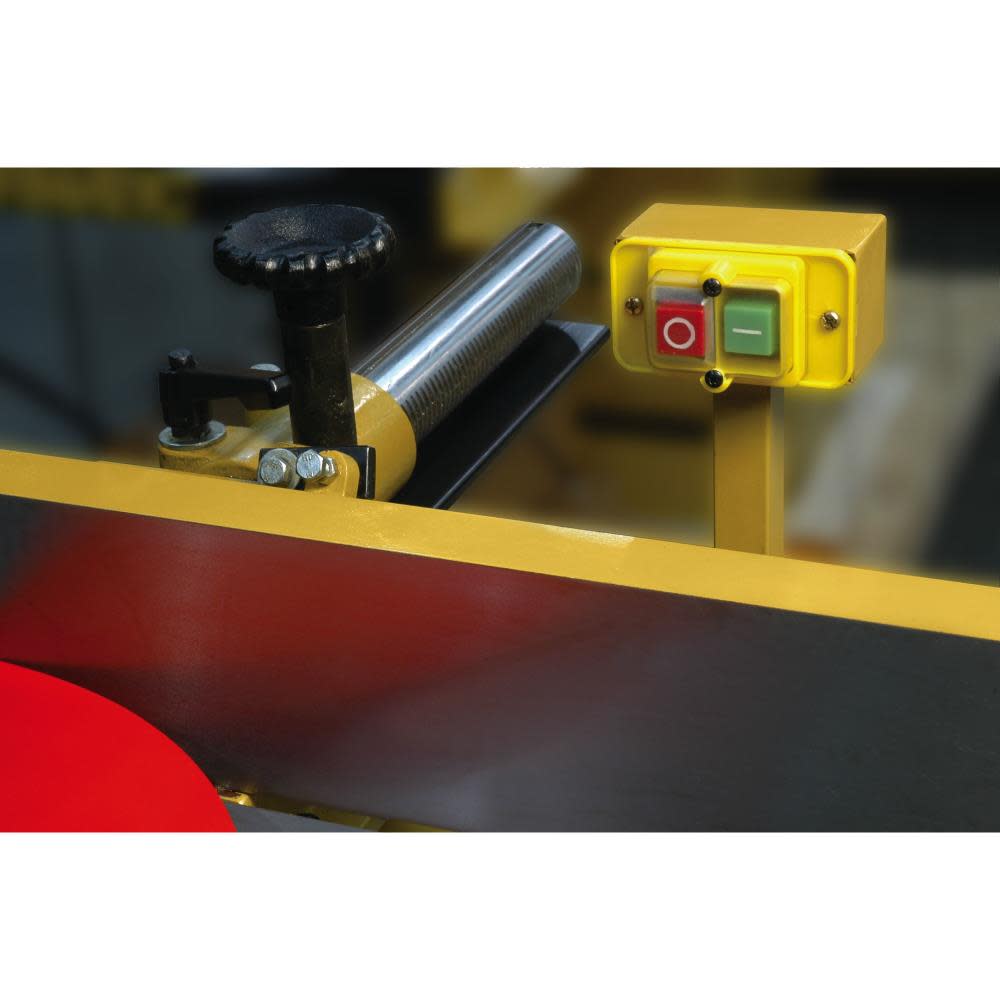

Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
Parallelogram design for close table-to-cutter head proximity and fast depth of cut adjustments
Large 84 x 12 table surface for heavy-duty work
Table “lips” on both sides of cutter head aid in noise reduction
Full size rabbeting ledge supports large workpieces for rabbets up to 3/4-in deep
Motor provides plenty of power
Cutter head guard
Heavy duty fence
Push blocks
Tool kit
460V operation requires an additional 460V magnetic switch, part PJ1285-109
