Description

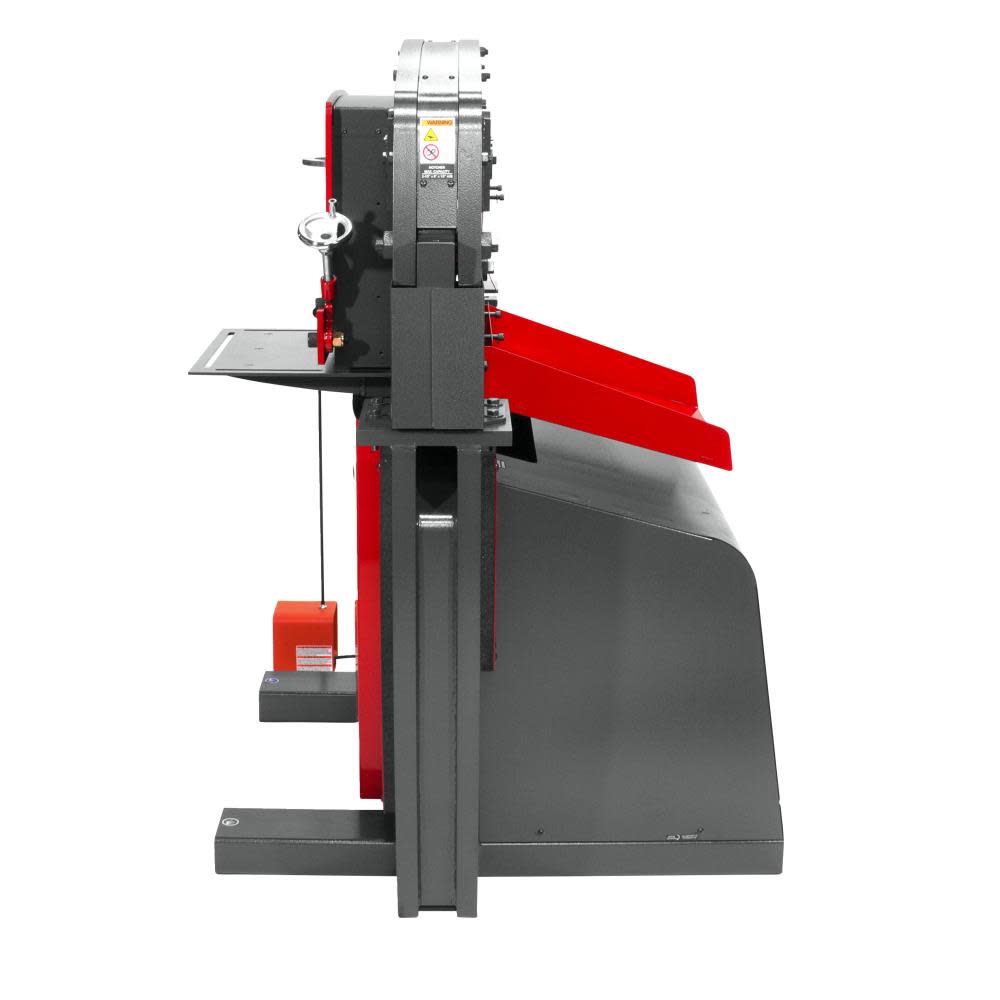

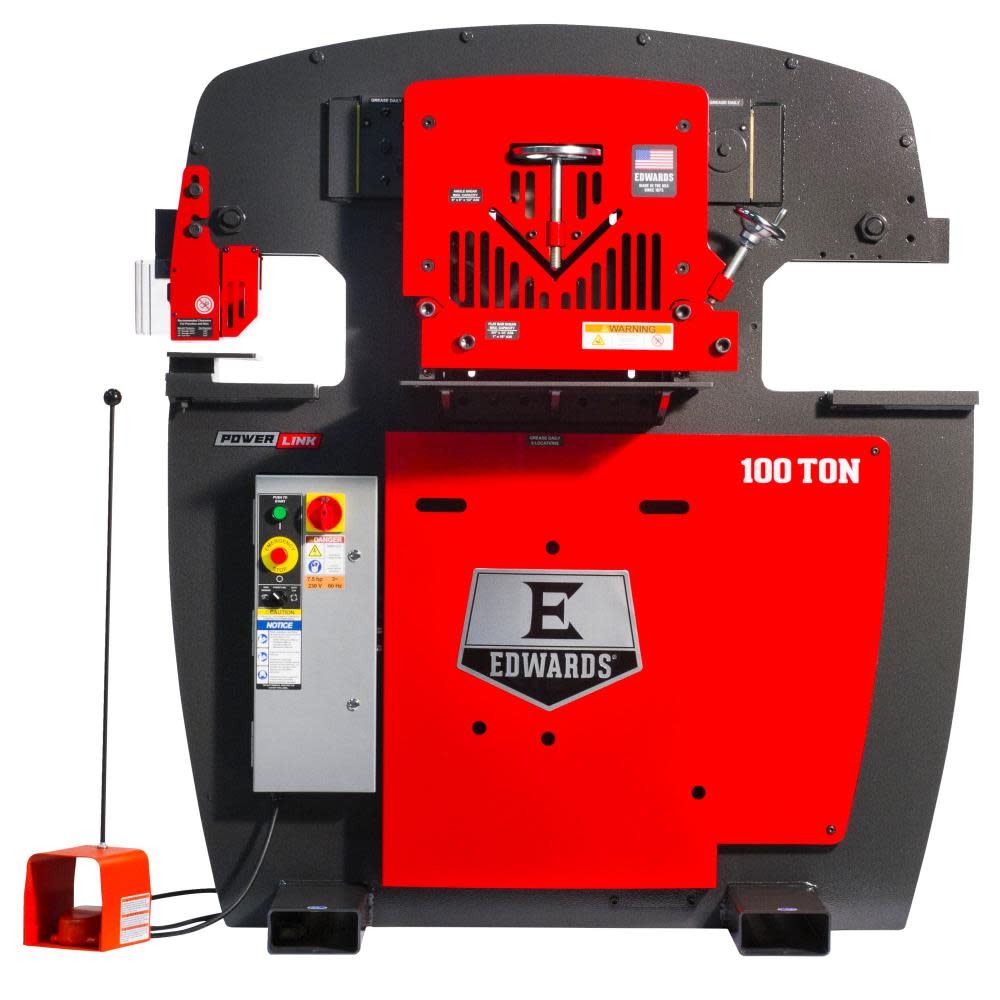

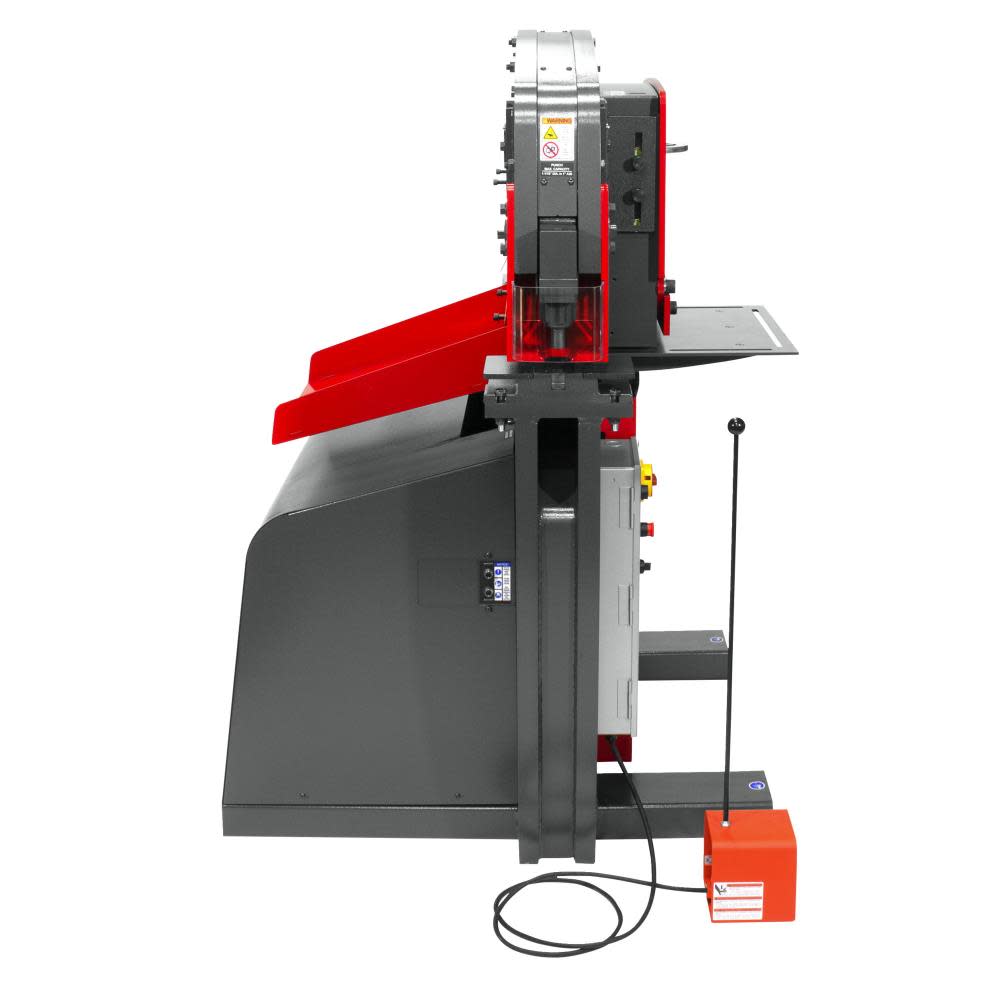

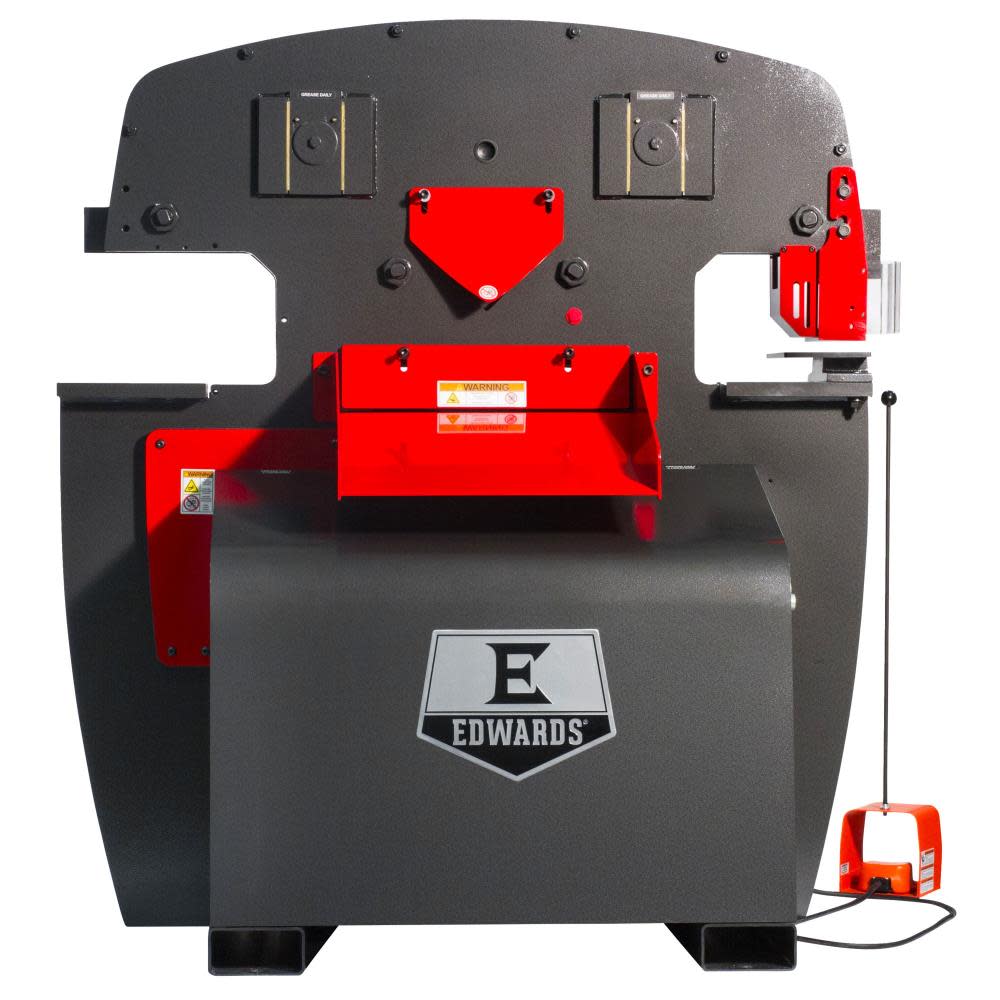

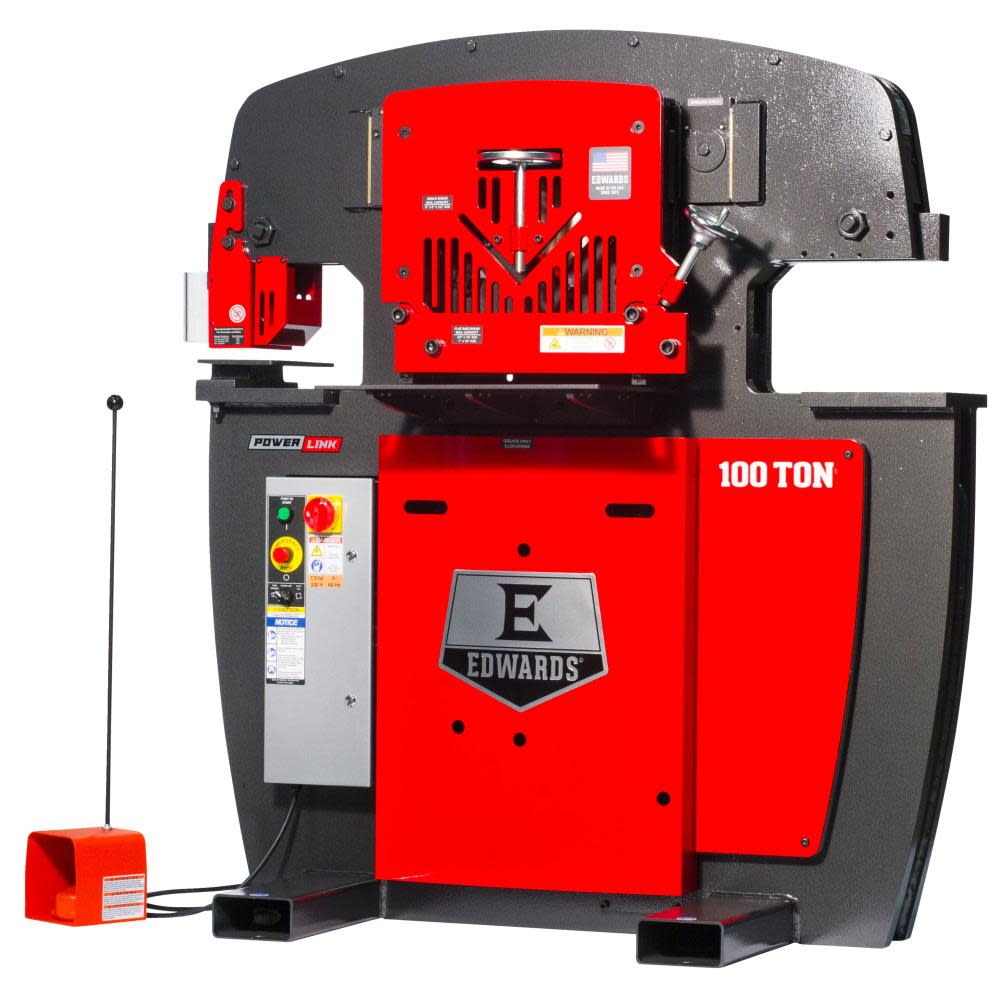

100 Ton Ironworker 3 Phase, 230v with PowerLink System
If you’re looking for versatility and power, the Edwards 100 ton jaws ironworker is perfect for your shop. Standard features include a punch assembly, a 14 In. wide flat bar shear, a high capacity angle shear and a universal open tooling station designed for optional tooling accessories allowing you to select the perfect tool for your needs. The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
The workhorse
Four workstations: standard (4) – punch, flat bar shear, angle shear & coper notcher
10 interchangeable attachments available to tailor the ironworker to your project
ANSI B11.5 – 1988(02) compliant guarding
ETL/UL approved controls
Integrated e-stop, lock-out/tag-out
Optimized workstation heights for improved efficiency
Electric foot pedals with integrated jog control
Adjustable electric stoke control
Specifications
Acme Tools Brand Name
EDWARDS
Acme Tools Part Number
IW100-3P230-AC600
Amperage (A)
22.0
ANSI Safety Listing
Yes
Assembled Weight (lbs)
4557.0
California Proposition 65 Warning Required
Yes
Color / Finish
Gray with Red guards
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
7.5
Internet Product Code (IPC)
6EA1CADE1DD
Manufacturer Warranty
1 Year
Maximum RPM
1765
Motor Horsepower (hp)
7.5
Motor Voltage (V)
230.0
Overall Height (in)
67.0
Overall Length (in)
46.0
Overall Width (in)
69.0
Package Depth
46
Package Height
67
Package Weight
4650
Package Weight (lbs)
4650
Reservoir Capacity (gal)
17.0
UL Listed
Yes
Voltage
230
Weight (lbs)
4557.0
