Description
10 in. Tile Saw DC 38″

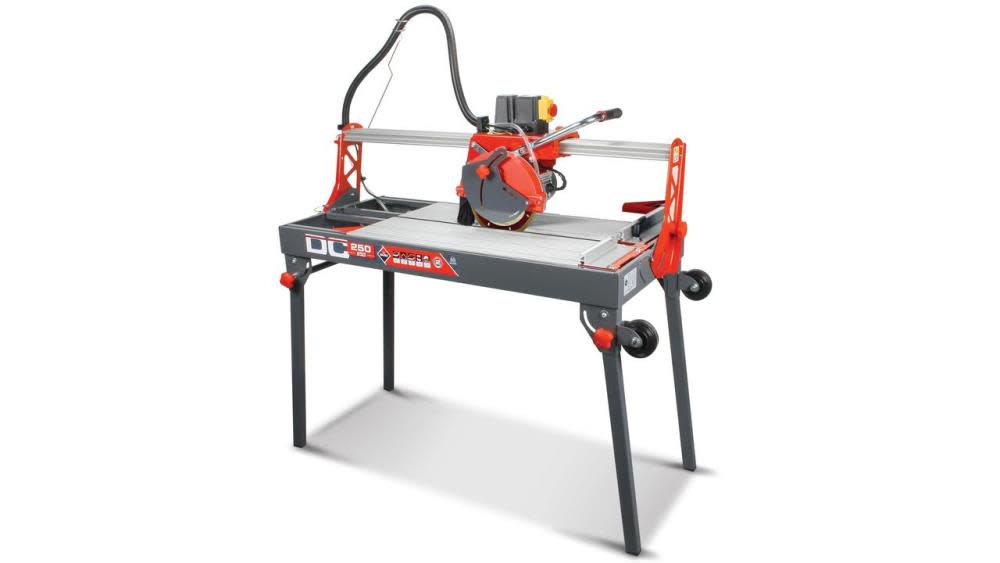

The Rubi DC-250 850 is a professional 1.5 HP tile saw that has a brand new precision moving head and rail system. Ideal for large formats of ceramic, porcelain, marble, glass, stone and other materials. Plunge cut and miter cut. This wet saw features 38 In. straight rip capacity and 27 In. diagonal rip capacity. At only 120 Lb., this professional tile saw can be transported to and around the jobsite by only one person using the wheels for transportation. Extruded aluminum tables, removable for easy cleaning of the machine. It includes a premium 10 In. blade (5/8 In. arbor) and cable. 2 years warranty.
Features
For large formats of porcelain, ceramic, stoneware, marble and other materials up to 38 In. tiles
Light and easy to transport wet saw
Aluminum guide adjustable from 0 to 60°
Powerful 1.5 HP motor
Mobile head cutter of maximum functionality
Head height adjustment allowing to adjust the cutting height
Single phase motor and direct transmission, 1.1 kW (1.5 HP) with thermal protector
Water pump cooling blade with flow control
Chassis of great structural rigidity
Power: 1.5 HP. 2790 RPM
Voltage: 120 V – 60 Hz USA
Rubi is strictly committed to the safety of professional tile installers that’s why Rubi has developed the zero dust system as part of the dust free working program the zero dust system reduces the amount of breathable quartz dust particles, providing a clean and safe working environment
Specifications
Acme Tools Brand Name
RUBI TOOLS
Acme Tools Part Number
54924
Amperage (A)
15
Arbor Size (in)
0.625
Assembled Weight (lbs)
120
Bevel Angle (Deg)
45
Beveling Capability
Yes
Blade Diameter (in)
10
California Proposition 65 Warning Required
No
Color / Finish
Red and grey
Cord Length (ft)
10
Cordless / Corded
Corded
Country of Origin
Spain
CSA Certified
Yes
Cuts Ceramic
Yes
Cuts Natural Stone
Yes
Cuts Porcelain
Yes
Depth (in)
45
Diameter
10 in
Electric Motor Brake
No
ETL Listed
Yes
Height (in)
40
Horsepower (hp)
Universal Motor
Integrated Laser Guide
No
Internal Supplier Part #
54924
Internet Product Code (IPC)
B761DF1D526
Manufacturer Warranty
2 years
Material
Aluminum
Maximum RPM
2790
Maximum Tile Cut Size Diagonal
27
Maximum Tile Cut Size Rip
38
Package Contents
Saw, 10In. blade and manual.
Package Weight
154
Package Weight (lbs)
154
Reservoir Capacity (gal)
15
Reservoir Material
Steel
Size
0.625 in
Sliding
Yes
Stand Color
Grey
Stand Included
Yes
Stand Material
Steel
Table Material
Aluminum
UL Listed
Yes
Voltage
120
Voltage (V)
120
Water Pump
Yes
Weight (lbs)
120
Width (in)
20
