10 In. Dual-Bevel Glide Miter Saw
1 × $111.32
10 In. Dual-Bevel Glide Miter Saw Subtotal: $111.32
Description

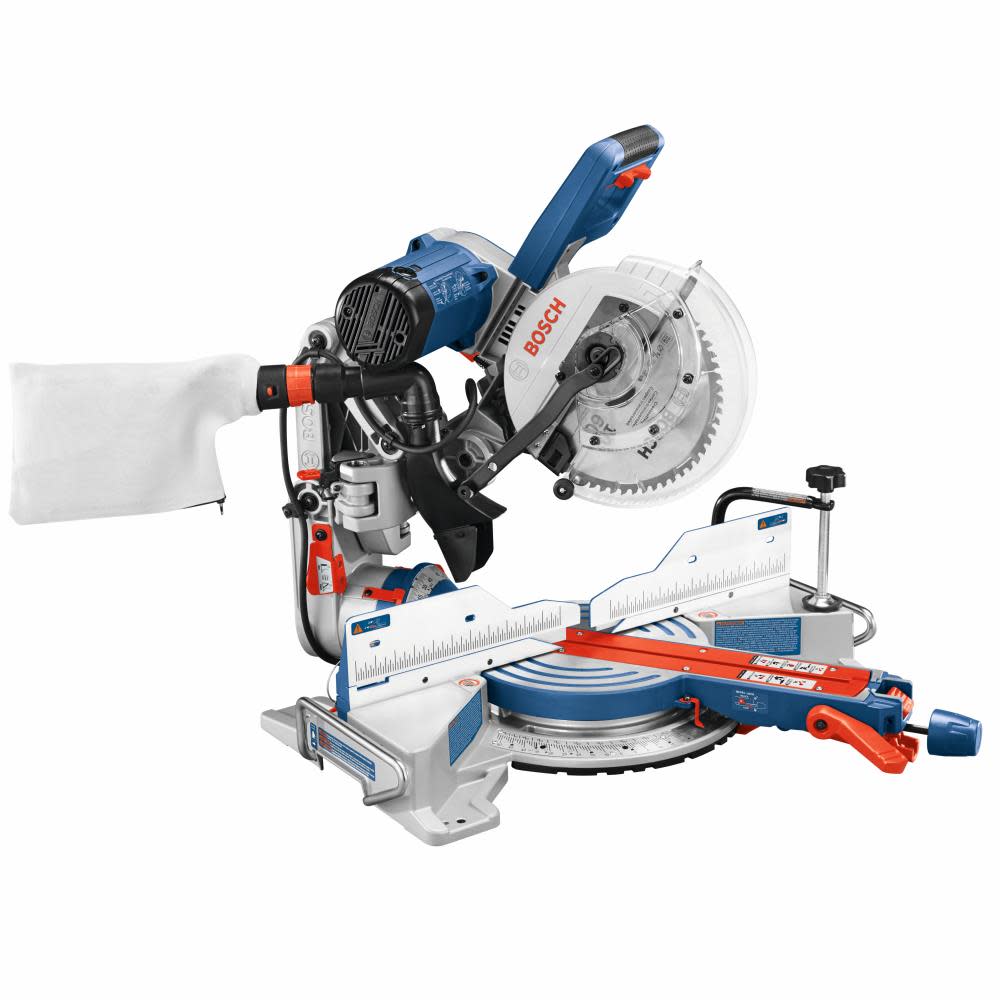

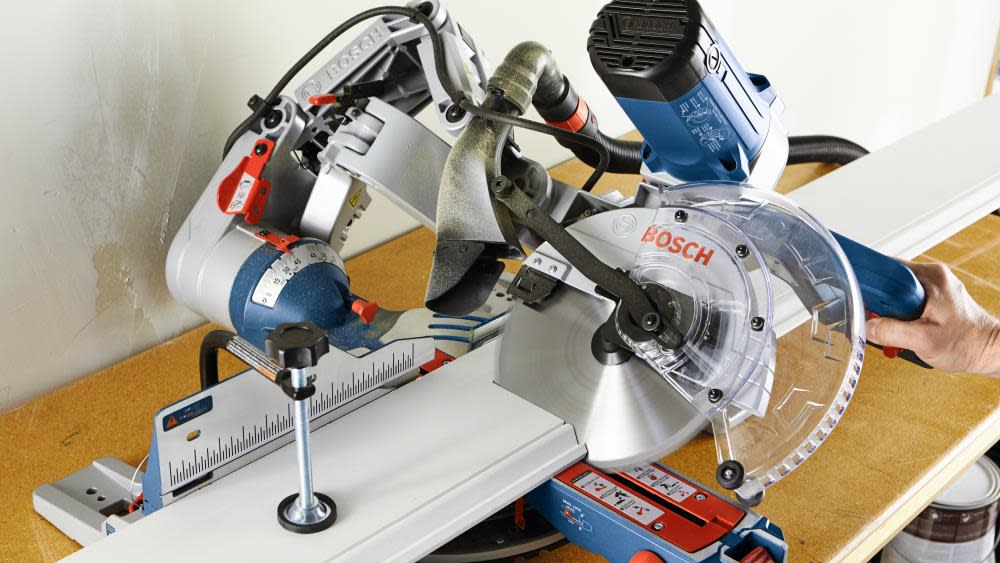

10 In. Dual-Bevel Glide Miter Saw

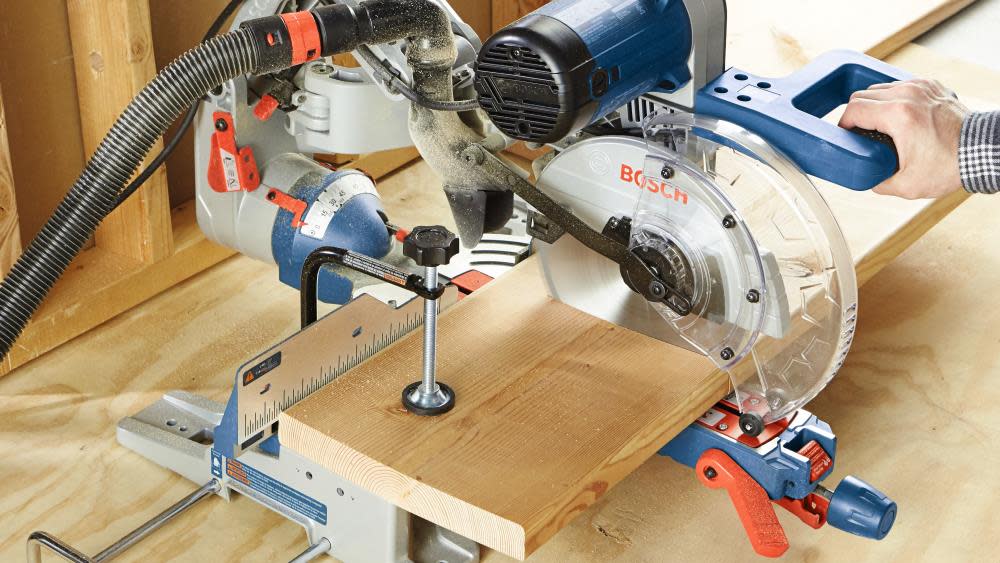

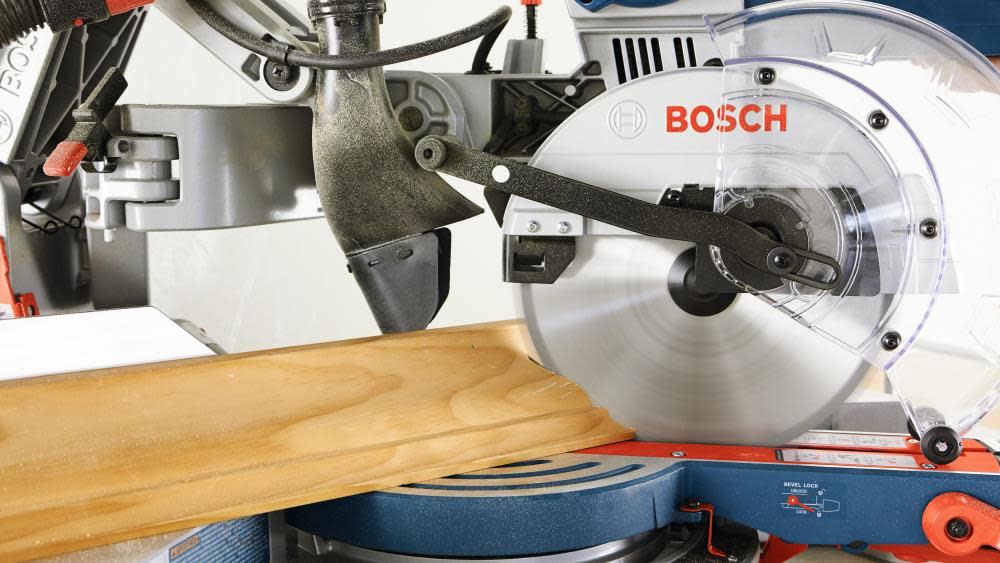

The 10-Inch Dual-Bevel Glide Miter Saw from BOSCH quickly cuts lumber and trim to the size and angle you need. It has a 15-Amp motor that runs at a top no-load speed of 4,800 rpm for fast task completion. This Bosch 10-inch dual-bevel glide miter saw has a hinged arm on the Axial-Glide™ system, so you need less space than regular-sized models to set it up. The bevel can swing 47 degrees both left and right with positive stops for the most commonly used angles making it easier to set up the Bosch compound miter saw without having to measure every time. This saw can cut 12 inches horizontally and up to 6 inches vertically for cutting through thicker pieces. The lock lever and range selector are at the front of the tool for easier adjustment. The miter automatically stops at various degrees and has an override button for fine details. Its ergonomic grip makes it comfortable to use.
Features

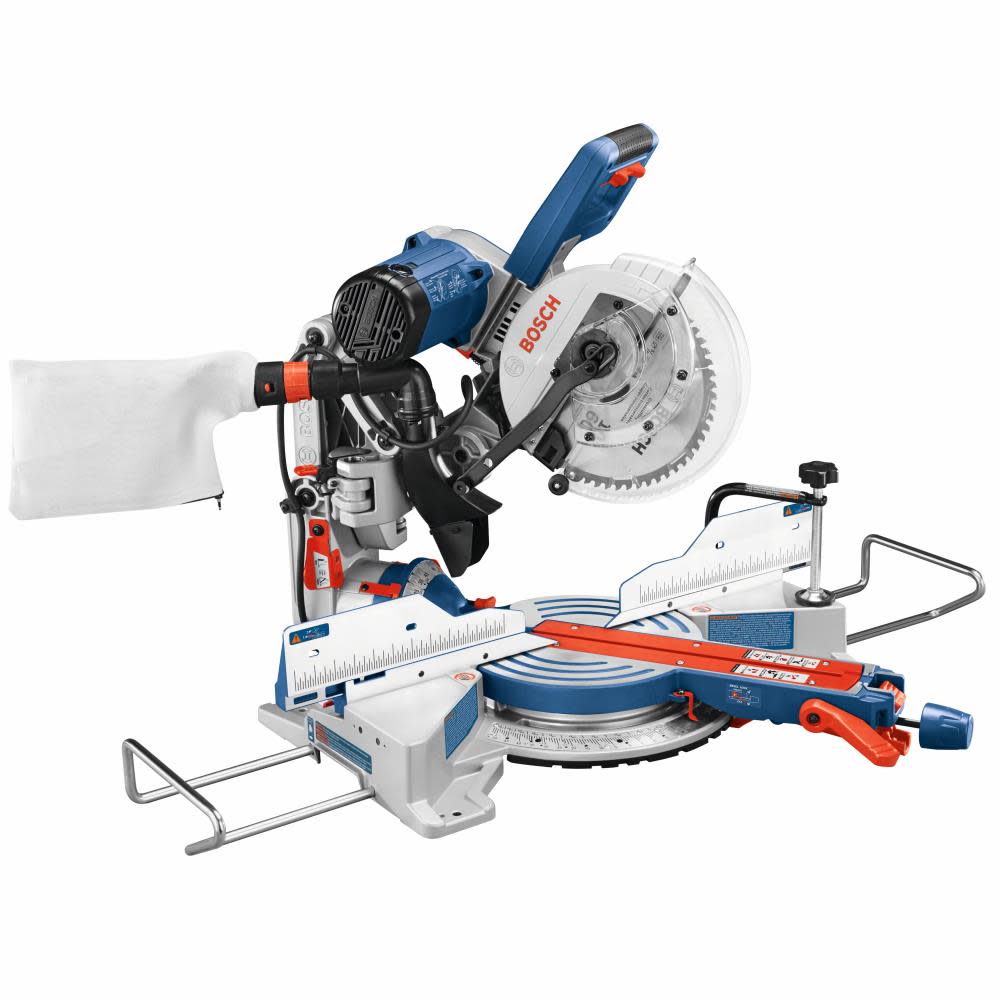

Bosch 10-inch dual-bevel glide miter saw comes with wrench, clamp, dust bag, vacuum adapter and 60-tooth carbide blade
15-Amp motor delivers a maximum speed of 4,800 rpm

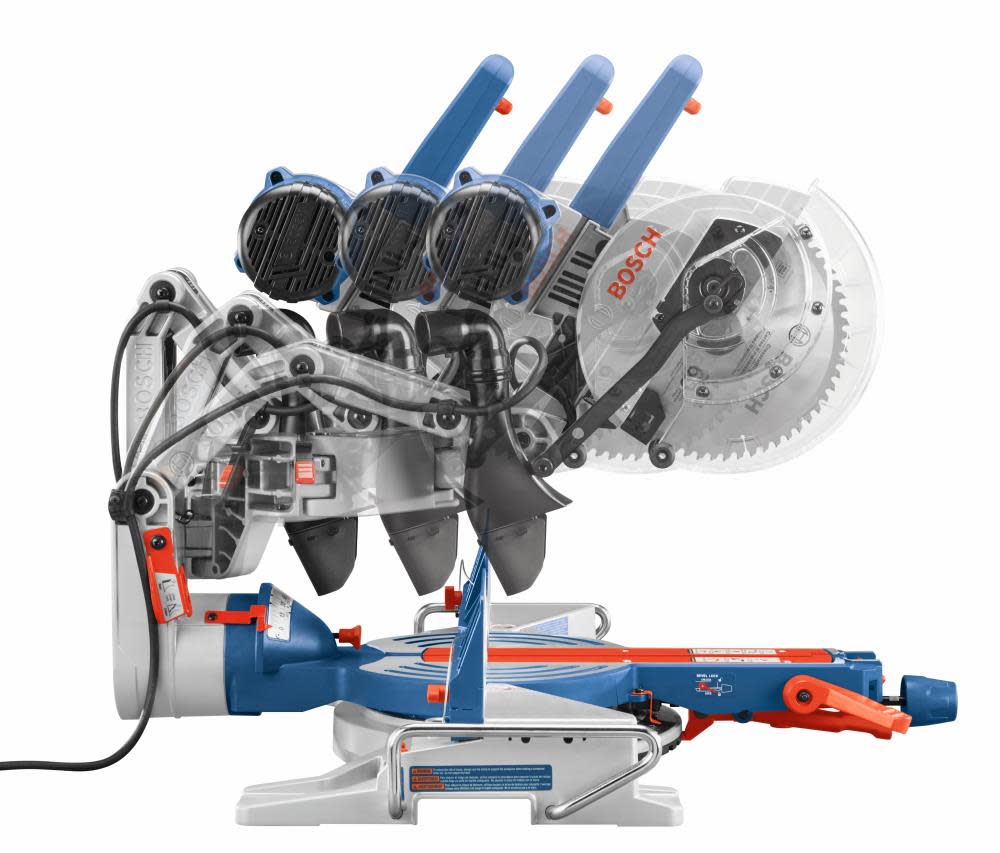

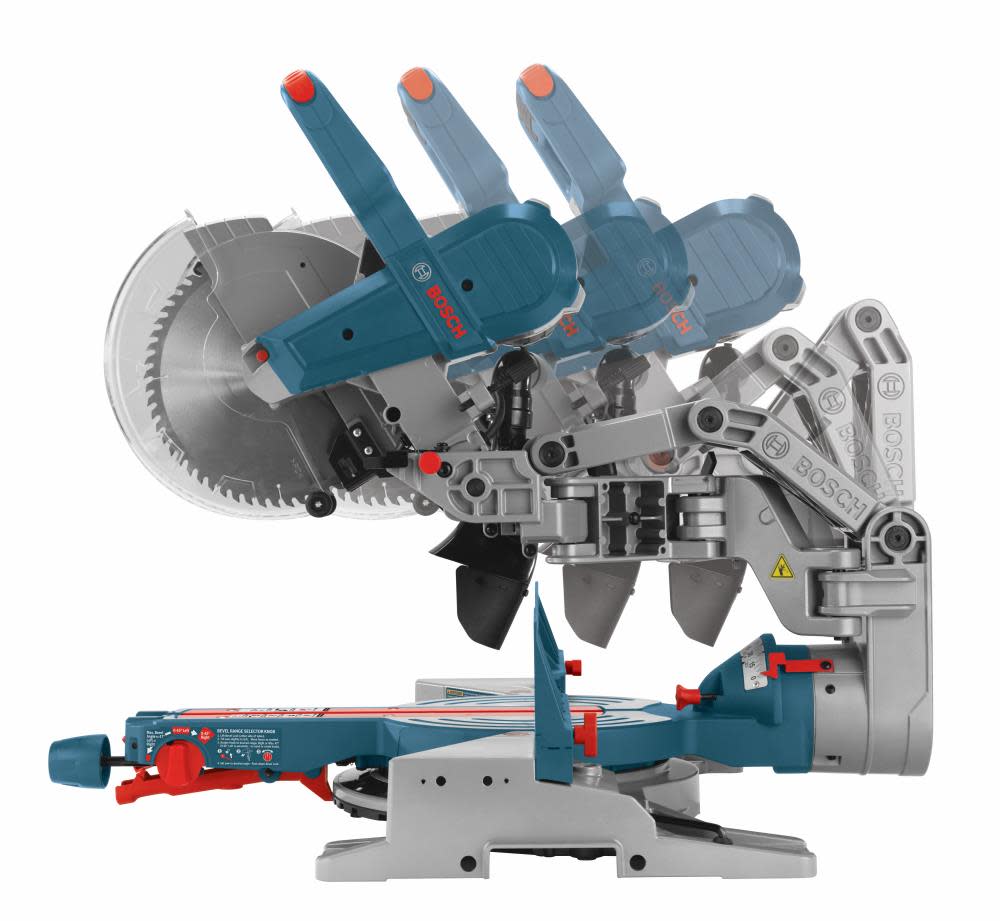

Bosch sliding miter saw’s Axial Glide hinged arm reduce the space required to set it up
Bevel swings out 47 degrees in either direction
Bosch miter saw has stops at 0, 39.5 and 45 degrees in either direction
Maximum cutting depth of 6 inches vertical and 12 inches horizontal

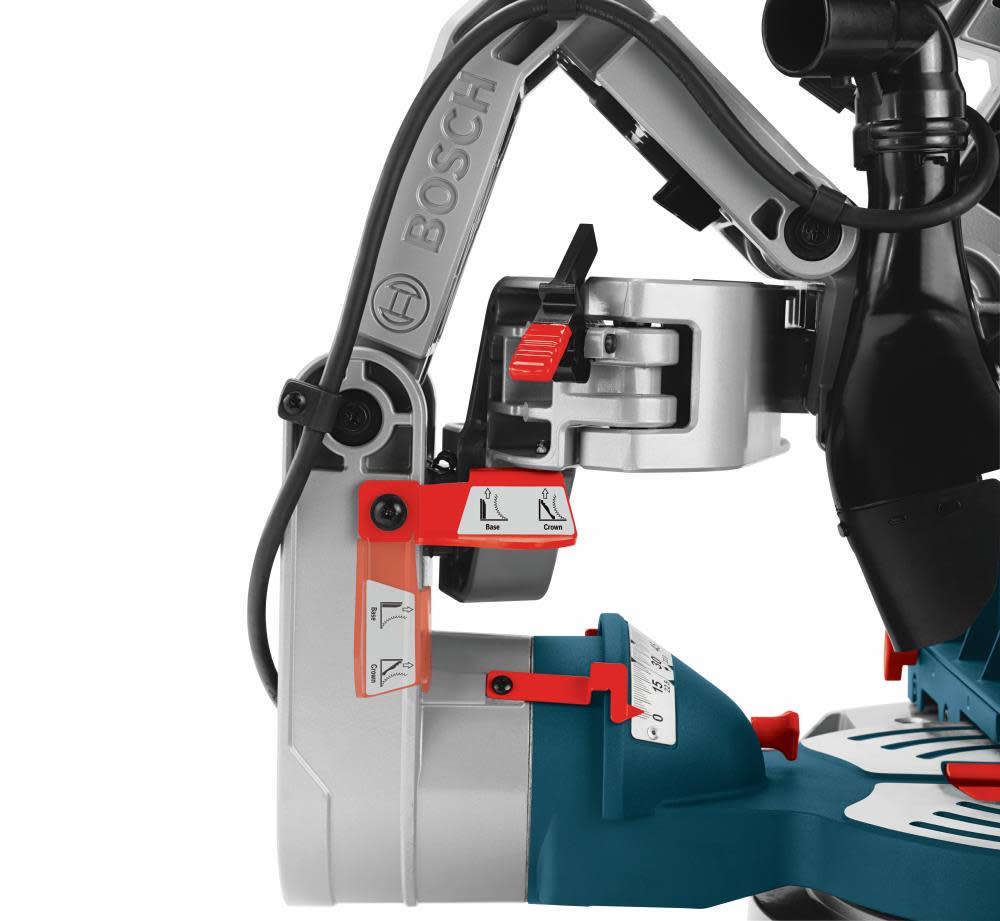

Front-facing range selector and lock lever are easy to adjust
Miter detents set at seven commonly used degrees allow for faster cut setup
Miter override allows for fine tuning
Specifications
Acme Tools Brand Name
BOSCH
Acme Tools Part Number
CM10GD
Amperage (A)
15
Arbor Size (in)
0.625
Assembled Weight (lbs)
64.0
Blade Wrench Included
Yes – Stored on Tool
Blades Included
1
California Proposition 65 Warning Required
No
Color / Finish
Blue/ Silver
Cord Length (ft)
6
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
No
Diameter
10 in
Dust Collection
Yes
Dust Port
Yes
Electronic Speed Control
No
ETL Listed
No
Fence Type
Sliding
Height (in)
20.5
Horsepower (hp)
Universal Motor
Integrated Laser Guide
No
Integrated Work Light
Not Featured
Internal Supplier Part #
0601B27010
Internet Product Code (IPC)
BD916CE4077
Keyless / Keyed Blade Change
Keyed
Length (in)
32
Manufacturer Warranty
Limited 1 Year
Miter Saw Type
Sliding Compound Miter
Motor Horsepower (hp)
0
Net Tool Weight (lbs)
64
Package Depth
29.75
Package Height
24.25
Package Weight
72
Package Weight (lbs)
79.34
Quick Release Vise
No
Saw Blade Diameter (in)
10 in
Saw Drive
Belt Drive
Size
0.625 in
Spindle Lock
Yes
Tool-Less Blade Changing
No
UL Listed
Yes
Voltage
120 Volts
Width (in)
26.5
