Description

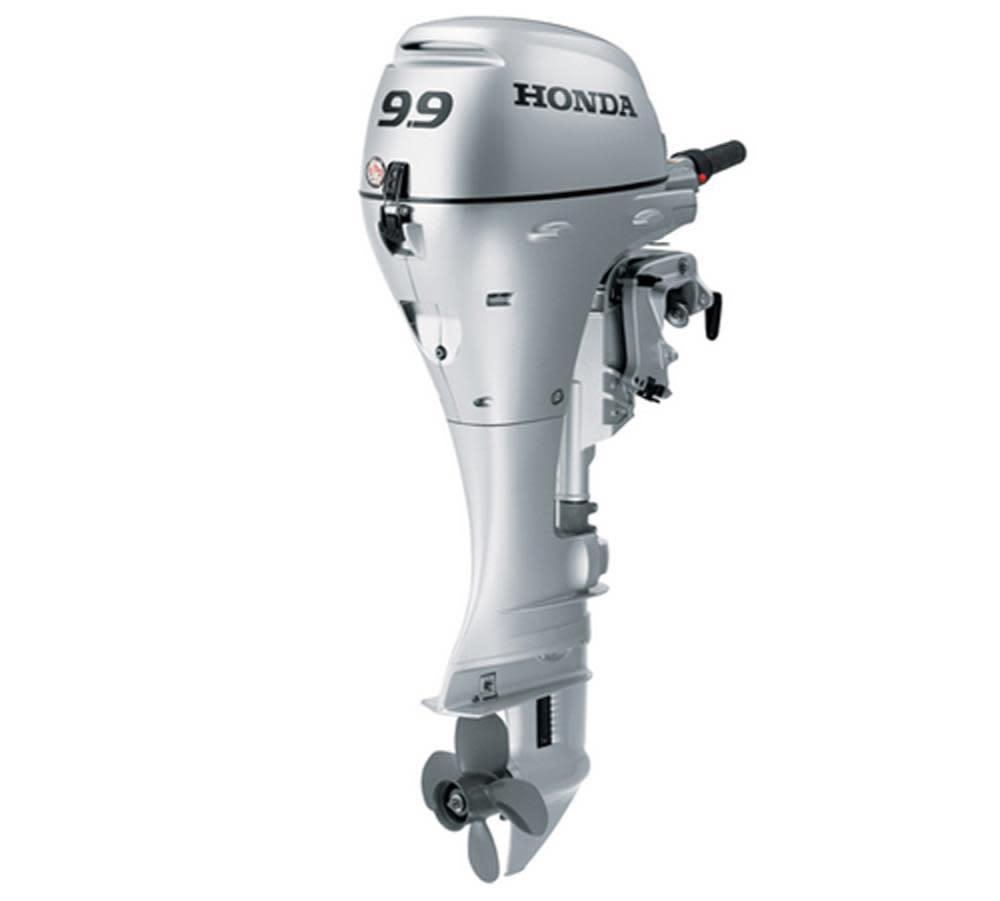

10 HP 4-Stroke Electric Start Outboard Motor with Throttle Grip
The Honda 10 HP electric start twin cylinder OHC portable outboard motor 10 HP 4-stroke electric start outboard motor BFP10D3XHS offers more of what you want. More battery charging power. Easier to use features. Quieter performance. Dependable performance in a portable package. Better reliability. And with Honda’s exclusive true 5 warranty, the best warranty in the business. Add in the optional power thrust design, and youve got an even more powerful and world-known Honda four-stroke motor, with 60% more thrust in reverse and 15% more in forward.
Features
Reliable, efficient 4-stroke design
World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing
More power – without sacrificing portability
Working together, a built-in decompression release and digital CDI system set the ignition timing during start-up
Ultra low 3 star CARB emissions
4-Front corrosion protection system – fights the elements
Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection
Available with power thrust design (BFP) – better performance for heavy loads
The combination of the 2.33:1 gear ratio and the 10 In. x 6-1/2 In. power thrust 4-blade propeller creates 60% more thrust in reverse and 15% more in forward, result is improved maneuverability and performance
A convenient longer tiller handle improves control and reduced steering effort
Power tilt conveniently tilts the engine out of the water for easy lift-off and transport
A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range to provide optimum overall operation
The integrated warning system protects the engine from severe damage due to low oil, over-revving and overheating
Best in class high output charging
Lightweight rounded design
Auto start enrichment acts as an automatic choke
Honda’s exclusive triangulated rubber mount system absorbs vibration and provides unbelievably smooth operation
A unique lever design allows you to precisely adjust steering tension for improved control and comfort
An innovative shallow water drive feature lets you tilt the motor up, allowing you to easily operate in shallow areas
The convenient front-mounted shift lever allows fingertip shifting

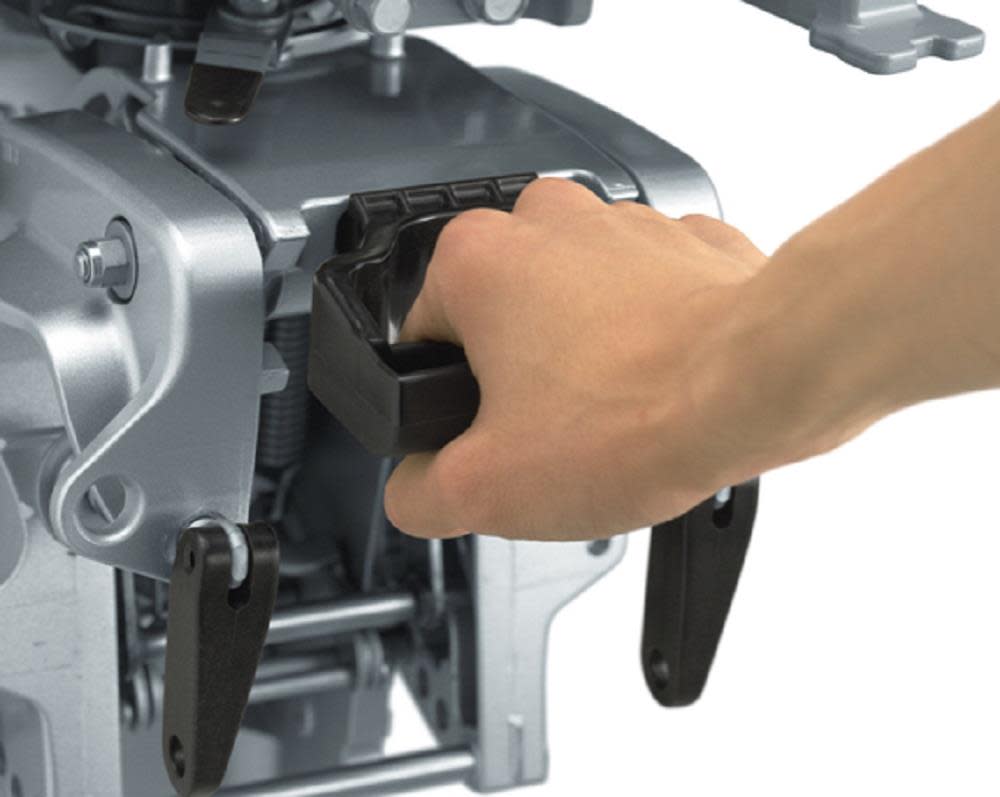

A integrated carrying handle makes transporting the engine a breeze
Specifications
Acme Tools Brand Name
HONDA MARINE
Acme Tools Part Number
BFP10D3XHS
Assembled Weight (lbs)
98
Bore Diameter (in)
2.3
California Proposition 65 Warning Required
Yes
Capacity
Fuel: 3.2 Gal
CARB Compliant
Yes
Color
Silver
Color / Finish
Silver double sealed multi-layered paint process, sacrificial anodes, stainless steel technology, and waterproof connectors enhance corrosion protection.
Country of Origin
Japan
Cylinder Count
2
Dry Weight (lbs)
98
Engine Displacement (in³)
13.5
Engine Oil Capacity (qt)
1.4
Engine Starting Method
Recoil
Fuel Tank Capacity (gal)
3.2
Gear Ratio
2.33:1
Horsepower (hp)
10
Installation Hardware Included
No
Installation Instructions Included
Yes
Internal Supplier Part #
BFP10D3XHS
Internet Product Code (IPC)
D36A85BB90C
Manufacturer Warranty
5 Year Limited Manufacturers Warranty. See Owner’s Manual for Details.
Model Year
2015
Overall Height (in)
0
Overall Length (in)
19.5
Overall Width (in)
13.6
Package Contents
Installation Instructions
Package Weight
98
Package Weight (lbs)
98
Shaft Length (in)
25
Stroke Length (in)
1.7
