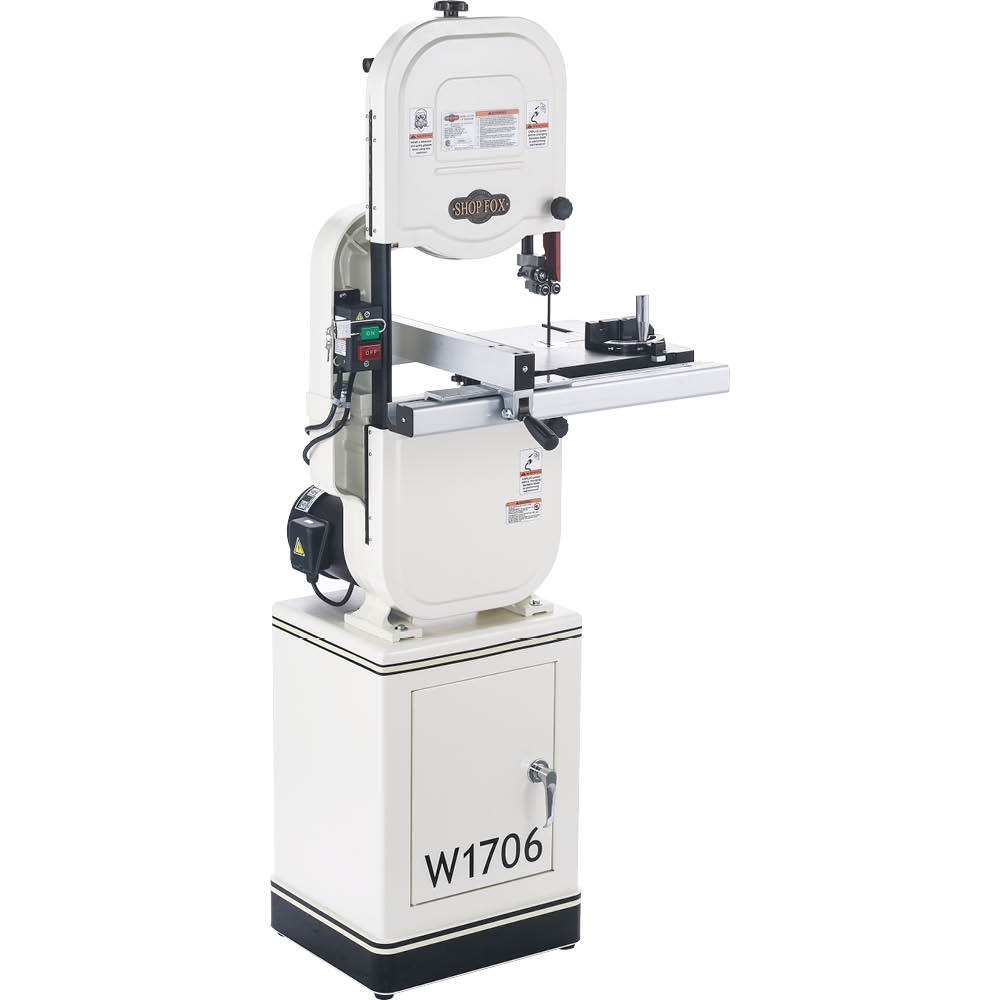

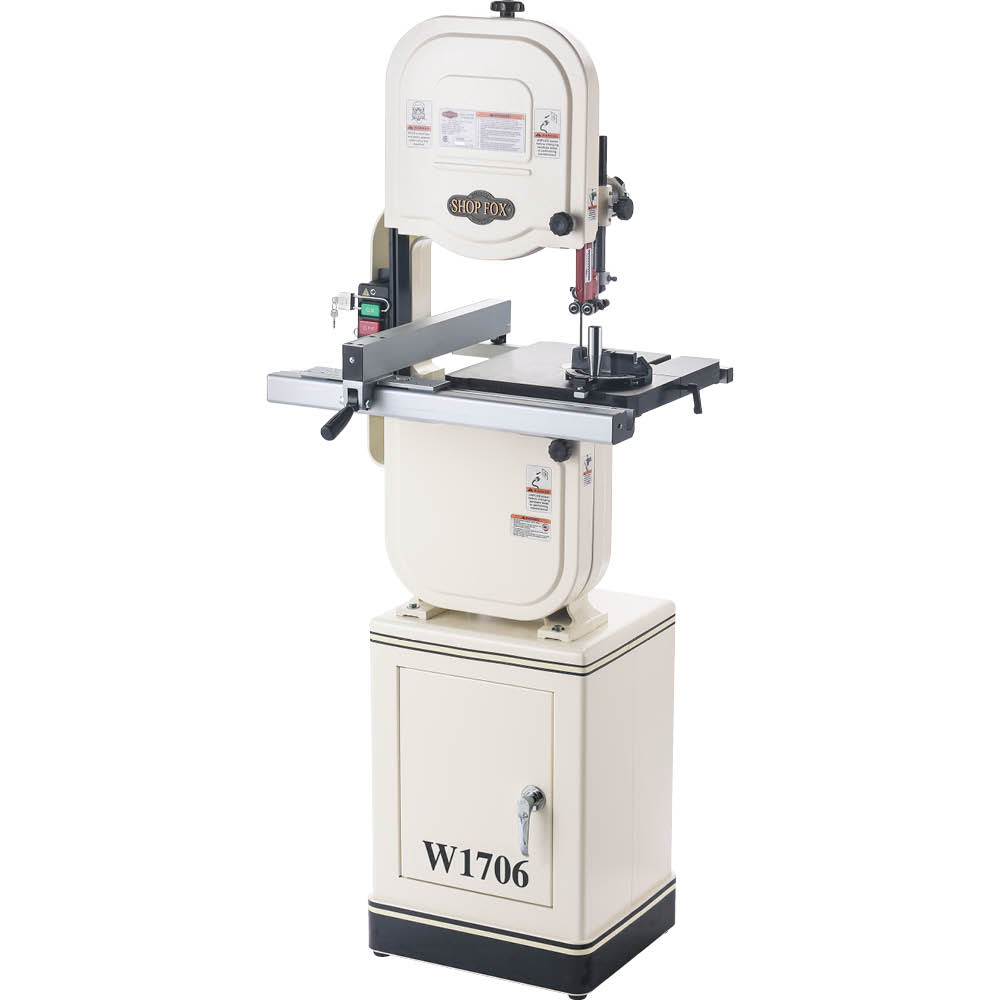

1 HP 14″ Bandsaw
We took the most popular bandsaw size and added many features found only on much larger and more expensive machines. Features such as extruded-aluminum fence and rails, quick-release blade tension, miter gauge, upper and lower ball bearing blade guides, enclosed cabinet stand, hinged wheel covers, 4″ dust port, and a 1 HP motor are all standard. And, with its cast -iron frame and table, this bandsaw will be a reliable shop fixture for many years to come. An optional 6″ extension block kit (D3348) is also available. CSA certified meeting CSA and UL standards!
Features
Motor: 1 HP, 110V/220V, prewired 110V, single-phase, TEFC, 1725 RPM, 11A/5.5A
Blade size: 93-1/2″ (1/8″ to 3/4″ wide)
Precision-ground cast-iron table size: 14″ x 14″ x 1-1/2″
Cutting capacity (throat): 13-1/2″
Max. cutting height: 6″
Table height above floor: 43″
Blade speeds: 1800 & 3100 FPM
Cast-iron frame and wheels
Table tilt: 45° right, 10° left
Specifications
Acme Tools Brand Name
SHOP FOX
Acme Tools Part Number
W1706
Amperage (A)
11
Assembled Weight (lbs)
275
California Proposition 65 Warning Required
Yes
Cordless / Corded
Corded
Country of Origin
Taiwan
Horsepower (hp)
1
Maximum Blade Length (In)
93.5
Package Contents
Bandsaw
Package Depth
45.50
Package Height
18.50
Package Weight
276
Package Weight (lbs)
276
Saw Type
Stationary
