Description

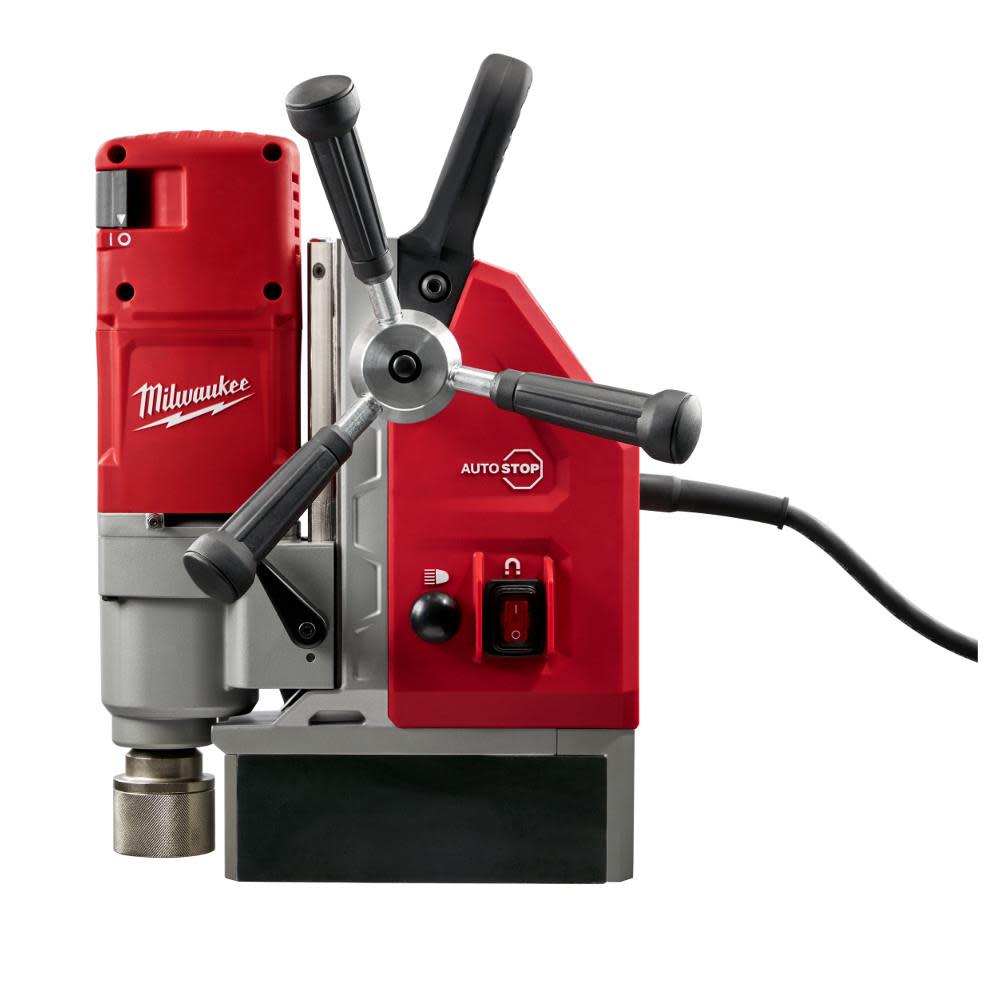

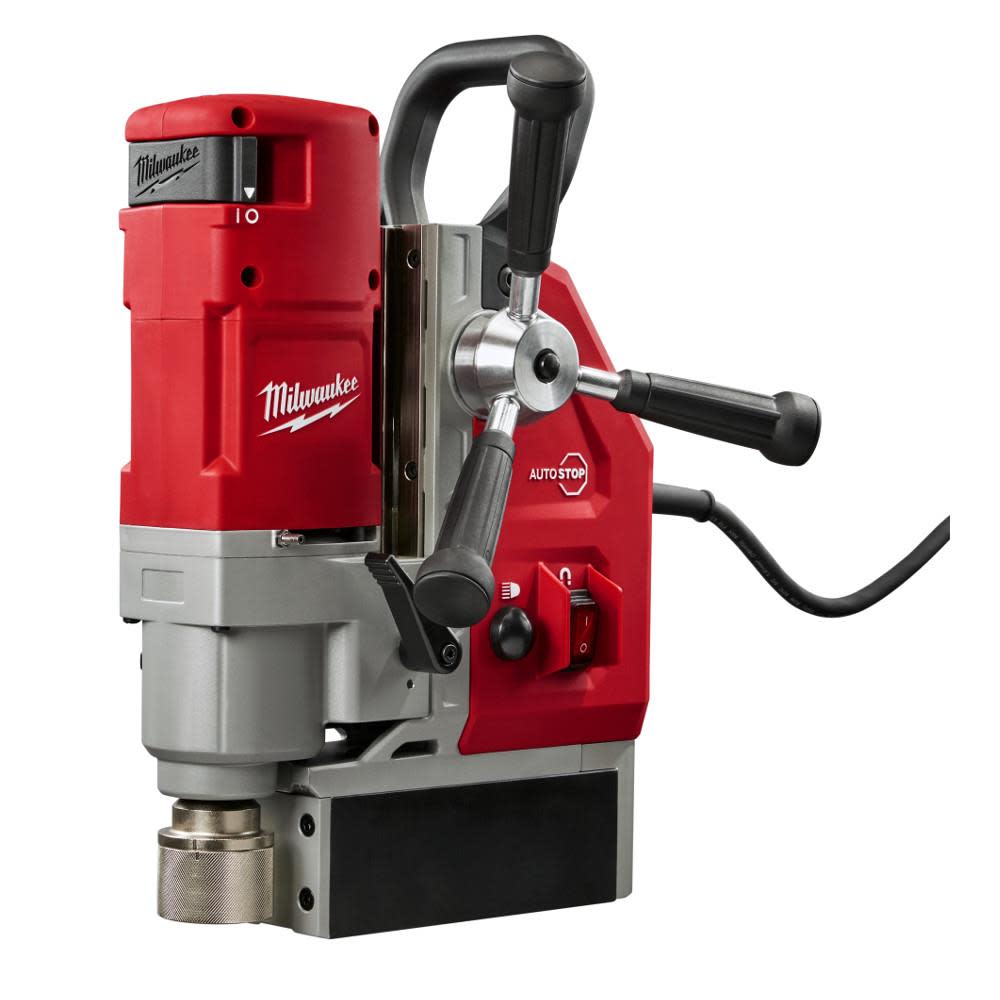

1-5/8 In. Electromagnetic Drill Kit
The Milwaukee 1-5/8 In. electromagnetic drill will deliver faster set-up, cutting and drilling. It’s 13 amp motor delivers the fastest drilling w/ annular cutters or twist drill bits. Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters at 475 RPM and twist drill bits at 730 RPM.
Features
Powerful 13 Amp motor
Tool free adjustment: cutter to twist bit
Optimized cutting & drilling speeds
Tool free motor head adjustment
3/4 In. Weldon quick change Arbor
2 Speed gear box: 475/730 RPM
Auto-stop lift-off detection
Tool free feed-handle
LED light
stroke length 5 3-4 inch
Tool free feed-handle LED light
Auto stop lift-off detection
3/4″ Weldon Quick Change Arbor
2 Speed gear box 475/730 RPM
Specifications
Acme Tools Brand Name
MILWAUKEE
Acme Tools Part Number
4272-21
Amperage (A)
13.0
Assembled Weight (lbs)
30
California Proposition 65 Warning Required
No
Chuck Capacity
3/4 IN Weldon
Chuck Design
Keyless
Chuck Key Storage
No
Color / Finish
Red/Black
Cordless / Corded
Corded
Country of Origin
China
CSA Certified
Yes
Drill Press Type
Portable
ETL Listed
Yes
Height (in)
15.5
Integrated Laser Guide
No
Internal Supplier Part #
4272-21
Internet Product Code (IPC)
C267111631E
Length (in)
11.25
Manufacturer Warranty
5 Years
Material
Steel
Net Tool Weight (lbs)
30.0
Package Depth
28.0
Package Height
8.5
Package Weight
48.0
Package Weight (lbs)
46.1
Speed Range High (rpm)
730.000000
Speed Range Low (rpm)
470.000000
Speeds
2
Spindle Travel (in)
5.750000
Table Material
Steel
UL Listed
Yes
Voltage
120 Volts
Width (in)
7.5
