Description

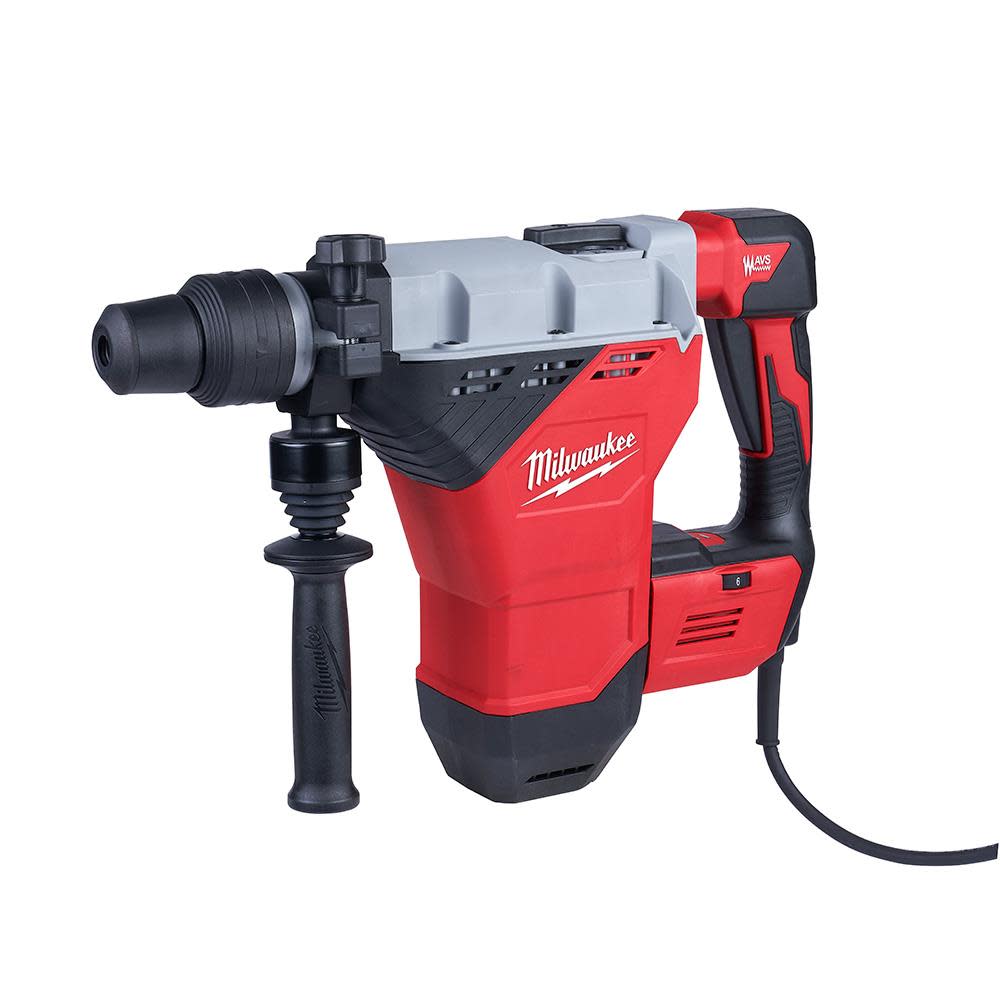

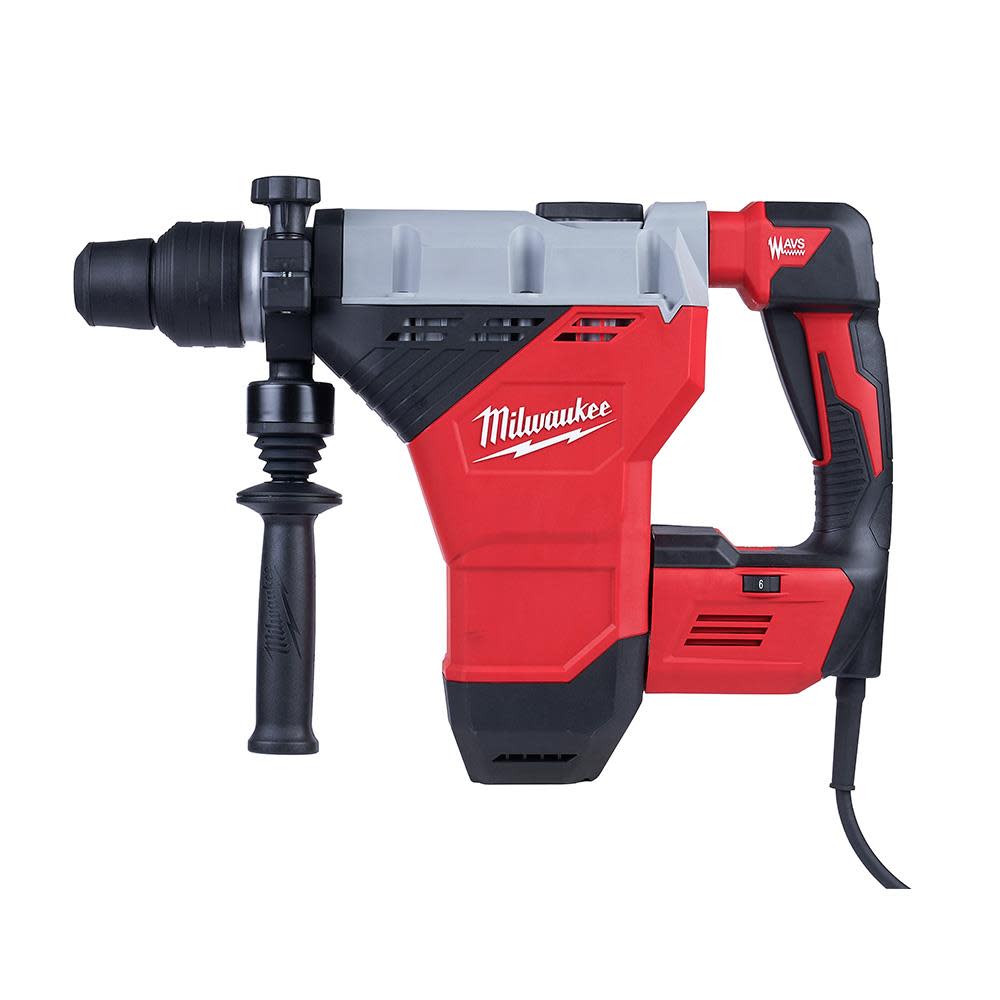

1-3/4 in. SDS-Max Rotary Hammer
The Milwaukee 1-3/4 in. SDS-max rotary hammer has a powerful 15 Amp motor. This hammer delivers 8.1 ft-lbs of impact energy for the most demanding applications. The AUTOSTOP™ E-Clutch prevents over rotation of the tool in case of tool lock up. This feature gives the user a safer experience. The variable speed dial allows the user to set the optimal speed per application. With two modes: rotary hammer and hammer only, the user can drill large holes or do any chipping applications. When chipping, there is a lock-on button that allows the user to chip without constantly pulling the trigger. Finally, with advanced AVS (anti-vibration system), the user will feel much less vibration when using the tool.
Features
Powerful 15 Amp motor
AUTOSTOP™E-Clutch for user protection
Built to last in the toughest applications
8.1 Ft-lbs impact energy
Variable speed dial
Advanced AVS anti-vibration system
2 Mode: rotary hammer and hammer only
Lock-on button
380 RPM
10 m/S² vibration
Specifications
Acme Tools Brand Name
MILWAUKEE
Acme Tools Part Number
5546-21
Amperage (A)
15
Assembled Weight (lbs)
21.65
California Proposition 65 Warning Required
No
Chisel Lock Positions
No
Chuck Capacity
1.75
Chuck Design
Keyless
Chuck Size
SDS-Max
Color / Finish
Red/Black
Cord Length (ft)
16.4
Cordless / Corded
Corded
Core Bit Capacity (in)
1.75
Country of Origin
China
CSA Certified
No
Electronic Speed Control
Yes
ETL Listed
No
Handle Type
D-Handle
Height (in)
13.4
Impact Energy
2900 BPM
Internal Supplier Part #
554621
Internet Product Code (IPC)
33D0FF95A06
Length (in)
18.5
Manufacturer Warranty
5 Years
Material
Reinforced Nylon
Maximum Concrete Cutting Capacity (in)
1.75
Maximum Metal Cutting Capacity (in)
1.75
Maximum RPM
380
Maximum Wood Cutting Capacity (in)
1.75
Net Tool Weight (lbs)
21.65
Package Contents
(1) 1-3/4″ SDS-Max Hammer, (1) Side Handle, (1) Grease Tube
Package Depth
26.0
Package Height
7.3
Package Weight
36.2
Package Weight (lbs)
26.29
Powered Tool Power Source
Electric – Corded
Product Storage Included
No Case Included
Reverse
Yes
Side Handle
Yes
Thin Wall Core Bit Capacity
No
Thru-Hole Capacity (in)
1.75
Type of Modes
Rotary Hammer, Hammer Only
UL Listed
Yes
Variable Speed
Yes
Voltage
120
Voltage (V)
120
Width (in)
4.5
